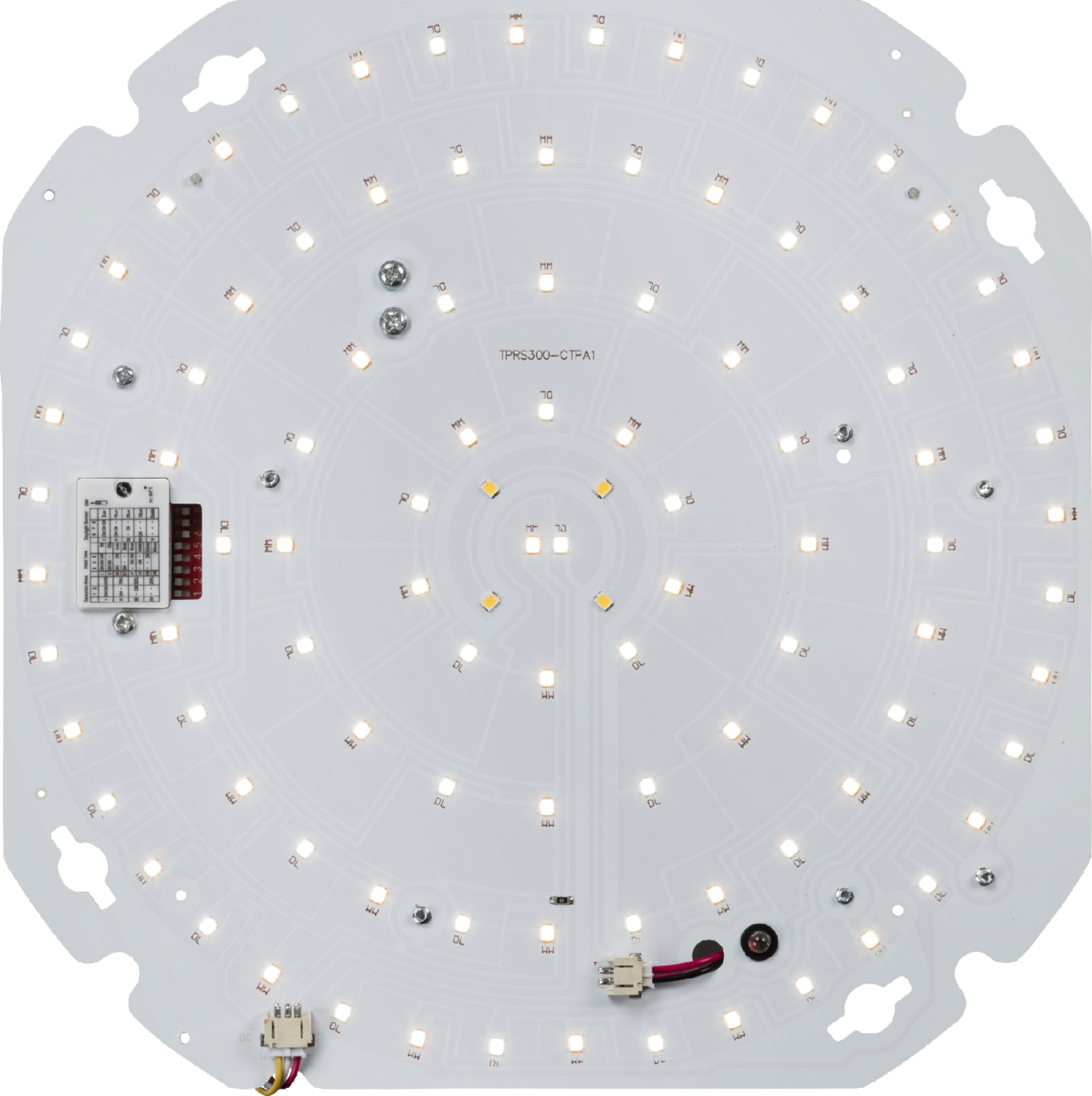

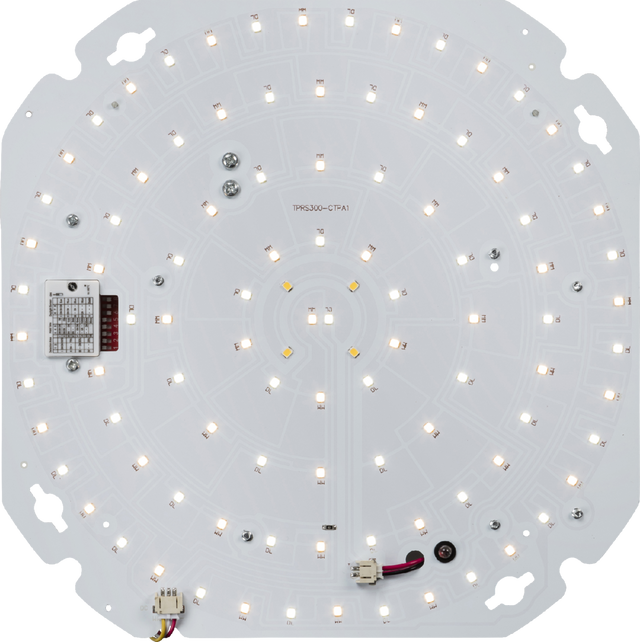

Knightsbridge: TNXTMWEM, Emergency LED Gear Tray, 10/15/20W Adjustable, Microwave Sensor, 230V
About this product
The TENAX 230V Wattage and CCT Adjustable Emergency LED Gear Tray with Sensor is designed for versatility and ease of installation.
- Adjustable wattage settings: Choose between 10W, 15W, or 20W.
- Colour temperature options: Switch between 3000K, 4000K, and 5700K.
- Features a built-in microwave sensor for detection area, daylight levels, and hold time adjustments.
- Emergency operation with a Lithium (LiFePO4) battery for up to 3 hours.
- Compatible with a range of Tenax casings.
- Easy push-fit terminal connections.
Note: Casing is not included and must be purchased separately.
Specifications
Dimensions
Lamp
Driver
Luminaire
Photometric
Specifications
Class | II |
---|---|
IP Rating | IP20 |
Construction | Aluminium |
Primary Voltage | 230V 50Hz |

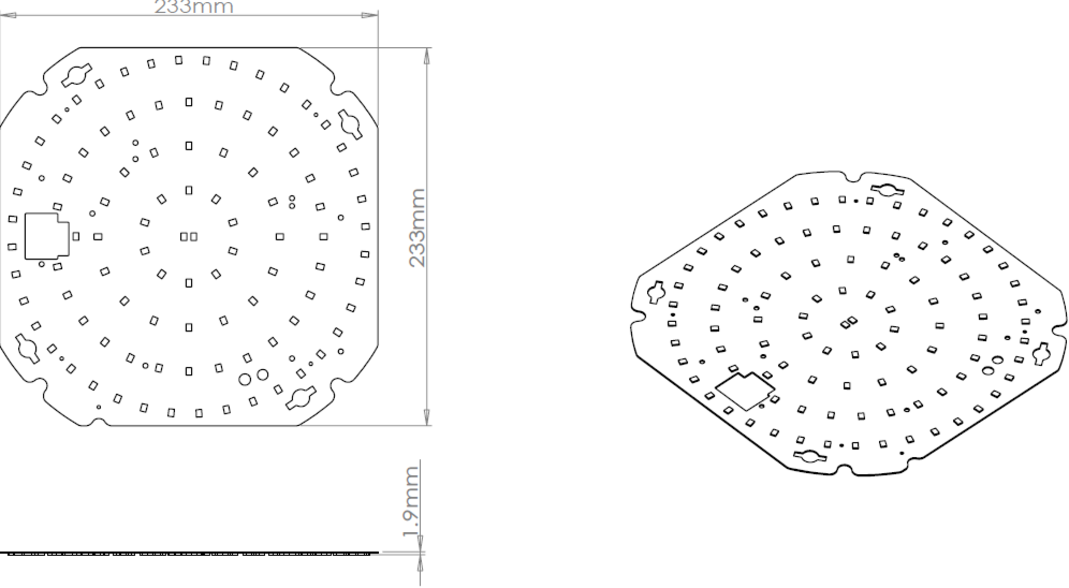

Dimensions
Width | 235 mm |
---|---|
Length | 235 mm |
Projection | 28 mm |
Lamp
L70B50 | 40,000 |
---|---|
Dimmable | No |
Beam Angle | 120 |
Lamp Technology | SMD LED |
Energy Rating (Class) post 2021 SLR | D |
Driver
Driver Type | Constant Current |
---|
Luminaire
Emergency | Maintained / Non-maintained / Switched |
---|
Photometric
CCT | 3000/4000/5700 K |
---|---|
CRI | >85 |
Lumens | 1360/1480/1405, 1905/2090/1960, 2345/2630/2415 lm |
Wattage | 10/15/20 |
Light Colour | CCT |
Lumens (Em. mode) | 125 lm |
Efficacy (Light source) | 151/147/141 lm/W |
TENAX Adjustable LED Gear Tray with Sensor features
