Chord: 173.292UK, Passive Direct Injection Box, 3 Pad Settings, RF Filter, XLRM Output

Product Overview & Key Benefits

ThePassive Direct Injection Boxis an essential tool for music professionals and audiophiles alike, designed to convert high impedance instrument outputs into low impedance line signals. This conversion allows for direct connection to mixing consoles, ensuring optimal sound quality and performance. With features such as three selectable pad settings and options for grounding, this DI box is ideal for a wide range of scenarios, making it perfect for stage performances, studio recordings, and live sound applications.

Technical Specifications & Product Details

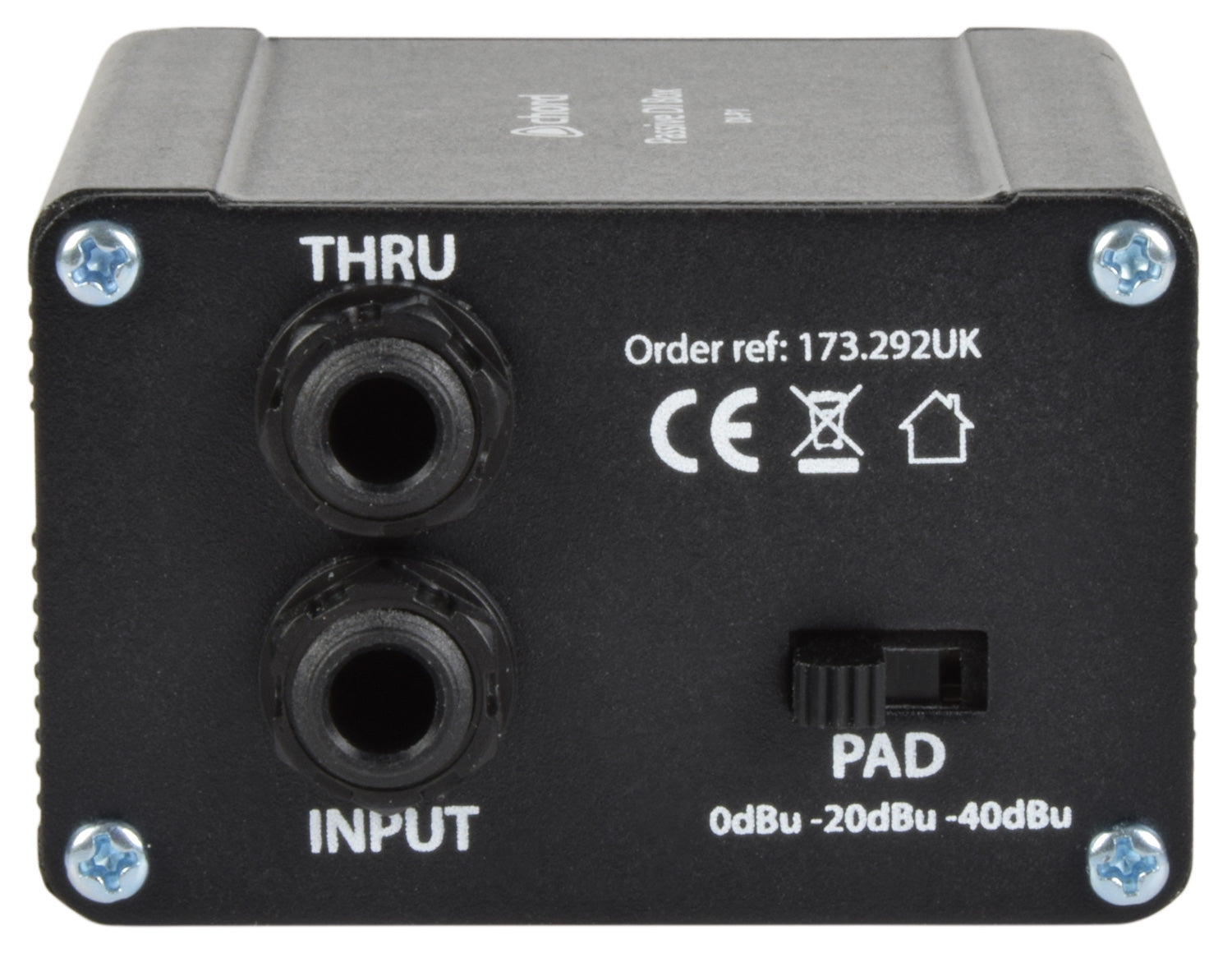

• Input:6.3mm jack (unbalanced)

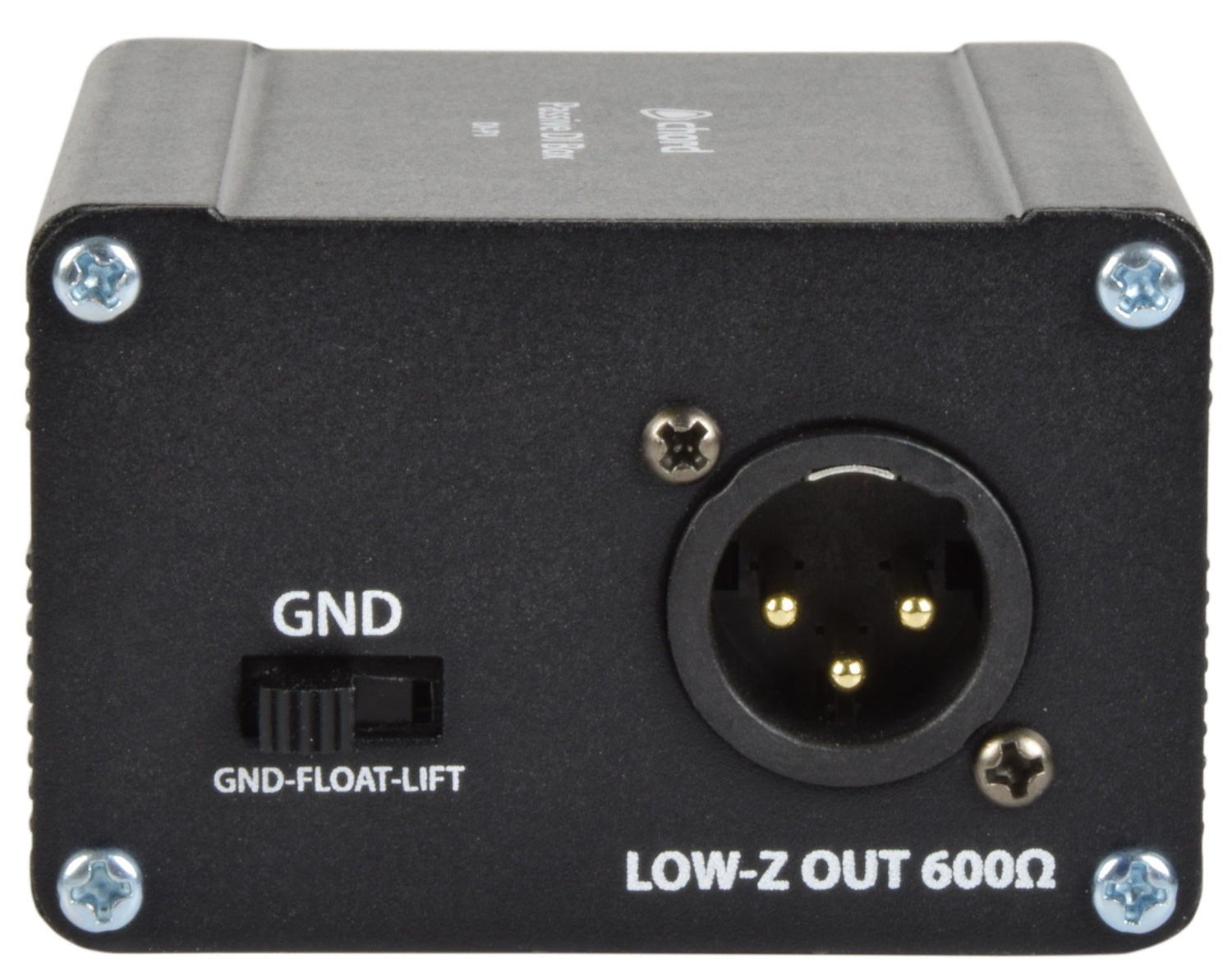

• Outputs:XLRM (balanced), 6.3mm jack through (unbalanced)
• Controls:0/-20/-40dBu pad & Ground-Float-Lift switch
• Input Impedance:>100k Ohms
• Output Impedance:600 Ohms
• Weight:234g

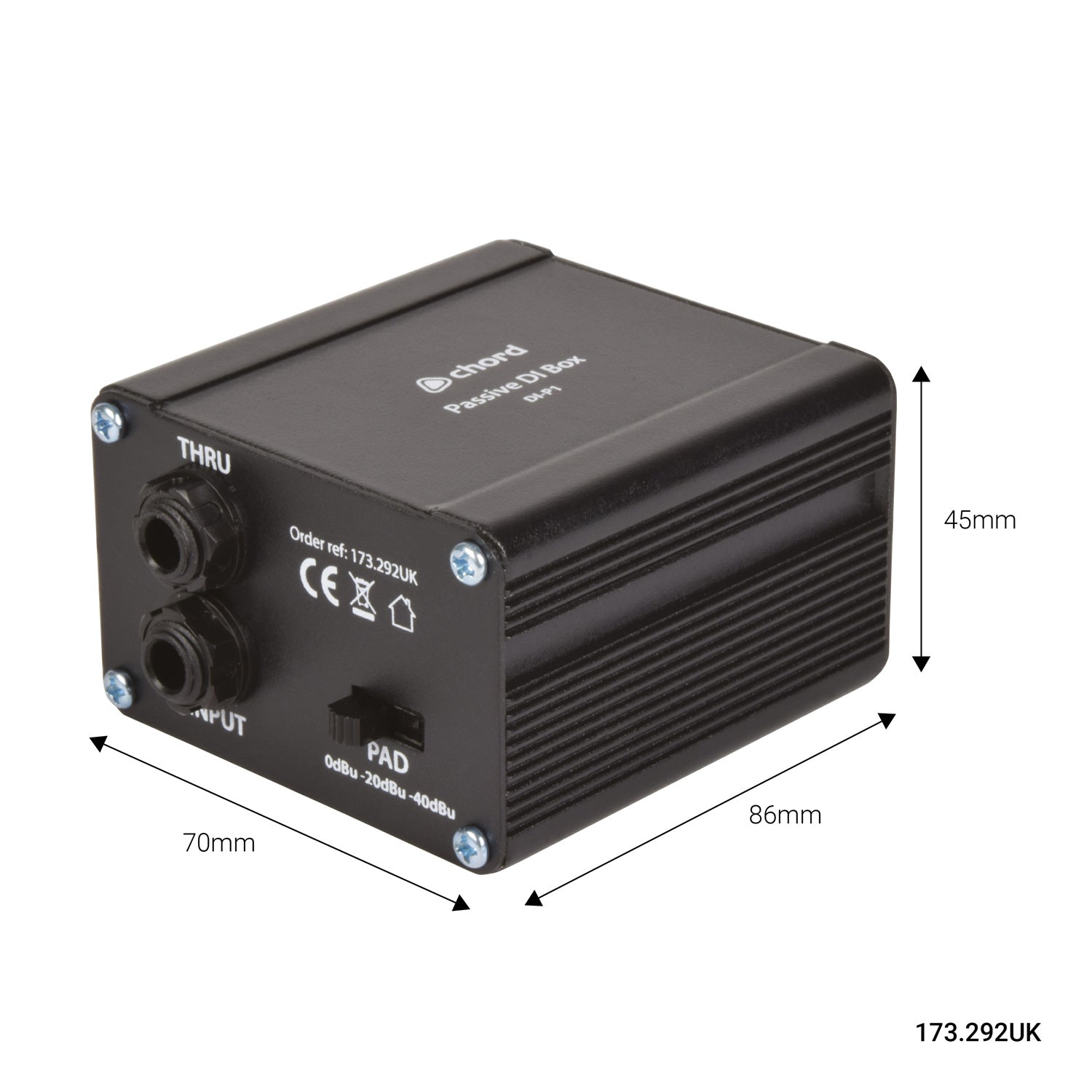

• Dimensions:86 x 70 x 45mm

Ideal Uses & Applications

The Passive Direct Injection Box is versatile and suitable for various applications:

• Domestic DIY:Perfect for home studios, allowing musicians to integrate their instruments seamlessly into recording setups.
• Commercial Buildings:Utilised in sound installations within commercial venues, providing high-quality sound transfer from various instruments.
• Hospitality Settings:A reliable option for restaurants and bars where live music is played, enabling musicians to connect easily to sound systems.
• Offices:Useful for corporate events or presentations involving live audio, ensuring clear sound from instruments or microphones.

Energy Efficiency & Cost Savings

While the Passive Direct Injection Box does not directly contribute to energy savings, its efficient design allows for optimal signal transmission, reducing potential sound distortion and the need for additional equipment. This can lead to long-term cost savings in audio setups by minimising the need for costly alterations or replacements due to poor signal quality. Additionally, by ensuring better audio performance, you can save on mixing time in both studio and live settings, enhancing productivity.
