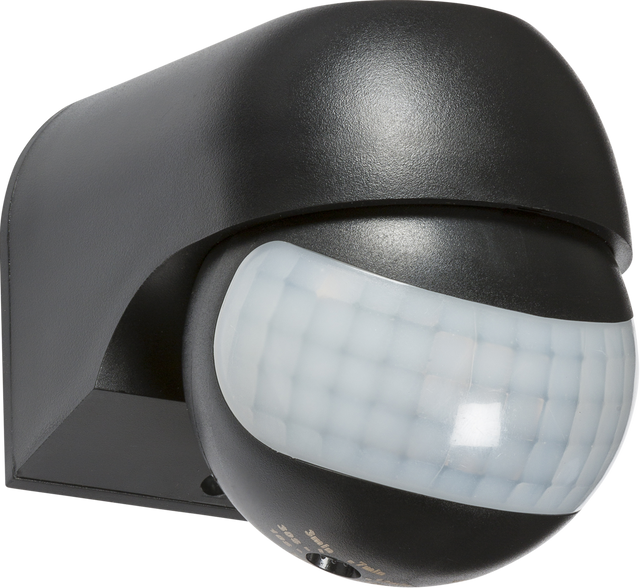

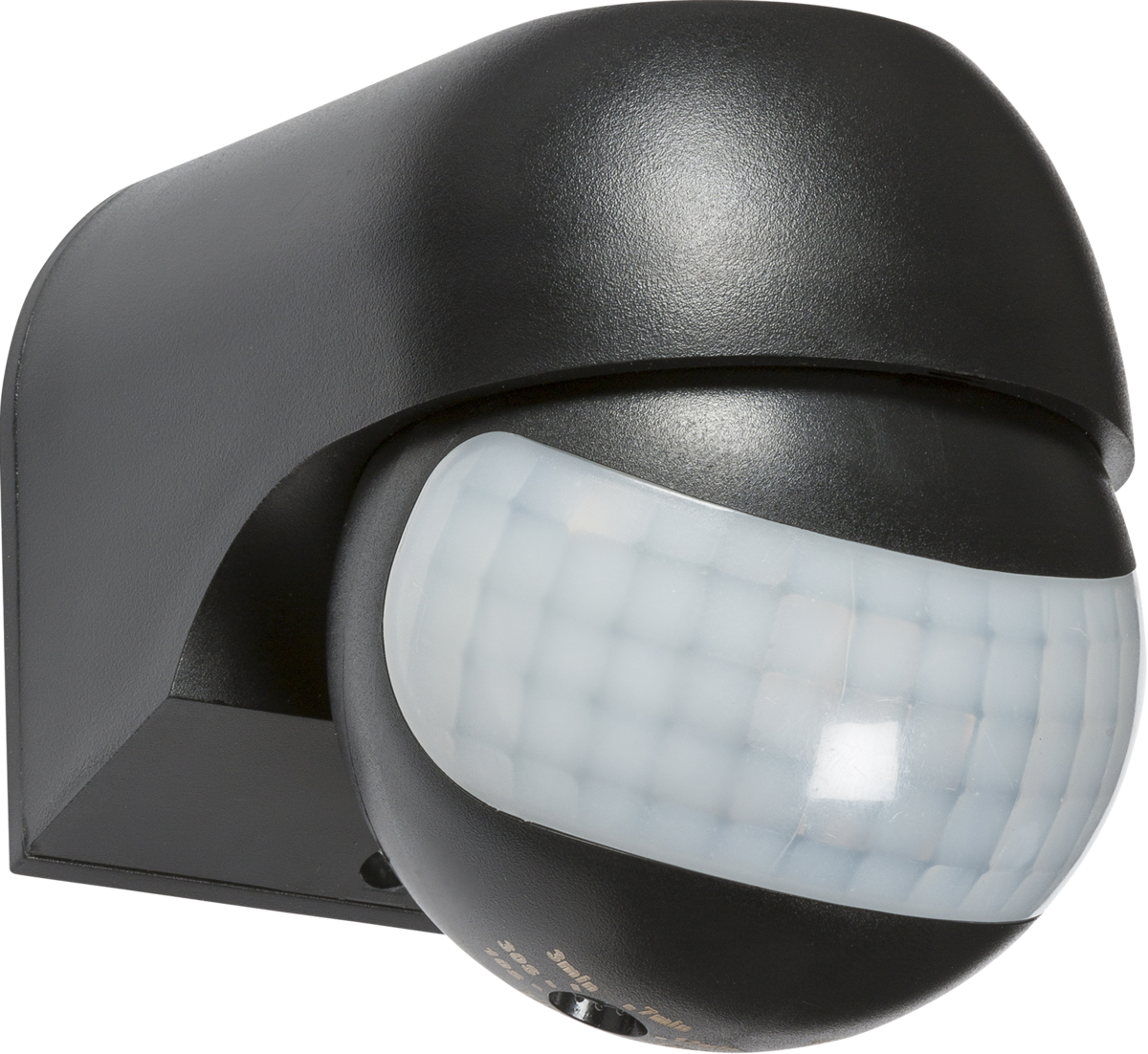

Knightsbridge: OS0014B, Mini PIR Sensor, IP44, 180° Detection, Adjustable Head, 12m Range, 2000W Capacity, Black
About this product
The IP44 180° Mini PIR Sensor is a compact and efficient stand-alone unit designed for various installation needs.
- IP44 rated for water and dust resistance.
- 180° field of detection with a 12m range at a 2.4m installation height.
- Adjustable head unit for optimal positioning.
- Wall or ceiling mountable for flexibility.
- Automatic operation for ease of use.
- Adjustable Lux and time settings (10 seconds to 15 minutes).
- Capable of being wired in parallel.
- Switching capacity of max 2000W for incandescent and max 1000W for LED.
- Compliant with EN 61058-1, EN 55015, EN 61547, EN 61000 standards.
- Supplied in Knightsbridge box for convenience.
Specifications
Dimensions
Specifications
Class | II |
---|---|
Finish | Black |
IP Rating | IP44 |
Construction | Polycarbonate |
Primary Voltage | 230V 50Hz |

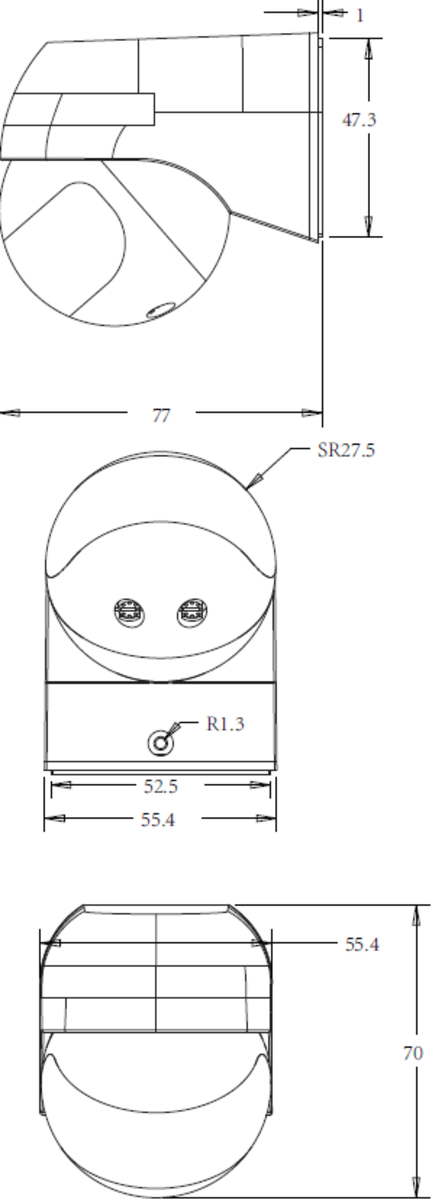

Dimensions
Width | 55 mm |
---|---|
Height | 70 mm |
Length | 77 mm |
Projection | 77 mm |
IP44 Mini PIR Sensor (Black, 180°, 12m Range) features
