Hochiki: CHQ-MRC2SCI, Mains Relay Controller, Single Relay Output with Short-Circuit Isolator, 250 VAC, 17-41 VDC

Visit Commercial Smart Meters | Advanced Energy Monitoring for Businesses
Short-Circuit Isolator
£ 57 45
(Incl. VAT) RRP: £67.58
Hochiki CHQ-MRC2(SCI) Controller
About this product

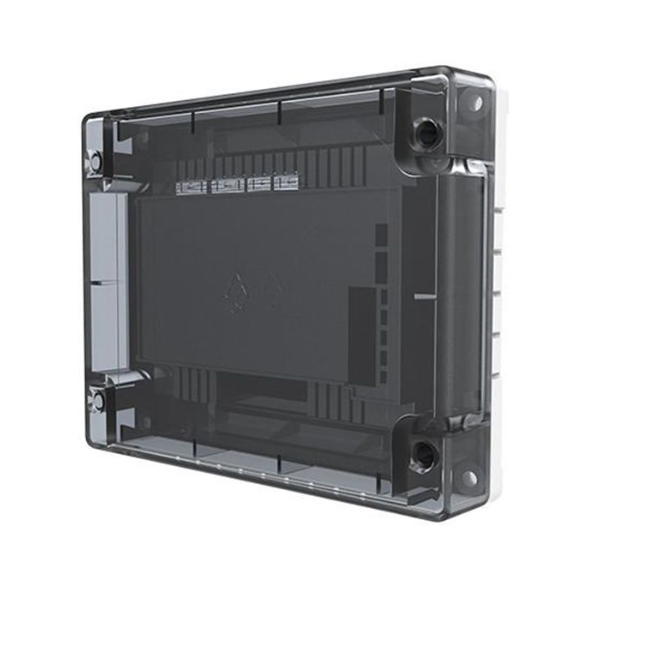

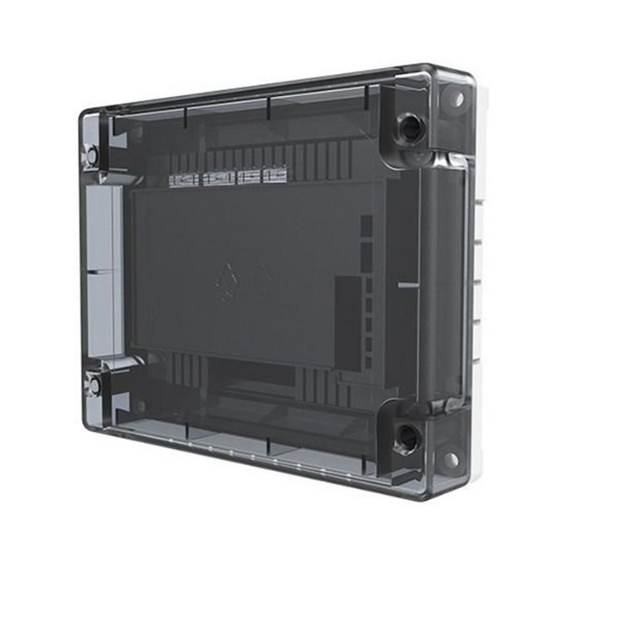

The Hochiki CHQ-MRC2(SCI) is a mains relay controller providing a single mains rated relay output specifically designed for controlling devices such as dampers and extractors or for shutting down plant and equipment. This unit incorporates an integral short-circuit isolator and can be mounted within an enclosure (not supplied) weighing no more than 5 kg.

  • Single relay output for effective control
  • Integral short-circuit isolator for enhanced safety
  • Monitored input for local power supply fault monitoring
  • Compatible with both single input/output module applications

Ideal for use in commercial settings, ensuring reliable operation in fire alarm control systems.

£ 57 45
FAST delivery by Order within
Ships from United Kingdom
14 days returns or replacements
Secure payment transactions
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Info about this product
Technical Details
Specifications
Relay Contact Rating
250 VAC @ 5 A (resistive), 48 VDC @ 2 A (resistive)
Operating Voltage
17 - 41 VDC
Quiescent Current
100 µA
Current Consumption
300 µA
Min. Short Circuit Current
22 mA ± 20%
Max. Short Circuit Current
8 mA
Storage Temperature Range
-30 °C to +60 °C
Operating Temperature Range
-10 °C to +50 °C
Maximum Humidity
95% RH non-condensing (at 40 °C)
Weight
Approx. 360 g
Specifications

Specifications

Relay Contact Rating 250 VAC @ 5 A (resistive), 48 VDC @ 2 A (resistive)
Operating Voltage 17 - 41 VDC
Quiescent Current 100 µA
Current Consumption 300 µA
Min. Short Circuit Current 22 mA ± 20%
Max. Short Circuit Current 8 mA
Storage Temperature Range -30 °C to +60 °C
Operating Temperature Range -10 °C to +50 °C
Maximum Humidity 95% RH non-condensing (at 40 °C)
Weight Approx. 360 g

Hochiki CHQ-MRC2(SCI) Controller features

Hochiki CHQ-MRC2SCI

Hochiki: CHQ-MRC2SCI, Mains Relay Controller, Single Relay Output with Short-Circuit Isolator, 250 VAC, 17-41 VDC

Product Overview & Key Benefits

The Hochiki CHQ-MRC2(SCI) mains relay controller is designed for effective management of key safety systems in operational environments. This product simplifies control of dampers and extractors, contributing to improved safety and efficiency in fire alarm systems.

Technical Specifications & Product Details

  • Relay Output:Single mains rated relay for device control
  • Relay Contact Rating:250 VAC @ 5 A (resistive), 48 VDC @ 2 A (resistive)
  • Operating Voltage:17 - 41 VDC
  • Storage Temperature:-30 °C to +60 °C
  • Operating Temperature:-10 °C to +50 °C
  • Weight:Approx. 360 g

Ideal Uses & Applications

This controller is ideal for commercial settings and can be used effectively in fire alarm systems for controlling essential equipment like dampers and extractors. Its integral short-circuit isolator ensures added safety for operations.

Energy Efficiency & Cost Savings

The Hochiki CHQ-MRC2(SCI) controller is not only efficient in operation but also essential for minimizing safety risks in environments susceptible to fire hazards. By using this product, users can enhance performance while maintaining compliance with fire safety regulations.
