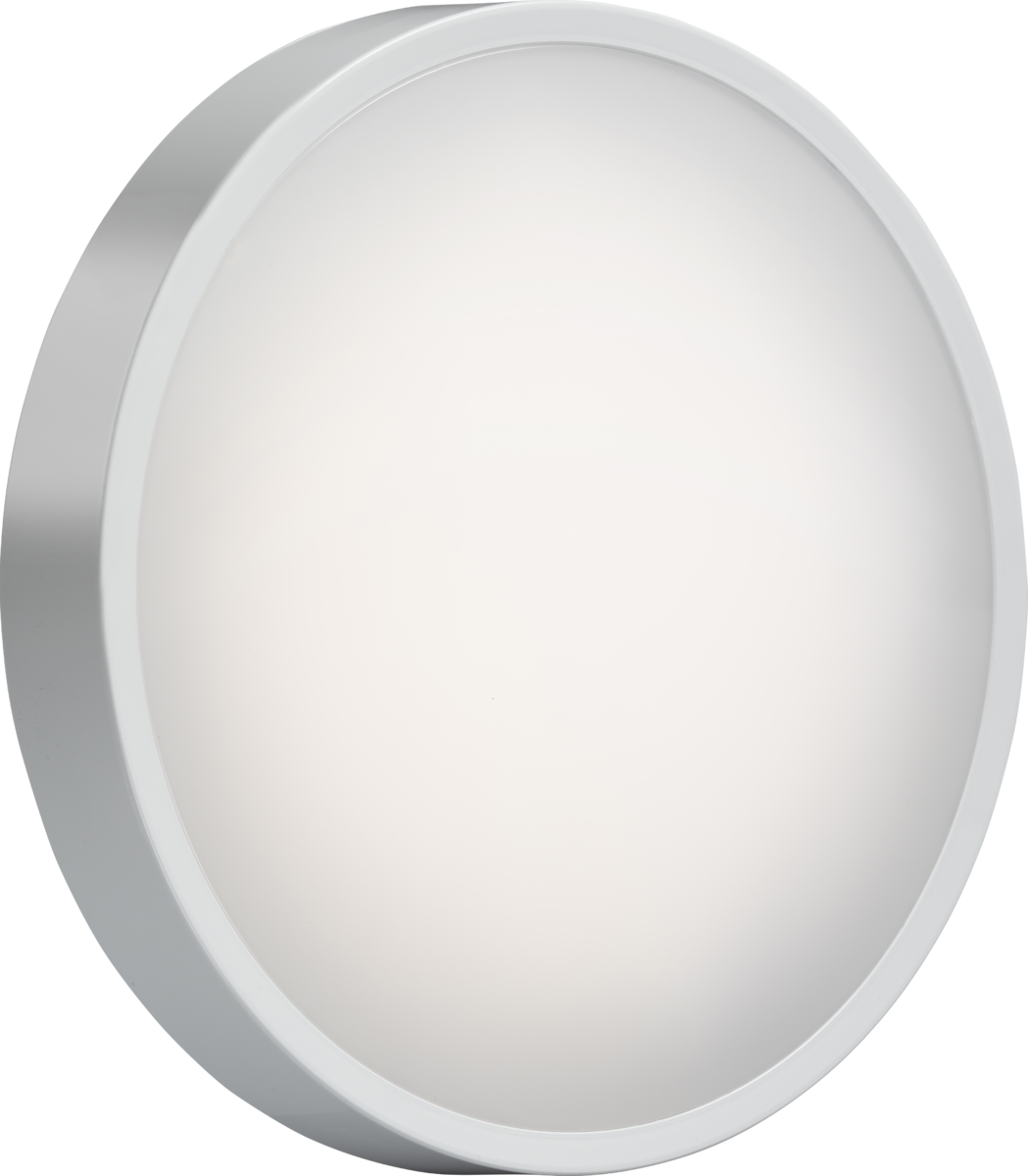

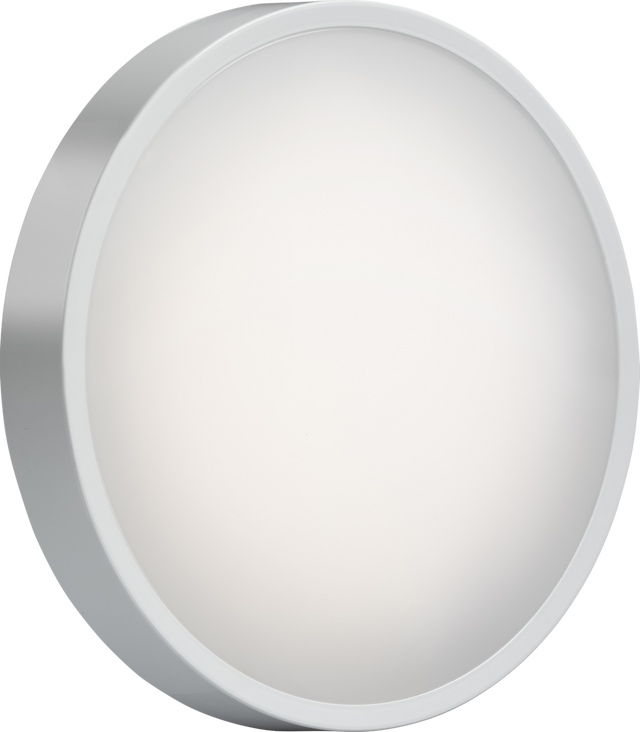

BT EVO LED Bulkhead, CCT Adjustable, 9W/14W/18W, IP65 IK10, Daylight Sensor, BTEVPEM
About this product
BT Evo offers superior commercial, industrial, indoor and outdoor illumination, reducing complexity by combining triple wattage and colour adjustments into a single slimline housing.
The complete range is constructed from anti-corrosive material, with an IP65 weatherproof rating and an IK10 impact rating.
A UV-stabilised body ensures long life outdoors.
- 3000K/ 4000K/5700K adjustable
- 9W/ 14W/ 18W adjustable
- Integral Natural Daylight Photocell Sensor for exterior use only
- Slave Live terminal enables the powering of additional non-sensor luminaires
- Class II
- Offered standard as white with optional bezels in Matt Black, Chrome, Eyelid Matt Black and Eyelid Grey.
- 9W - 930lm at 4000K with 136lm/W efficacy
- 14W - 1,400lm at 4000K with 136lm/W efficacy
- 18W - 1,750lm at 4000K with 134lm/W efficacy
Push-fit terminals, a hinged gear tray and a twist lock diffuser make it perfect for a hassle-free installation.
All units comply with UK and EU safety standards.
Specifications
Dimensions
Lamp
Driver
Luminaire
Photometric
Specifications
Class | II |
---|---|
Finish | White |
IP Rating | IP65 |
Construction | Polycarbonate |
Primary Voltage | 230V 50Hz |

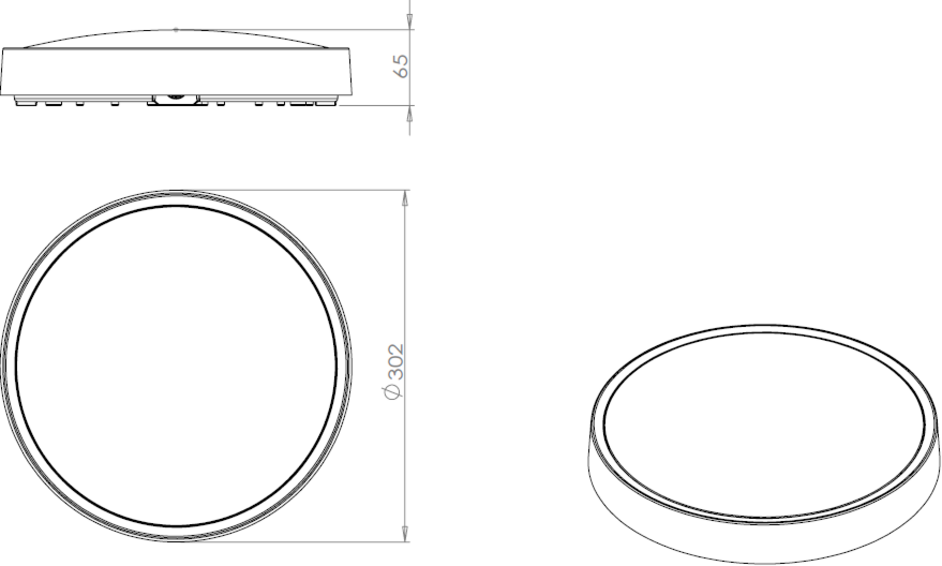

Dimensions
Diameter | 300 mm |
---|---|
Projection | 65 mm |
Lamp
L70B50 | 50,000 |
---|---|
Dimmable | No |
Beam Angle | 120 |
Lamp Technology | SMD LED |
Energy Rating (Class) post 2021 SLR | D |
Driver
Driver Type | Constant Current |
---|
Luminaire
Diffuser | Opal |
---|---|
Emergency | Maintained / Non-maintained (not Switched) |
Photometric
CCT | 3000/4000/5700 K |
---|---|
CRI | >85 |
Lumens | 890/930/915,1295/1400/1330,1520/1750/1585 lm |
Wattage | 9/14/18 |
Light Colour | CCT |
Lumens (Em. mode) | 120 lm |
Efficacy (Light source) | 136/136/134 lm/W |
Lumens (Light source only) | 1215/1900/2300 lm |
BT EVO LED Bulkhead with Daylight Sensor features

BT EVO LED Bulkhead, CCT Adjustable, 9W/14W/18W, IP65 IK10, Daylight Sensor, BTEVPEM
