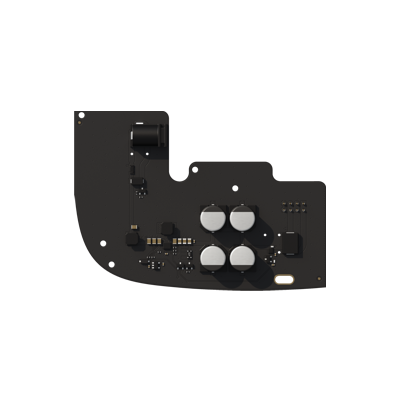

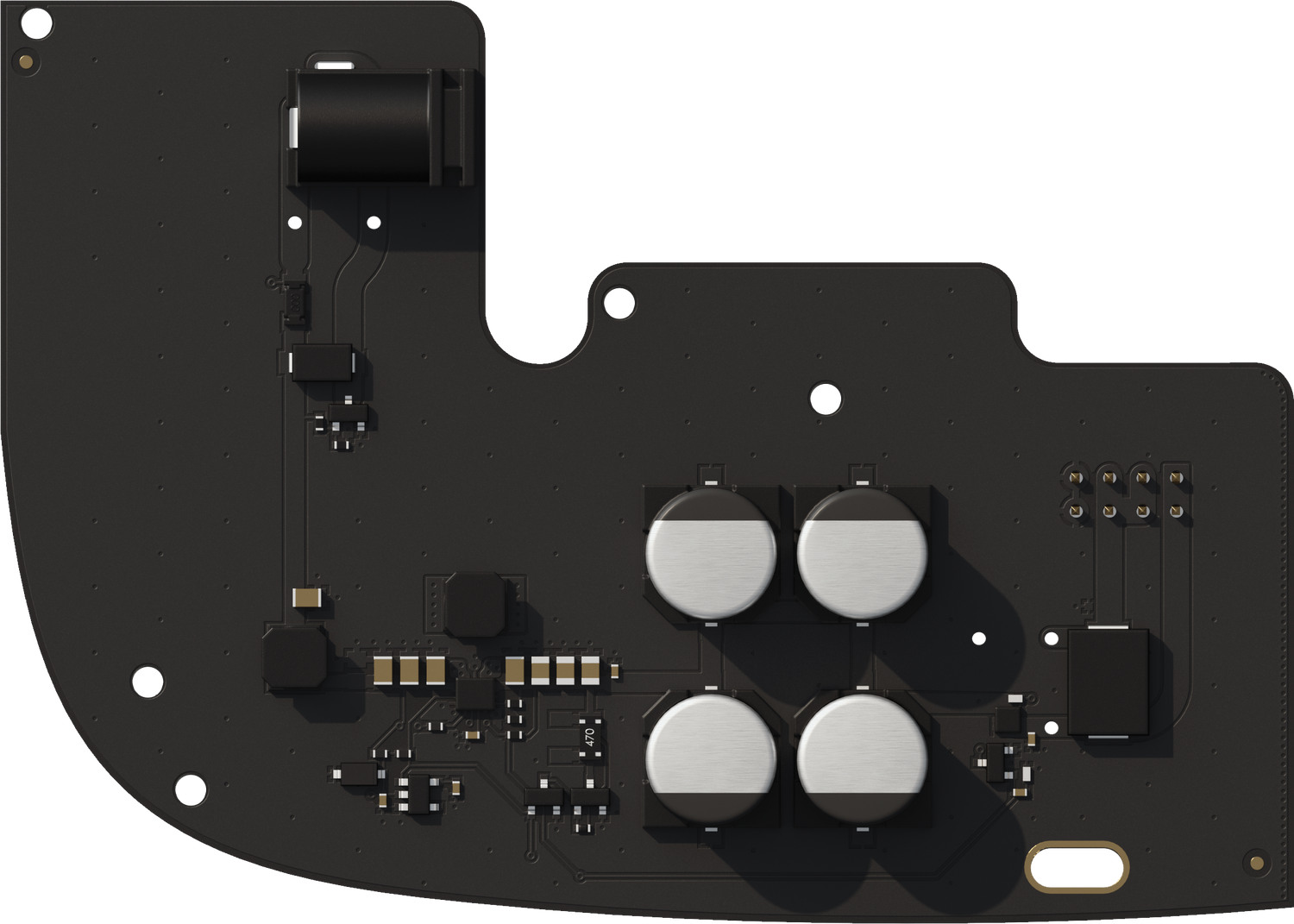

Ajax: HUB2PSU/6V, 6V Power Supply Unit for Hub 2 & Hub 2 Plus, 4.8V Output, 98x70x17mm
About this product
Power supply unit for connecting Hub 2 / Hub 2 Plus control panels to a low-voltage power source.
- Compatibility: Hub 2 and Hub 2 Plus
- Input Voltage: 4.2-16 V
- Output Voltage: 4.8 V ± 5%
- Switch-on Voltage: 4.2 V ± 2.5%
- Switch-off Voltage: 3-3.4 V (depending on load)
- Input Current: 2.2 A at 4.2 V; 0.5 A at 16 V
- Output Current: 1.5 A
- Connection: Socket: 6.5 x 2 mm, Plug: 5.5 x 2.1 mm
- Dimensions: 98 x 70 x 17 mm
- Weight: 0.026 kg
- Complete Set: 6V PSU for Hub 2/Hub 2 Plus, Terminal adapter, Quick guide
This alternative 6 V power supply unit allows your hub to operate from an external battery for extended periods without being connected to the power grid, ideal for protecting facilities in crisis.
Specifications
Dimensions
Specifications
ITM No. | ITM000896 |
---|---|
Manufacturer | Ajax |
Type of Product | simple |
Input Voltage | 4.2-16 V |
Output Voltage | 4.8 V ± 5% |
Input Current | 2.2 A at 4.2 V; 0.5 A at 16 V |
Output Current | 1.5 A |
Dimensions
Length | 98 mm |
---|---|
Width | 70 mm |
Height | 17 mm |
6V Power Supply Unit for Hub 2/Hub 2 Plus features
