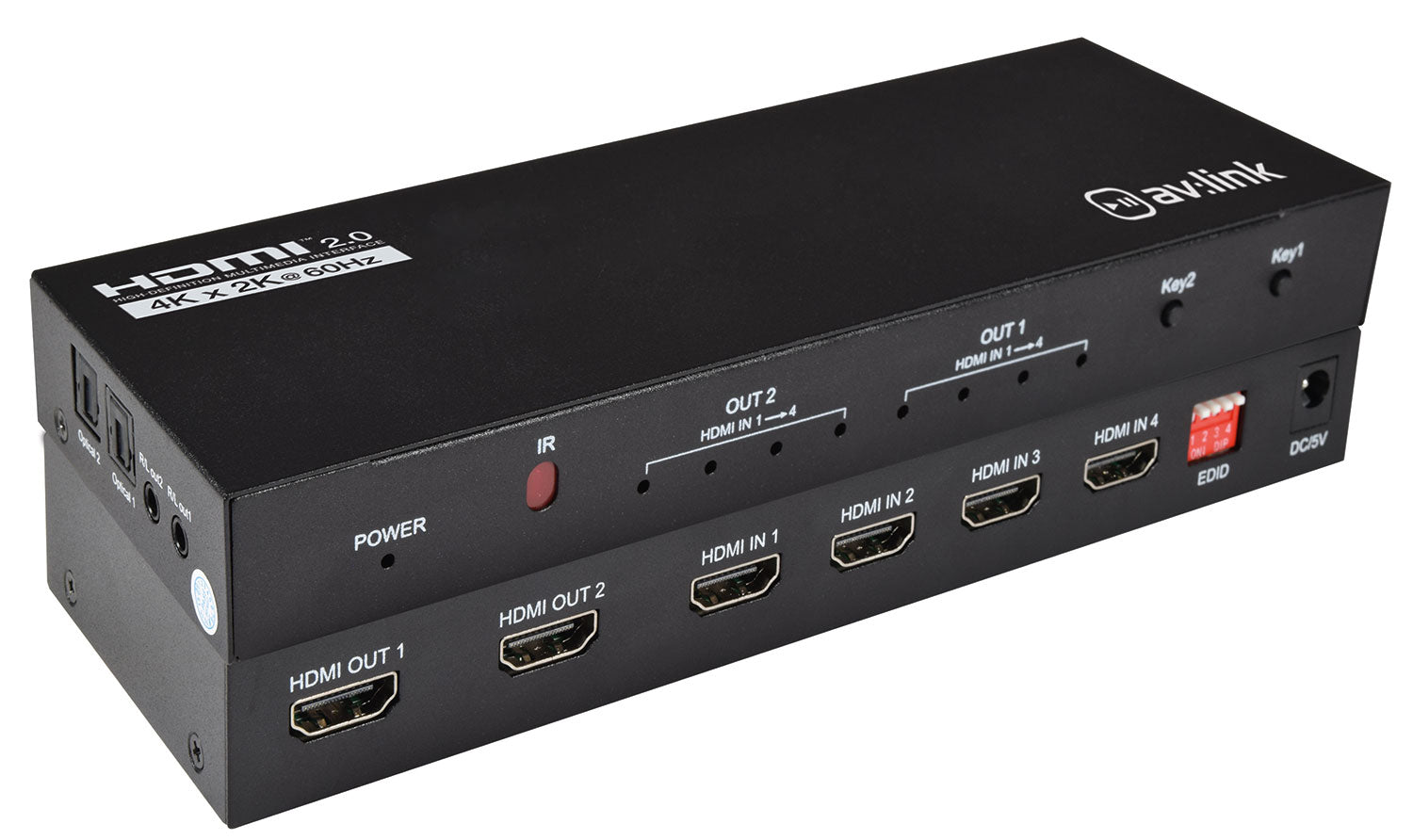

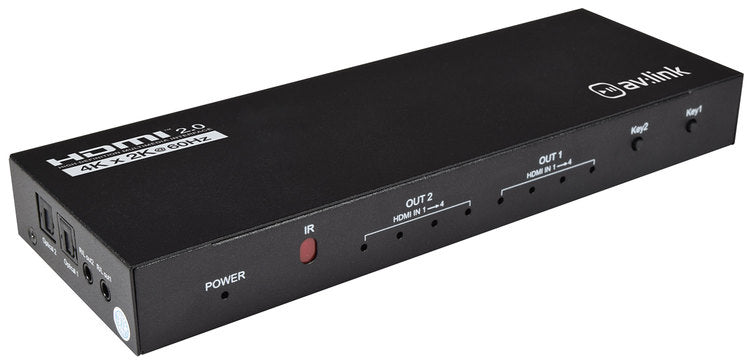

AV:Link: 128.849UK, 4K HDMI Matrix Switcher, 4 Input, 2 Output, 3840 x 2160 @ 60Hz

Product Overview & Key Benefits

The 4K HDMI Matrix 4x2 is an advanced audio-visual switching device designed to enhance the flexibility and functionality of your entertainment or presentation setup. It allows users to seamlessly switch between four different HDMI source devices while delivering output to two display screens simultaneously. This makes it an ideal solution for hospitality venues, commercial spaces, or home cinema setups. The 4K HDMI Matrix supports both FHD and 4K resolutions, ensuring that users can enjoy high-quality visuals according to their specific needs.

Technical Specifications & Product Details

• Model:4K HDMI Matrix 4x2
• Supplier SKU:128.849UK
• Weight:300g
• Dimensions:99 x 70 x 27mm
• Audio format:Supports DTS-HD, Dolby True, DTS, Dolby-AC3, and DSD
• HDCP version:2.2
• Power adaptor:Input: AC (50Hz, 60Hz) 100-240V, Output: DC5V/1A
• Max. bandwidth:600MHz
• Max. baud rate:3 x 6Gbps
• Display colours:8/10/12bit deep colour
• Max. resolution:3840 x 2160 @ 60Hz

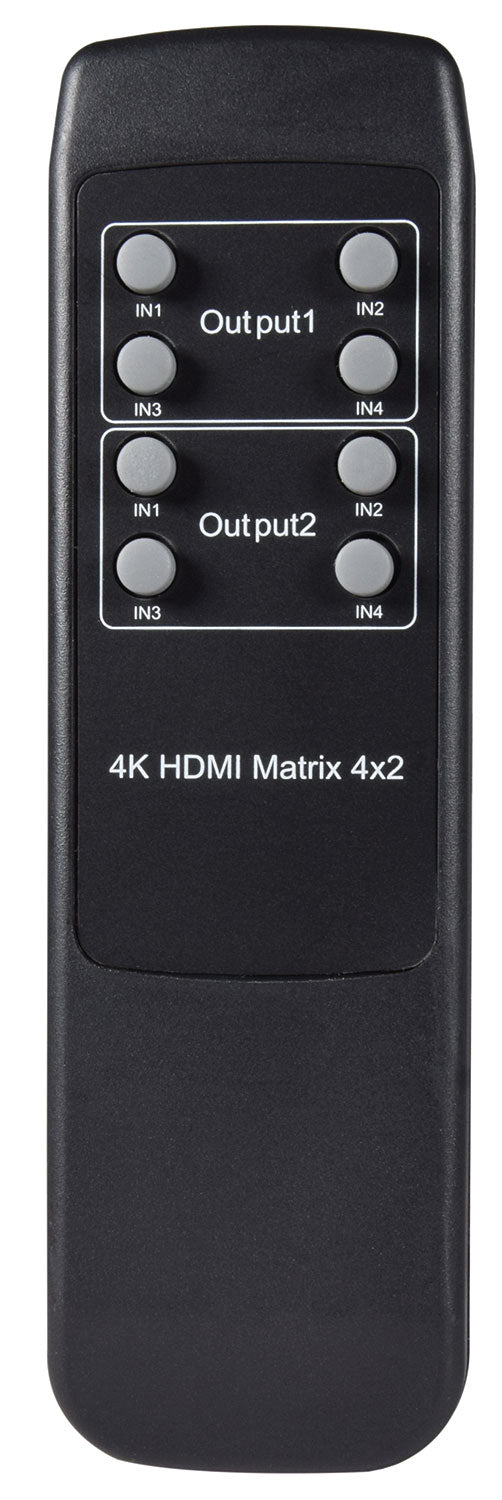

• Battery (remote):2x AAA (not supplied)

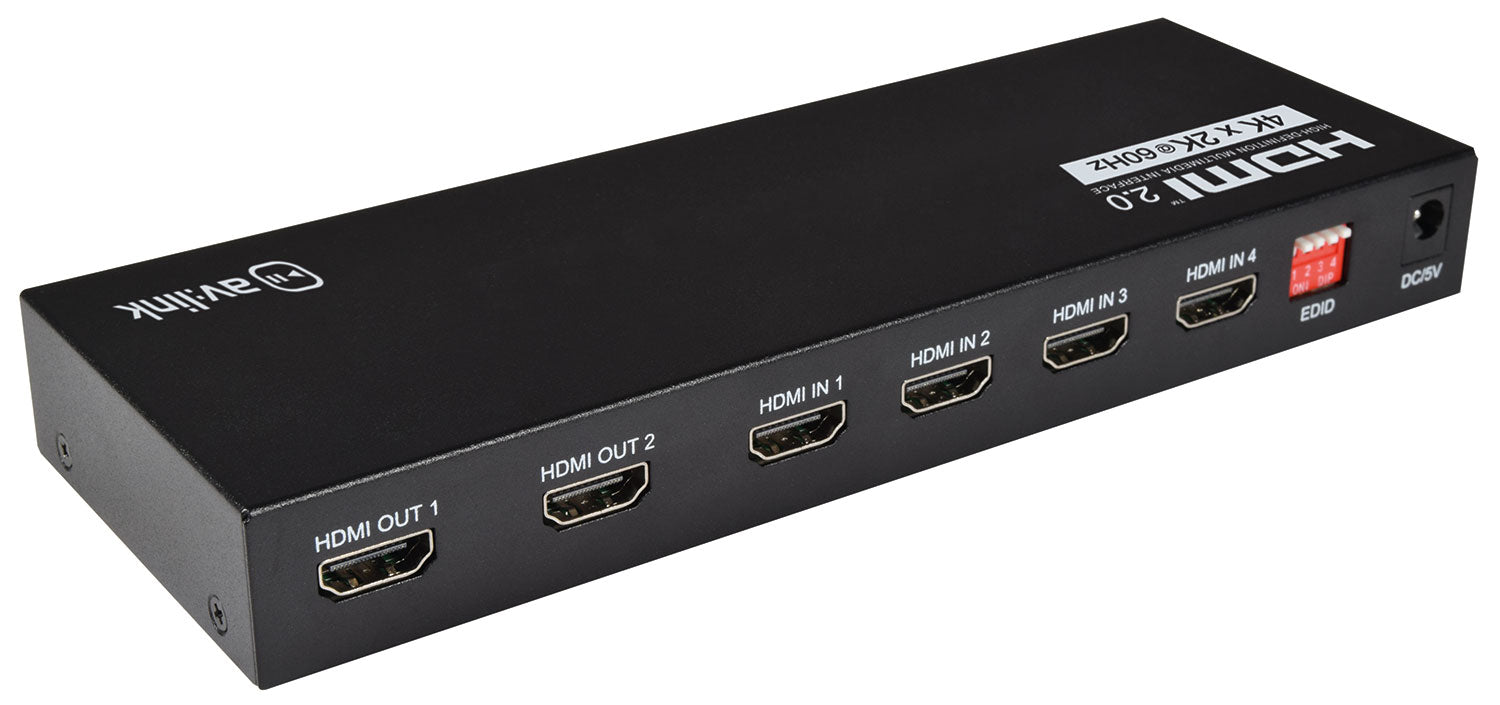

• Input connections:4x HDMI
• Output connections:2x HDMI, 2x Optical (Toslink), 2x 3.5mm Stereo
• Max. working current:600mA
• Transmission distance:30m max for 4K @ 30Hz and FHD, or 10m max for 4K @ 60Hz
• Operating temperature range:-15°C to +55°C

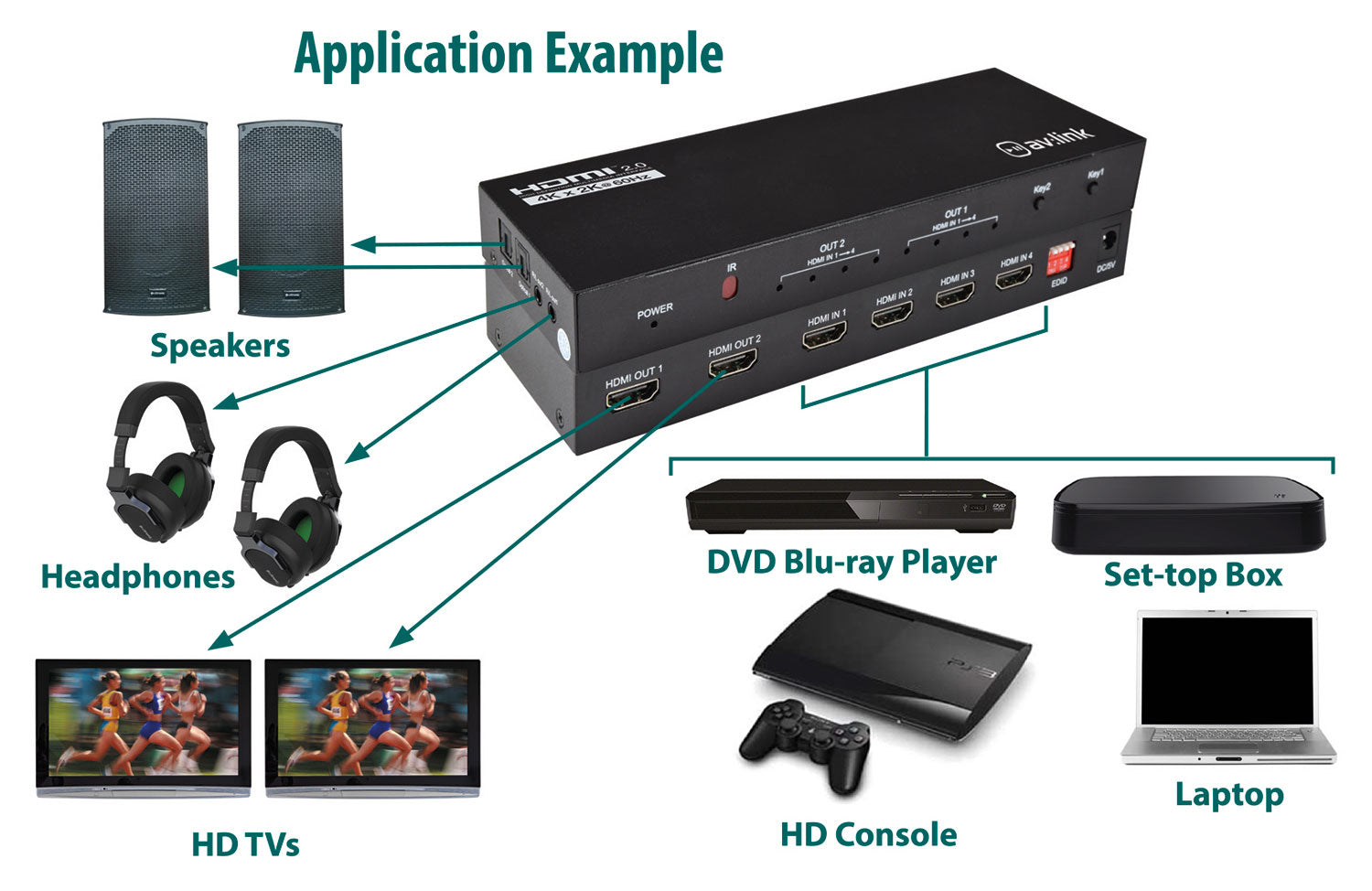

Ideal Uses & Applications

The 4K HDMI Matrix 4x2 is perfect for a wide range of environments where multiple HDMI devices need to be integrated and easily switched. It is particularly beneficial in:

• Hospitality Venues:Perfect for bars, restaurants, and hotels where multiple source devices such as TVs, projectors, and screens are used.
• Commercial Settings:Ideal for corporate presentations and meetings where different media devices such as laptops and media players may be used.
• Home Theatres:A great addition for enthusiasts looking to easily switch between gaming consoles, Blu-ray players, and streaming devices without hassle.

Energy Efficiency & Cost Savings

In an age where energy efficiency is paramount, the 4K HDMI Matrix 4x2 provides not only superior performance but also significant savings potential. By utilizing optimal signal transfer through gold-plated HDMI connectors and advanced power management features, this device helps to reduce unnecessary power consumption. As a result, users can enjoy high-definition video and sound while potentially lowering energy costs over time, making it an eco-friendly choice for both residential and commercial applications.
