Intelligent Dimmer Switch - Matt Black
About this product
Perfect finishing touch to any modern home, rounded edge metal design with matching metal cap.
Key Features:
- Switch between Trailing-edge and Leading-edge modes, making this a highly compatible dimmer solution.
- Trim, switch modes and reset dimmer all from the front of the plate via the control knob – future proofing and making it easy to reset, re-adjust if there is a change of fitting or lamps.
- Push On/Off, rotary dimming action.
- Preset in Trailing-edge mode.
- 10-200W (5-150W LED).
- Suitable for use with dimmable lamps only.
- Overload and Overheat protection.
- Fitted with an Inrush Current Limiter (ICL).
Safety Note: Do not use in a mixed environment (i.e. different brands of lamps or different wattages of lamps in the same fitting).
Specifications
Dimensions
Wiring-accessories
Specifications
Class | I |
---|---|
Finish | Matt Black |
IP Rating | IP20 |
Construction | 304 Stainless steel |
Primary Voltage | 230V 50Hz |

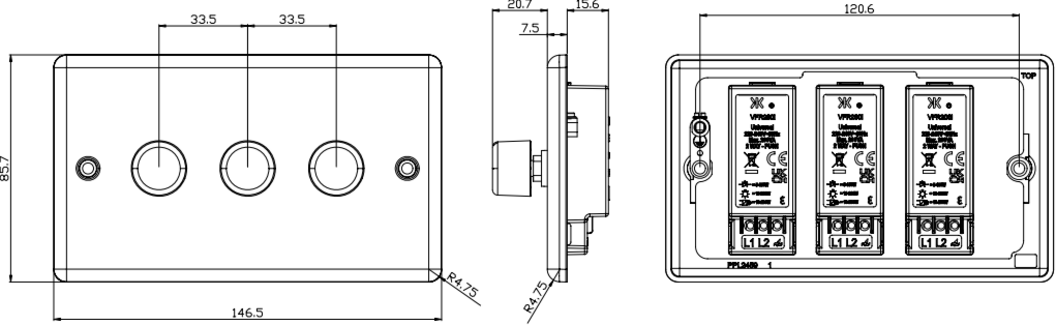

Dimensions
Depth | 43.8 mm |
---|---|
Width | 146.5 mm |
Height | 87.75 mm |
Projection | 20.7 mm |
Plate Depth | 7.5 mm |
Min. Mounting Box Depth | 25mm |
Wiring-accessories
Terminal | Screw |
---|---|
Earth Terminal | Yes |
Intelligent Dimmer Switch - Matt Black features

3G 2 Way Intelligent Dimmer Switch, 10-200W (5-150W LED), Matt Black, Control Knob, Overload Protection, CL2193MBB
