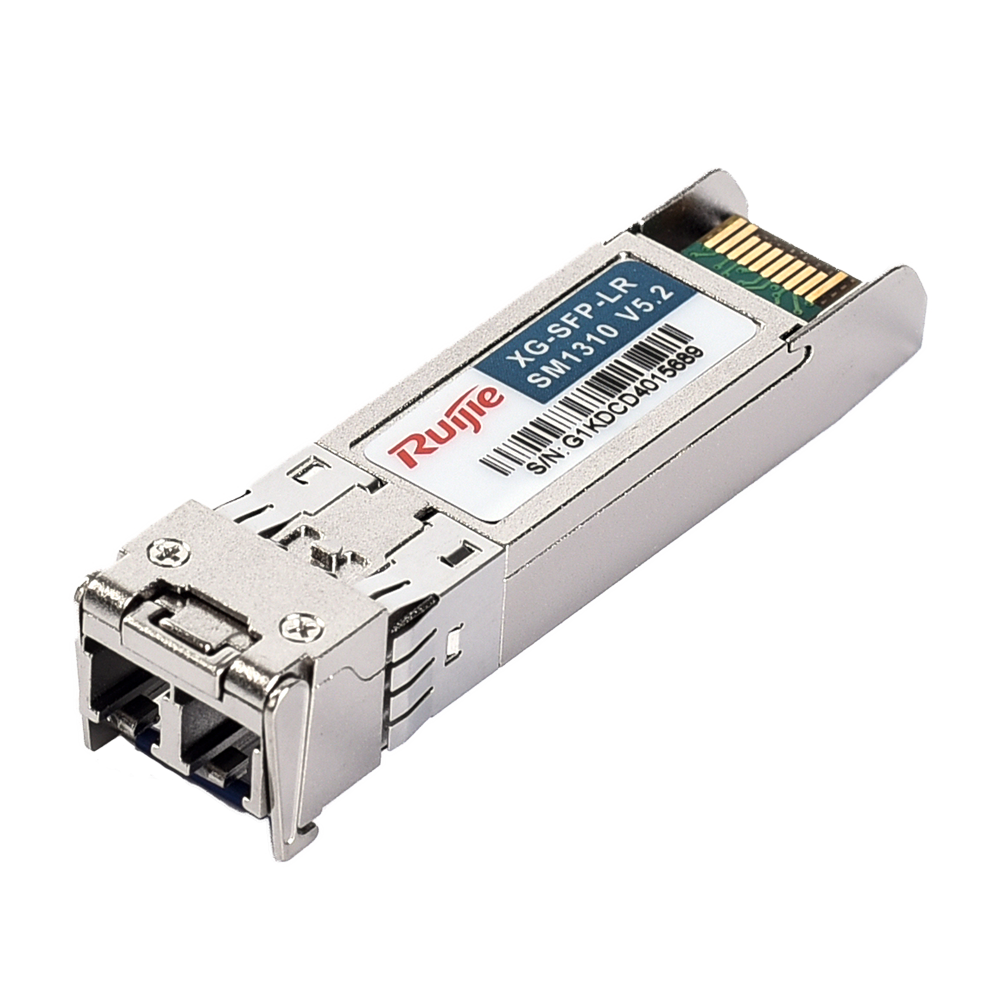

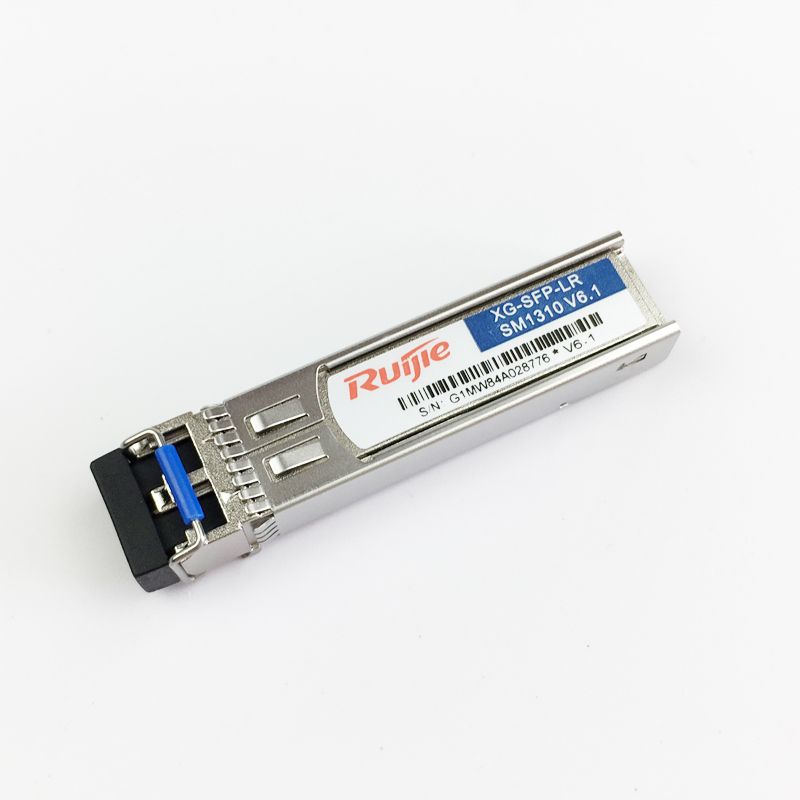

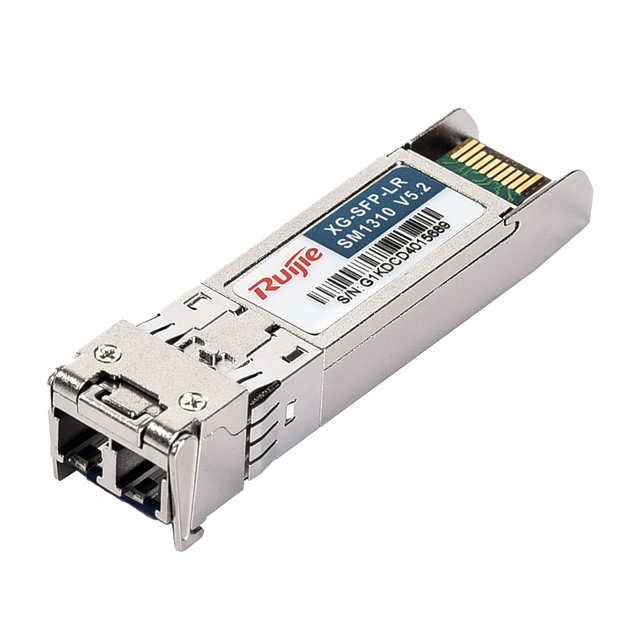

Ruijie: XG-SFP-LR-SM1310, 10G SFP+ LR Transceiver, 1310nm, 10km, LC Duplex, Single Mode Fibre
About this product
The Ruijie XG-SFP-LR-SM1310 SFP+ transceiver is designed for high-performance networking applications, providing exceptional data transmission capabilities over single-mode fibre optics.
- Features:
- Genuine Ruijie XG-SFP-LR-SM1310
- Hot-pluggable SFP+ footprint for easy installation
- Electrical interface compliant to SFF-8431
- Compliant with SFF-8472
- 10Gb/s serial optical interface compliant to 802.3ae 10GBASE-LR
- Wavelength of 1310nm with low power consumption
- Capable of distance up to 10km on single-mode fibre
- LC Duplex connector with built-in digital diagnostic functions
- Single 3.3V power supply with a metal enclosure for lower EMI
- ROHS compliant and lead-free
Applications:
- 10GBASE-LR/10GBASE-LW Ethernet
- 10G Fiber Channel
- 10GbE Data Center Switches and Routers
Specifications
Product-information
Specifications
Manufacturer | Ruijie/Reyee |
---|---|
Part Number | XG-SFP-LR-SM1310 |
Form Type | SFP+ |
Speed | 10 Gb/s |
Connector | Duplex LC |
Media | Single Mode Fibre |
Wavelength | 1310 nm |
Max Cable Distance | 10 km |
Transmitter Type | DFB |
Receiver Type | PIN |
TX Power | -8.2 to 0.5 dBm |
Receiver Sensitivity | <-14.4 dBm |
Digital Diagnostic Monitoring | Yes |
Operating Temperature | 0 to 70°C |
Protocols | IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant |
Product-information
ITM No. | ITM003404 |
---|---|
New Product | Yes |
Ruijie XG-SFP-LR-SM1310 SFP+ Module features

Ruijie: XG-SFP-LR-SM1310, 10G SFP+ LR Transceiver, 1310nm, 10km, LC Duplex, Single Mode Fibre
