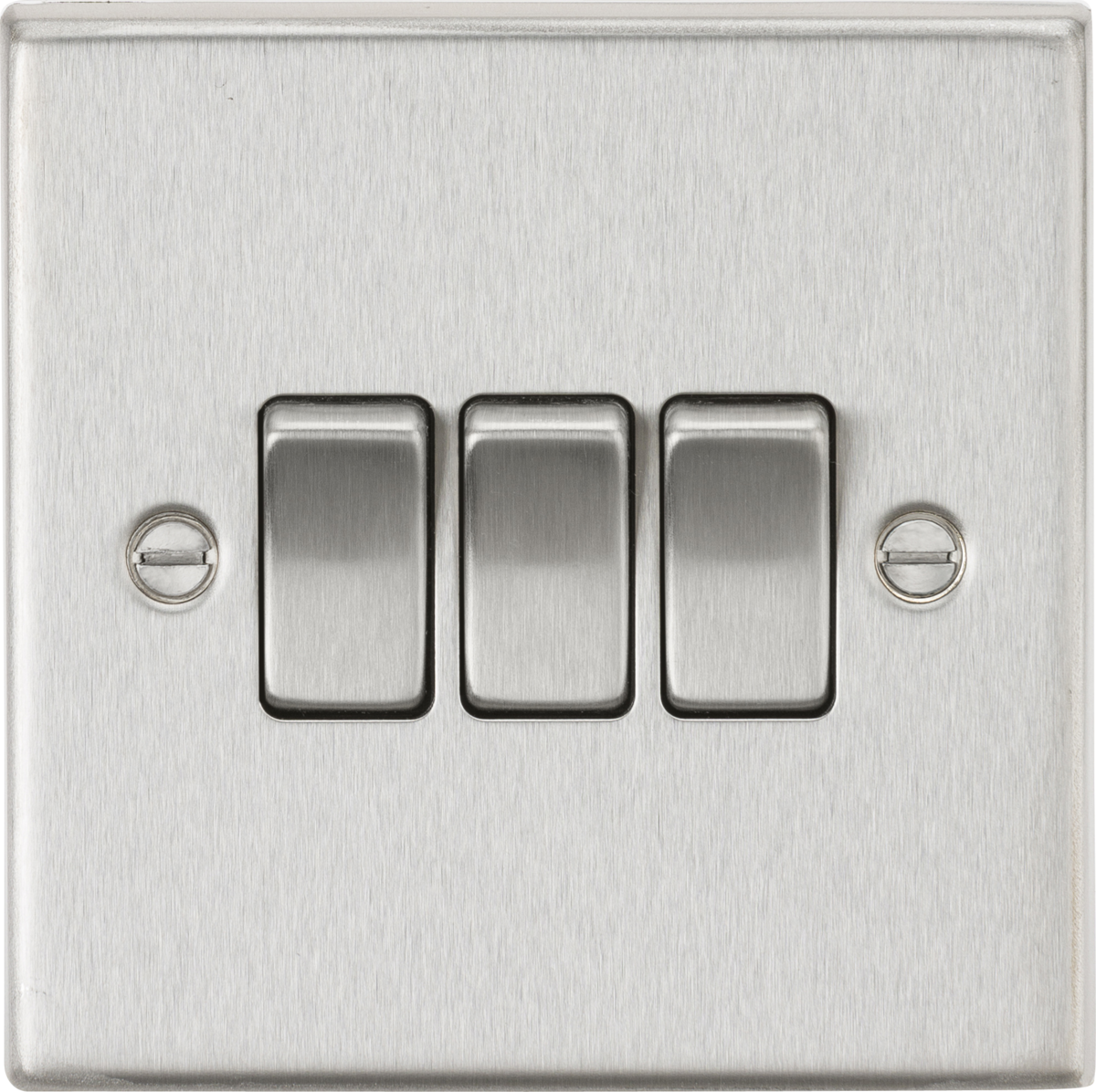

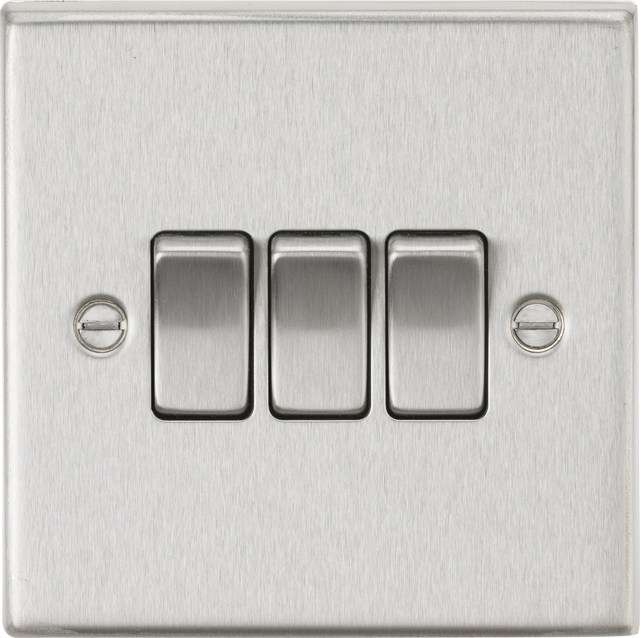

Knightsbridge: CS4BC, 10AX 3G 2-Way Plate Switch, Square Edge, Brushed Chrome, 230V, IP20
About this product
This 10AX 3G 2-way Plate Switch is the perfect finishing touch for any modern home. The square edge metal design with matching metal rocker adds an elegant aesthetic.
- 10AX rated for reliable performance.
- 2-way functionality for joint control of lighting from two entrances.
- Square Edge design with built-in gasket.
- Completely certified to EN 60669-1.
- Requires a minimum mounting box depth of 16mm.
Specifications
Dimensions
Wiring-accessories
Specifications
Finish | Brushed Chrome |
---|---|
IP Rating | IP20 |
Construction | 430 Stainless Steel |
Primary Voltage | 230V 50Hz |

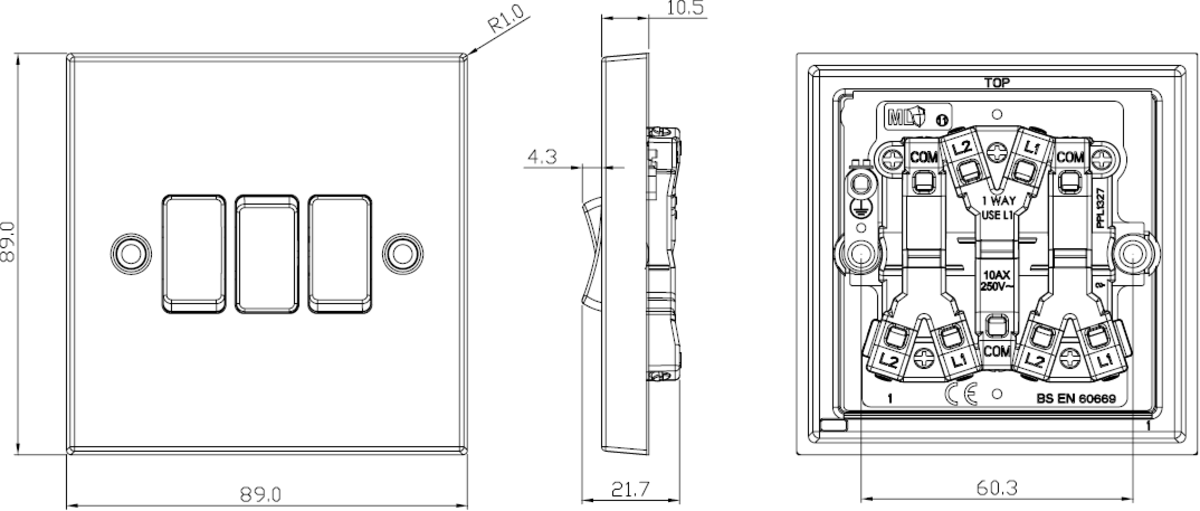

Dimensions
Depth | 21.7 mm |
---|---|
Width | 89 mm |
Height | 89 mm |
Projection | 14.8 mm |
Plate Depth | 10.5 mm |
Min. Mounting Box Depth | 16mm |
Wiring-accessories
Terminal | Screw |
---|---|
Earth Terminal | Yes |
10AX 3G 2-Way Switch - Square Edge features

Knightsbridge: CS4BC, 10AX 3G 2-Way Plate Switch, Square Edge, Brushed Chrome, 230V, IP20
