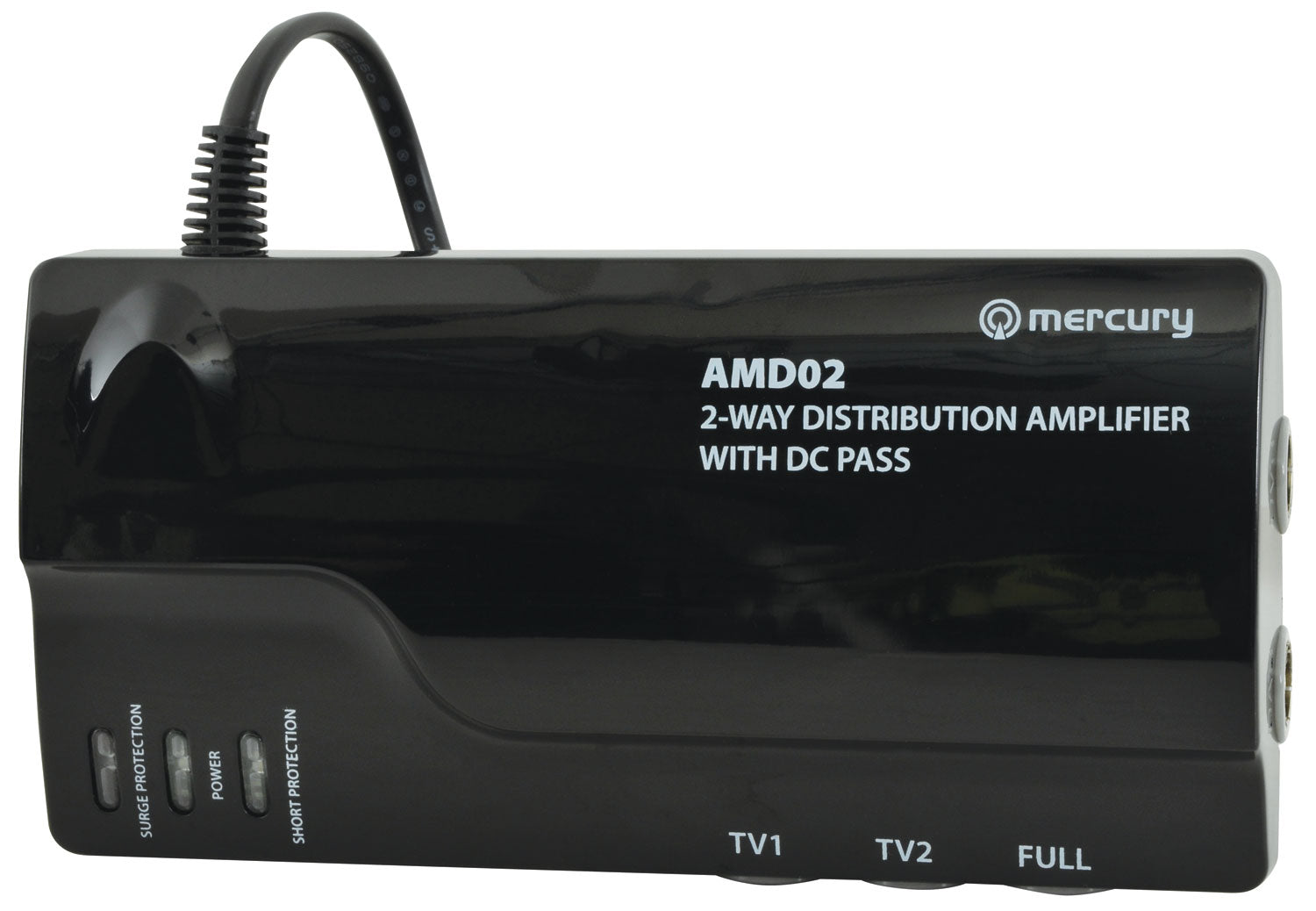

Mercury: 130.030UK, UHF/VHF Distribution Amplifier, 2 Way, 5G Filter, Low Noise

Product Overview & Key Benefits

The UHF/VHF Distribution Amplifiers with 5G/4G Filter and DC Pass are expertly designed devices that enhance the audio and video quality by amplifying weak VHF/UHF signals throughout a dedicated area. These amplifiers are perfect for both professional and domestic installations, offering full compatibility with Digital Terrestrial, Satellite, Cable TV, and DAB/FM radio signals. With integrated filtering for 5G and 4G LTE, these amplifiers effectively reduce interference, ensuring a superior viewing experience.

Technical Specifications & Product Details

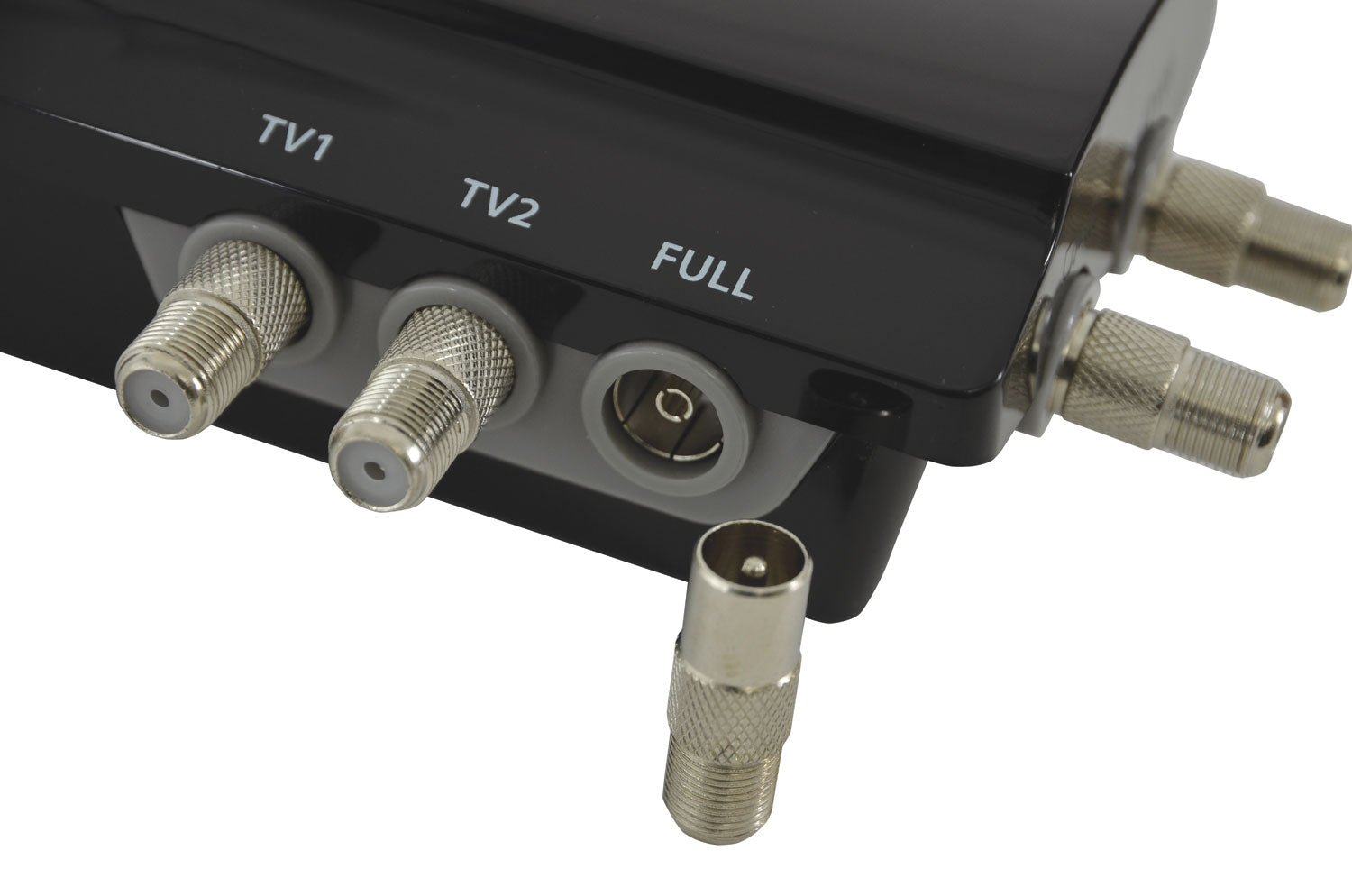

• Input:2 x coax sockets
• Noise:<3.8dB
• Power:230Vac, 50Hz
• Weight:270g
• Impedance:75 Ohms
• Isolation:22dB
• Dimensions:135 x 70 x 45mm
• Supplied with:2pcs F-Type Adaptor
• Cable length:1.0m
• Gain per split:12dB
• No. of outputs:2 + Full (3 x coax sockets)
• Full gain output:20dB
• Max. output level:94dBuV
• Frequency range (UHF):470-694MHz (5G)
• Frequency range (VHF):47 - 230MHz

Ideal Uses & Applications

This distribution amplifier is versatile and suitable for a range of applications. In domestic settings, it enhances signal quality for home entertainment systems, allowing users to enjoy their favourite shows without disruptions. For commercial buildings such as offices and hotels, these amplifiers ensure seamless connectivity and distribution of signals throughout the premises, catering to both business needs and guest satisfaction. Moreover, due to its performance, the product is ideal for broadcast professionals and those managing large antenna systems.

Energy Efficiency & Cost Savings

The UHF/VHF Distribution Amplifiers with 5G/4G Filter are designed with energy efficiency in mind, allowing for enhanced signal amplification without significantly increasing energy consumption. Users can experience high-quality audio and video while benefiting from a low operational cost. This feature not only saves on energy bills but also promotes a more sustainable and environmentally friendly use of technology in both domestic and commercial applications.
