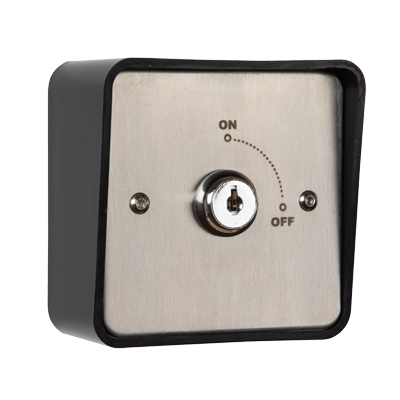

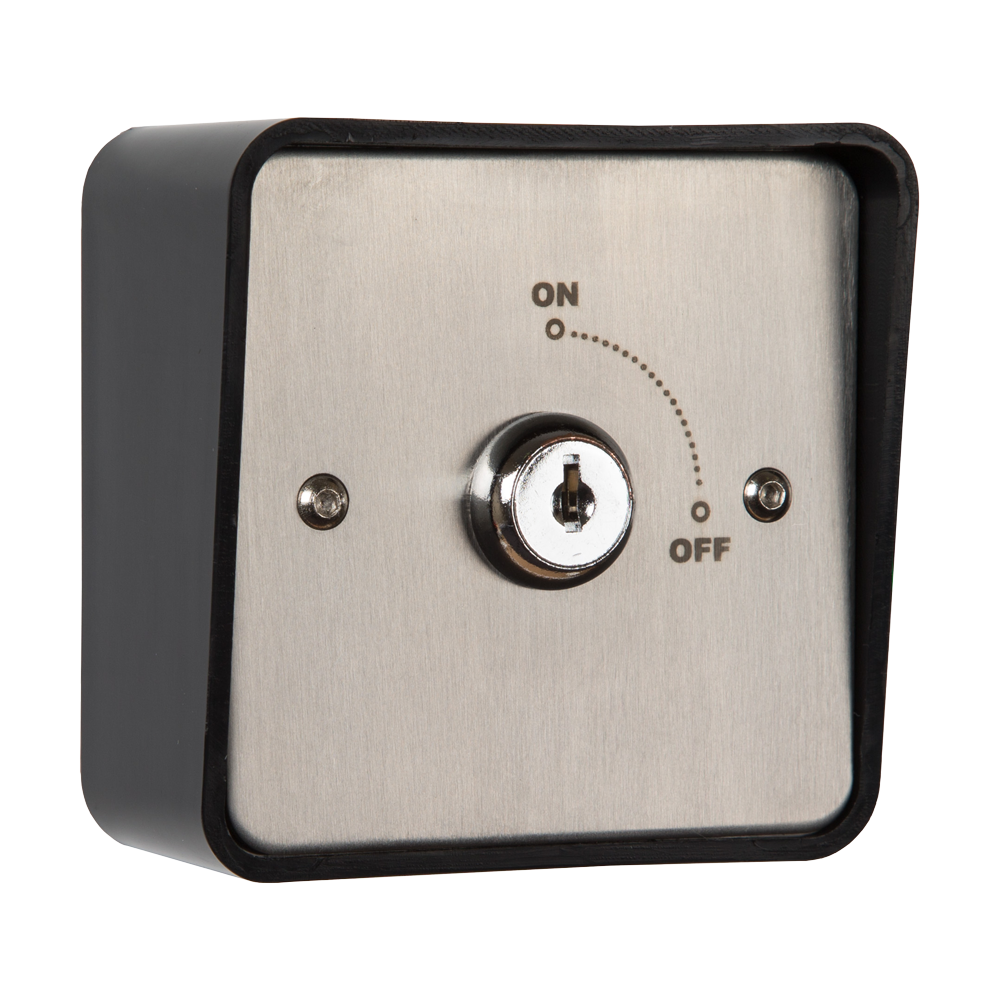

WME: KS-1, On/Off Latching Key Switch, IP54 Rated, Stainless Steel, Surface Fitting, Includes 2 Keys
About this product
The On/Off Latching Key Switch, model KS-1, is a vital access control component designed with the user in mind. It provides the essential capability for secure override operations, making it ideal for both domestic and commercial uses like hospitals and public areas.
- Functional Design: Simple and easy to operate, ensuring efficient usage.
- Secure Override: Allows for a guaranteed override mechanism when needed.
- Easy Clean Surface: Maintains hygiene, essential for environments such as hospitals.
- Versatile Mounting: Features a screw footprint for standard and flush back box fittings.
- Latching On/Off Operation: Facilitates the operation with key removal in both switch positions.
- Durable Contacts: Rated for over 1 million operations with voltage-free contacts.
-
Download
- KS-1 spec
Specifications
Dimensions
Technical-features
Specifications
ITM No. | ITM001182 |
---|---|
Manufacturer | RGL |
Rated Ingress Protection | IP54 |
Material | Stainless Steel |
Dimensions
Height | 85 mm |
---|---|
Width | 85 mm |
Depth | 40 mm |
Technical-features
Keys Supplied | 2 x keys |
---|---|
Contact Type | NO/NC |
Weight | 260g (Boxed), 212g (Unboxed) |
On/Off Latching Key Switch (KS-1) features
