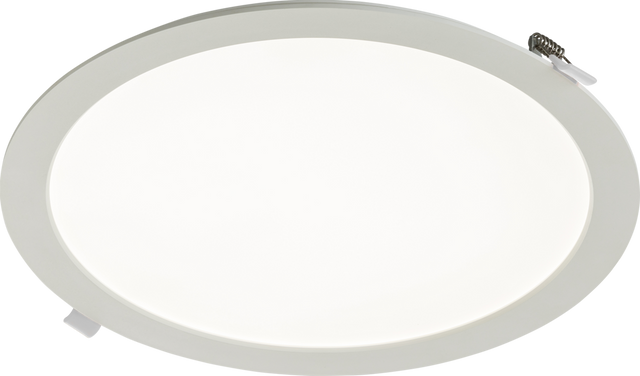

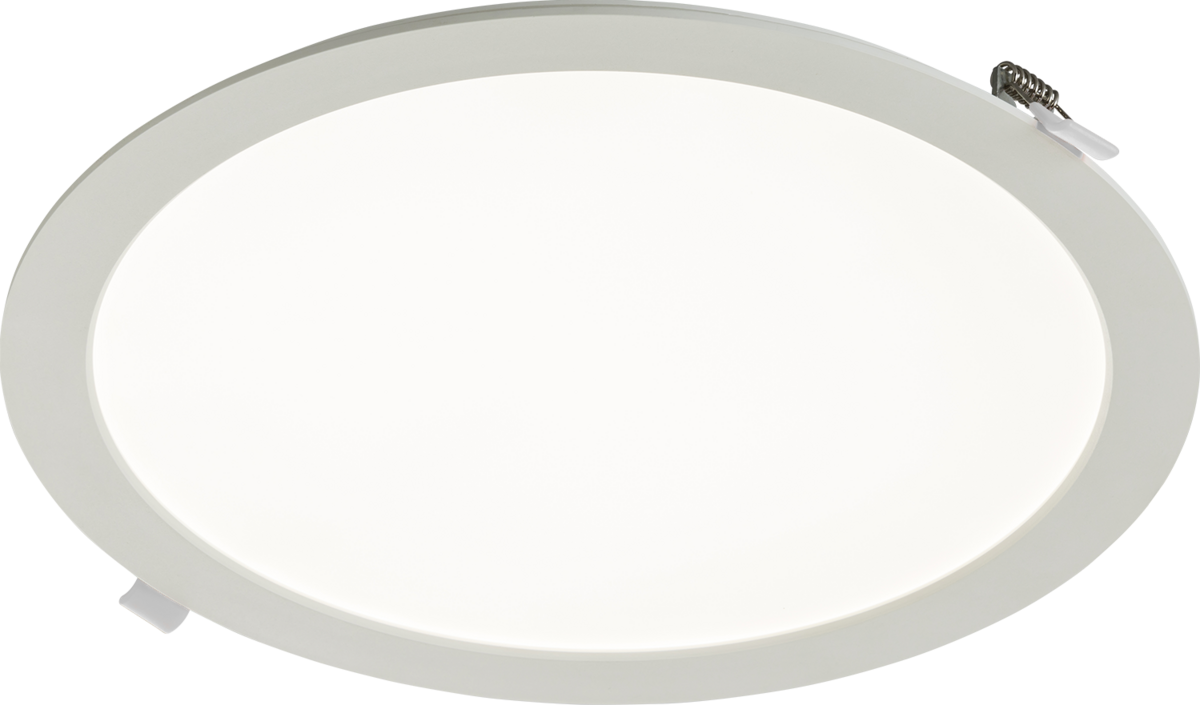

Knightsbridge: KA24CWTD, 24W Dimmable Recessed LED Panel, Cool White, Slim Profile, IP20, 230V
About this product
Knightsbridge's KARA range of LED recessed round panels is an optimal choice for diverse applications, particularly within office or corridor environments.
- Easy to install
- Slim profile panels
- Dimmable*
- Compatible emergency kit available (EMKIT2L)
The edge-lit technology ensures light is evenly distributed, creating a well-lit and visually comfortable environment without dark spots or excess glare.
Available in sizes: 6W, 12W, 18W and 24W.
Rated at 4000K, Cool White with 2360lm output.
*Check compatibility before installation.
Specifications
Dimensions
Lamp
Driver
Luminaire
Photometric
Specifications
Class | II |
---|---|
Finish | White |
IP Rating | IP20 |
Construction | Polycarbonate |
Primary Voltage | 230V 50Hz |

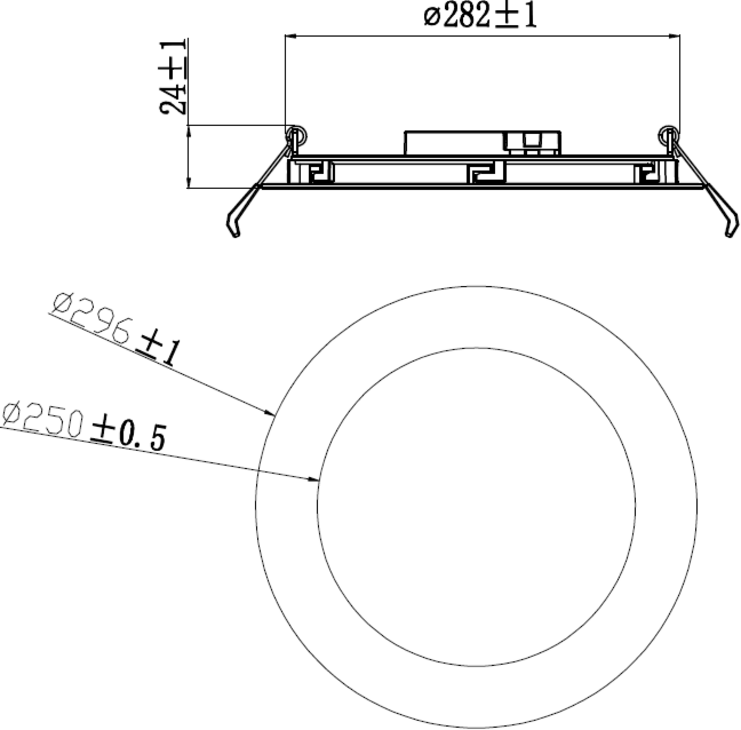

Dimensions
Diameter | 296 mm |
---|---|
Minimum Void | 75 mm |
Recessed Depth | 24 mm |
Cut-out Diameter | 285 mm |
Lamp
L70B50 | 30,000 |
---|---|
Dimmable | Yes* |
Beam Angle | 110 |
Lamp Included | Yes |
Lamp Technology | SMD LED |
Energy Rating (Class) post 2021 SLR | E |
Driver
Driver Type | Constant Current |
---|
Luminaire
Diffuser | Opal |
---|
Photometric
CCT | 4000 K |
---|---|
CRI | >80 |
Lumens | 2270 lm |
Wattage | 24 |
Light Colour | Cool White |
Efficacy (Light source) | 130 lm/W |
Lumens (Light source only) | 2955 lm |
KARA 24W LED Recessed Panel (Dimmable, 4000K) features
