Mercury: 808.115UK, Economy RG6 Coaxial Cable, 75 Ohms, 100m Reel, CCA Braid

Product Overview & Key Benefits

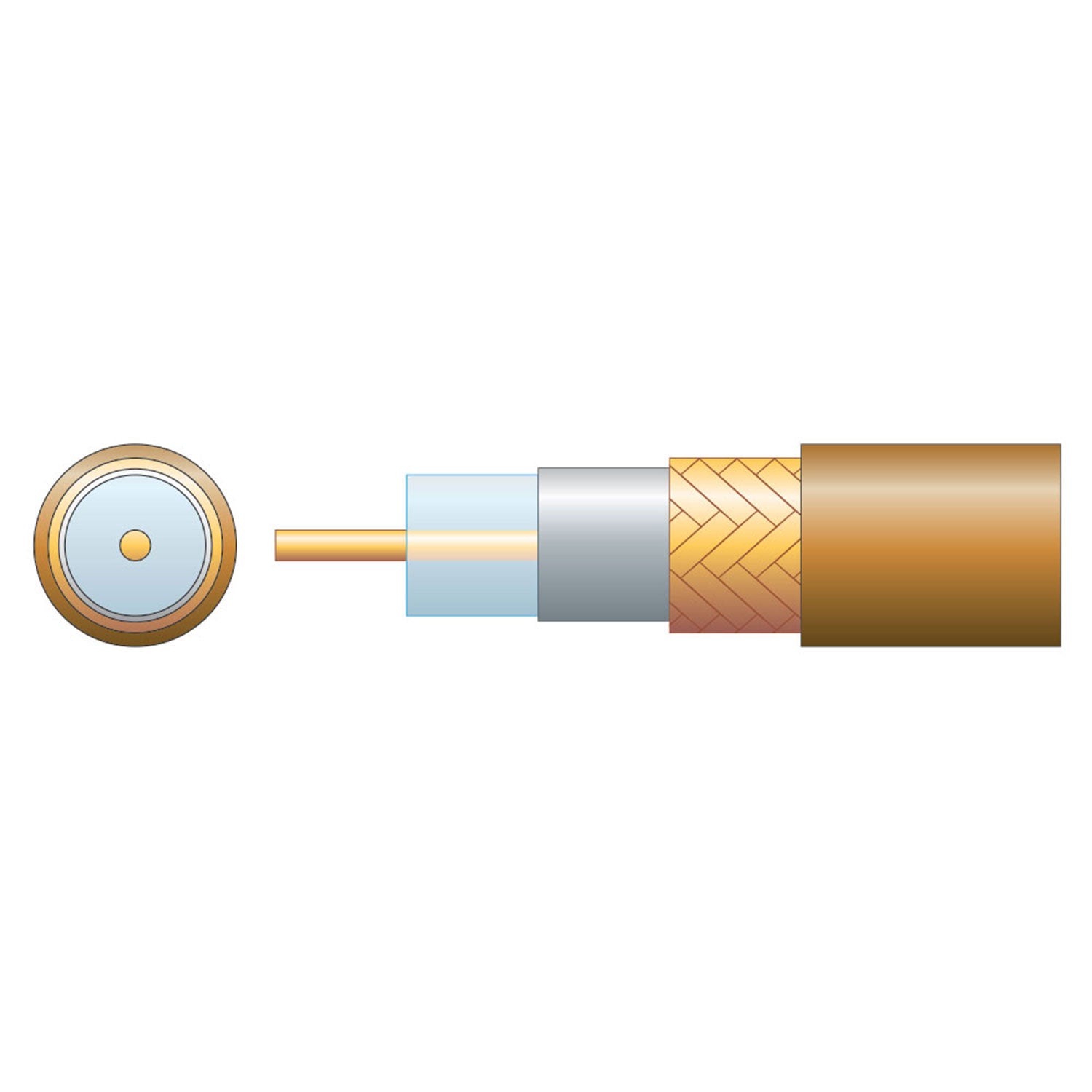

TheEconomy RG6 75 Ohms Air Spaced Coaxial Cable - CCA Braidis a high-performance coaxial cable designed for optimal signal transmission in digital, satellite, and cable TV applications. Built with a solid copper clad steel conductor, this cable incorporates advanced materials that minimise noise interference, ensuring a high-quality viewing experience. This product is perfect for both domestic and commercial users seeking reliable and efficient connection solutions.

Technical Specifications & Product Details

• Supplier SKU:808.115UK
• Length:100m
• Cable Diameter:6.6mmØ
• Conductor Diameter:1mmØ
• Impedance:75 Ohms
• Capacitance:54pF/m
• Velocity Factor:83%
• Braid Type:CCA (Copper Clad Aluminium)
• Braid Material:48 x 0.12mmØ
• Dielectric:4.6mmØ air spaced polyethylene (PE)
• Screen Material:Aluminium / PET foil
• Weight:4.2kg
• Attenuation:@ 5MHz: 2.9dB max./100m@ 50MHz: 5.2dB max./100m@ 100MHz: 6.9dB max./100m@ 200MHz: 10.2dB max./100m@ 400MHz: 14.9dB max./100m@ 860MHz: 20.3dB max./100m@ 1000MHz: 22.5dB max./100m@ 1750MHz: 29.8dB max./100m@ 2150MHz: 33.6dB max./100m
• Return Loss:5-400MHz: 24dB min./100m450-1000MHz: 20dB min./100m1000-2150MHz: 16dB min./100m
• Cable Colour:Brown

Ideal Uses & Applications

TheEconomy RG6 75 Ohms Air Spaced Coaxial Cableis designed to cater to a wide range of installation scenarios. Common applications include:

• Domestic home theatre systems, ensuring high-fidelity audio and visual performance.
• Commercial installations in offices and conference rooms, delivering reliable and clear connection for presentations.
• Community television setups, providing efficient signal distribution for multiple channels.
• Satellite television installations, improving overall signal quality and reducing interference.
• Broadcasting applications, where minimal signal loss is crucial for content delivery.

Energy Efficiency & Cost Savings

Utilising theEconomy RG6 75 Ohms Air Spaced Coaxial Cablenot only enhances signal quality but also promotes energy efficiency in telecommunications systems. High-quality cables can improve transmission efficiency, thus potentially reducing operational costs associated with signal amplification and maintenance. By ensuring better signal clarity, users may also experience fewer disruptions, leading to reduced energy consumption over time. With this cable, users can enjoy measurable benefits, including potential savings on overall service costs.
