Citronic: 170.845UK, CSP Series Compact Powered Mixer, 14 Input, 2 x 350W, DSP Effects

Product Overview & Key Benefits

The CSP Series Compact Powered Mixer with DSP is a dynamic and versatile audio solution designed for various environments. With 14 input channels and powerful amplifying features, this mixer provides exceptional sound quality and control, making it ideal for live performances, mobile PA systems, and hospitality venues. Its compact design allows for easy transportation, while the built-in Digital Signal Processing (DSP) ensures that sound engineers can create professional audio outputs with ease.

Technical Specifications & Product Details

• Model:CSP Series Compact Powered Mixer
• Supplier SKU:170.845UK
• Input Channels:14 inputs (10 XLR/TRS balanced + 2 stereo inputs)
• Amplifier Power:2 x 350W at 4 Ohms
• DSP Effects:16 program DSP with 24-bit processing
• Frequency Response:20Hz to 30kHz (±0.5dB)

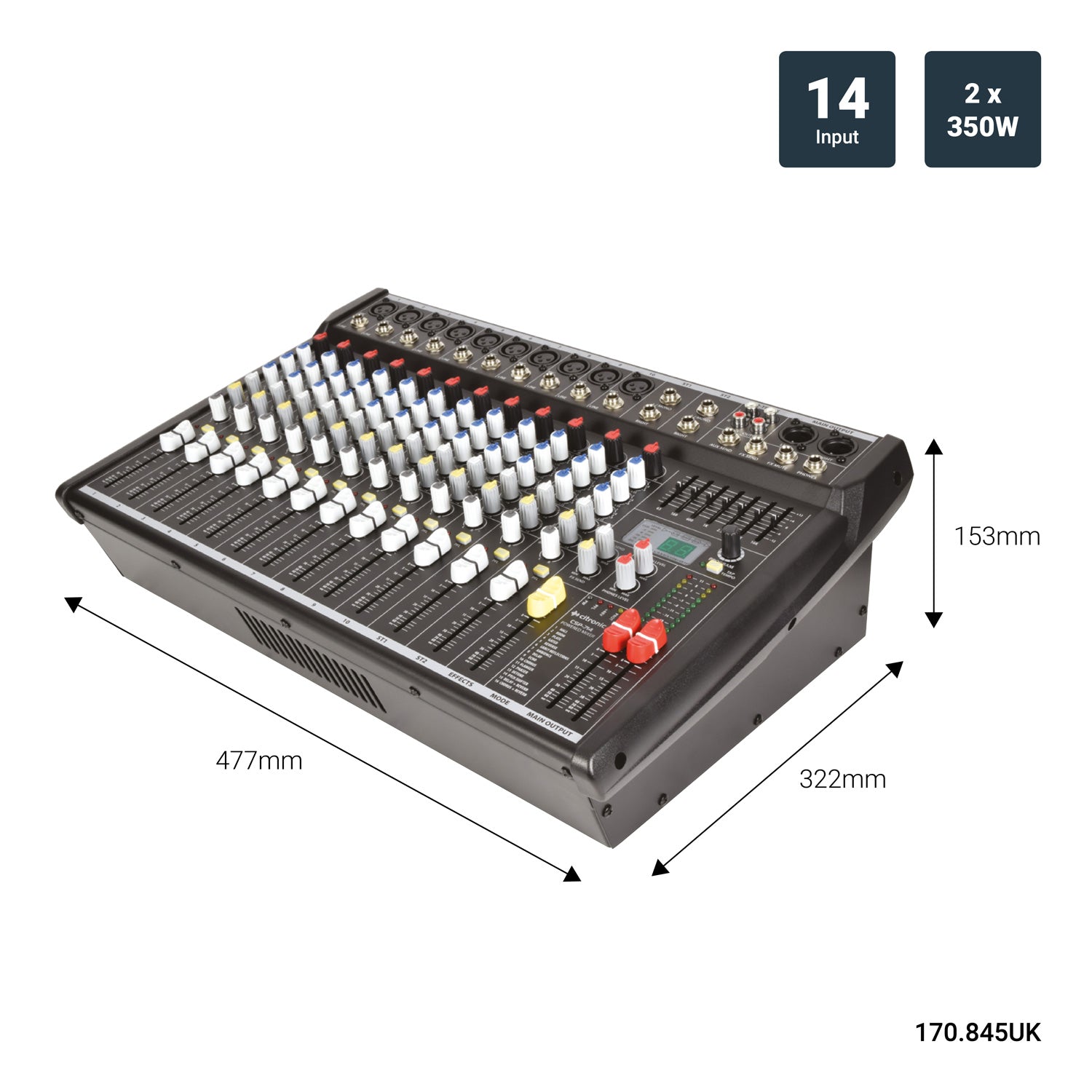

• Dimensions:477 x 322 x 153mm
• Weight:10.40kg
• Power Supply:230Vac 50Hz (IEC)
• Phantom Power:+48V for XLR inputs
• Output Impedance:<75 Ohms
• Noise (rms @ 22Hz-22kHz):-122dBu (EIN)
• Sensitivity:Mic: -60 to +14dBu; Line: -40 to +14dBu
• EQ:3-band per channel, 7-band global graphic EQ
• Inputs Level:+24dBu
• Input impedance:Mic: 2k Ohms; Line: 10k Ohms

Ideal Uses & Applications

This compact powered mixer is perfect for a wide array of applications. Musicians can utilise the CSP mixer for rehearsals and live performances, ensuring high-quality sound with its integrated DSP effects. It's also highly suitable for events hosted in bars, restaurants, or community centres where space is limited but sound quality is essential. The simplicity of operation makes it an excellent choice for both professional audio engineers and novice users alike, bringing capabilities of a large mixer in a portable form.

Energy Efficiency & Cost Savings

With a power consumption of 1000W and an efficient internal amplifier, the CSP Series Compact Powered Mixer helps reduce energy costs significantly. The ability to drive multiple speakers with ease means you can cater to larger audiences without the need for additional equipment. This reduction in additional equipment not only saves on upfront costs but also lowers energy bills during operation. Switching to this efficient mixer can result in potential savings of up to 50 percent on your electricity bills compared to older, less efficient models.
