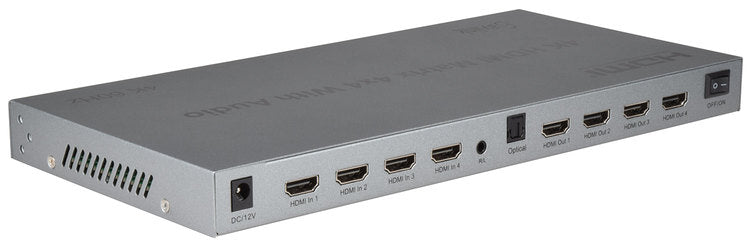

AV:Link: 128.850UK, 4K HDMI Matrix 4x4, Supports 3840 x 2160 @ 60Hz, Remote Controlled, EDID Switch, Metal Chassis

Product Overview & Key Benefits

The4K HDMI Matrix 4x4is an advanced switching solution designed for seamless connectivity between four source devices and four display outputs. This matrix switcher is perfect for entertainment venues, hospitality businesses, and commercial applications that rely on high-quality video and audio transmission. By allowing users to effortlessly manage multiple inputs, it enhances the viewing experience and simplifies device management.

Key benefits include:

• Support for the latest 4K resolutions
• Simultaneous audio output options
• Easy installation and operation

Technical Specifications & Product Details

• Weight:720g
• Dimensions:276x143x26mm
• Audio Format:DTS-HD, Dolby TrueHD, LPCM7.1, DTS, Dolby-AC3, DSD
• HDCP Version:2.2
• Power Adaptor:Input AC (50Hz, 60Hz) 100-240V, Output DC12V/1A
• Max. Baud Rate:18Gbps
• Display Colours:8/10/12-bit deep colour
• Max. Resolution:3840 x 2160 @ 60Hz
• Battery (Remote):2x AAA (not supplied)
• Input Connections:4x HDMI
• Output Connections:4x HDMI, Optical (Toslink), 3.5mm Stereo
• Max. Working Current:800mA
• Transmission Distance:30m max at 4K @ 30Hz and FHD, or 10m max at 4K @ 60Hz
• Operating Temperature Range:-15°C to +55°C

Ideal Uses & Applications

The 4K HDMI Matrix 4x4 is particularly suited for a variety of contexts:

• Domestic DIY:Perfect for home theatres where multiple devices need to be connected without hassle.
• Commercial Buildings:Excellent for meeting rooms and conference halls where presentations from different devices are required.
• Hospitality Settings:Ideal for bars, restaurants, and hotels where different media sources need to be displayed across multiple screens.
• Offices:A great addition to office spaces for seamless integration of projectors and displays during meetings.

Energy Efficiency & Cost Savings

The4K HDMI Matrix 4x4not only ensures high-quality video transmission but also brings energy-saving features to the forefront. By consolidating multiple devices into a single matrix, users can save on energy costs associated with powering several devices independently. Utilising efficient power conversion, it helps reduce overall consumption while extending the lifetime of your equipment, ultimately leading to substantial savings on electricity bills.

In summary, this HDMI matrix switcher serves as an essential tool for both residential and commercial users looking to enhance their audiovisual experience efficiently and effectively.
