Adastra: 953.506UK, 19" Rack Cabinet, 6U, 450mm Depth, Cold-Rolled Steel, Lockable Glass Door
About this product
19" Rack Cabinets provide an ideal solution for housing rack-mount equipment, featuring durable construction and versatile access options.
- Constructed from cold-rolled steel with folded edges

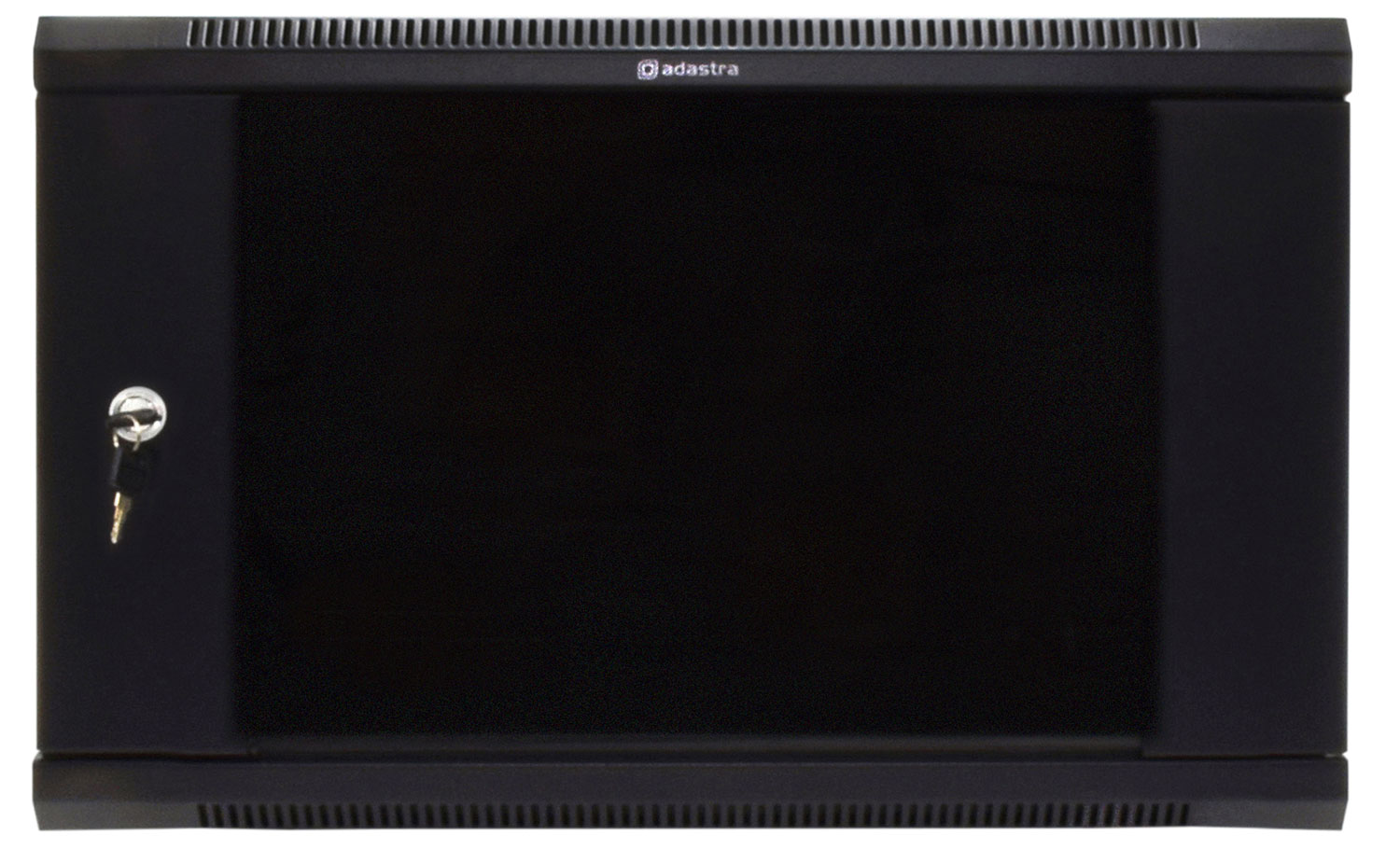

- Lockable front door with 5mm tempered glass

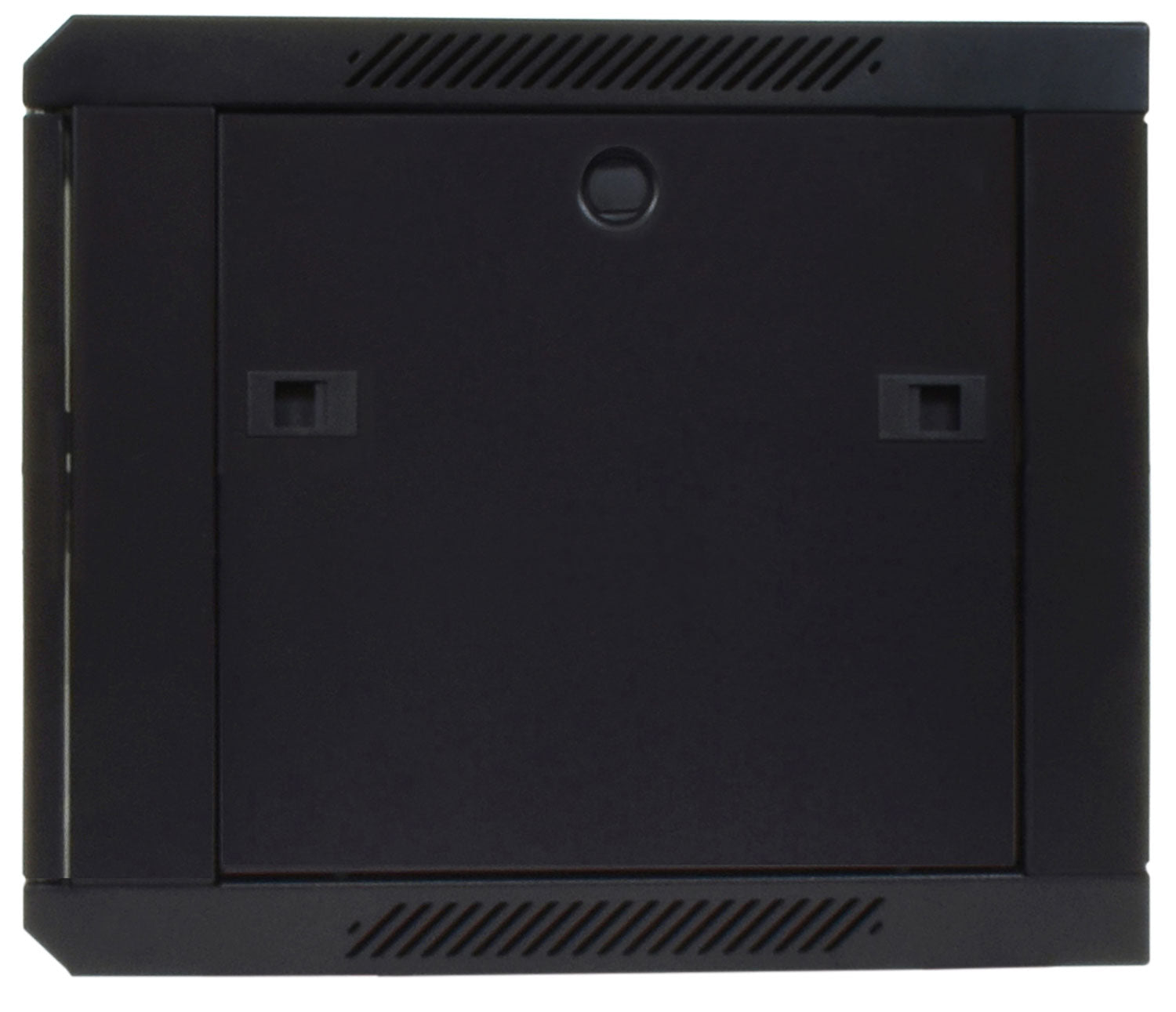

- Removable side panels for easy access
- Supports wall mounting or free-standing use
- Vented top panel for enhanced airflow and fan compatibility
- Adjustable depth for various equipment sizes
Perfect for professional installations, offering secure containment for essential equipment.
-
Download
- Instruction Manual
Specifications
Specifications

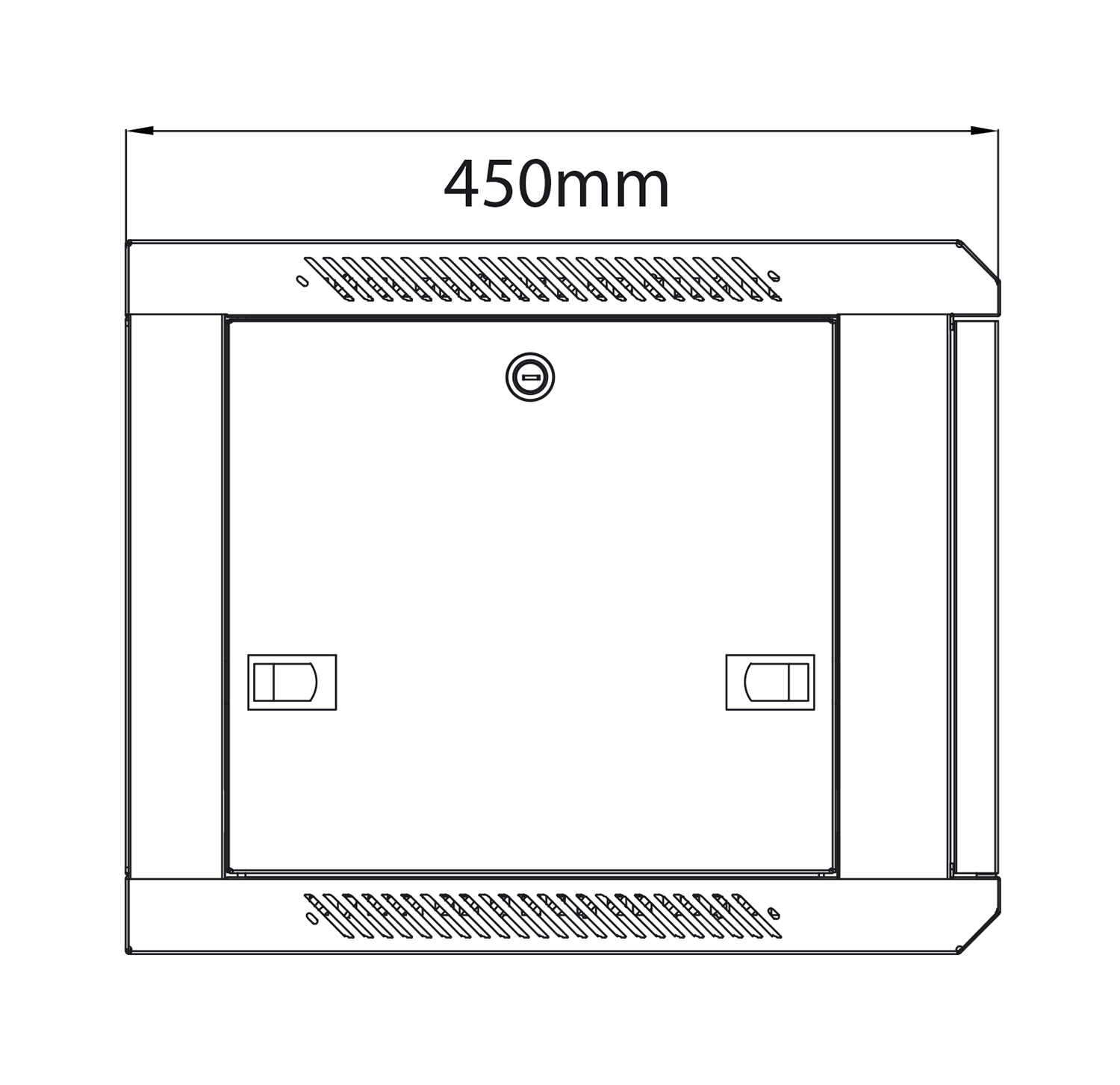

Depth | 450 mm |
---|---|

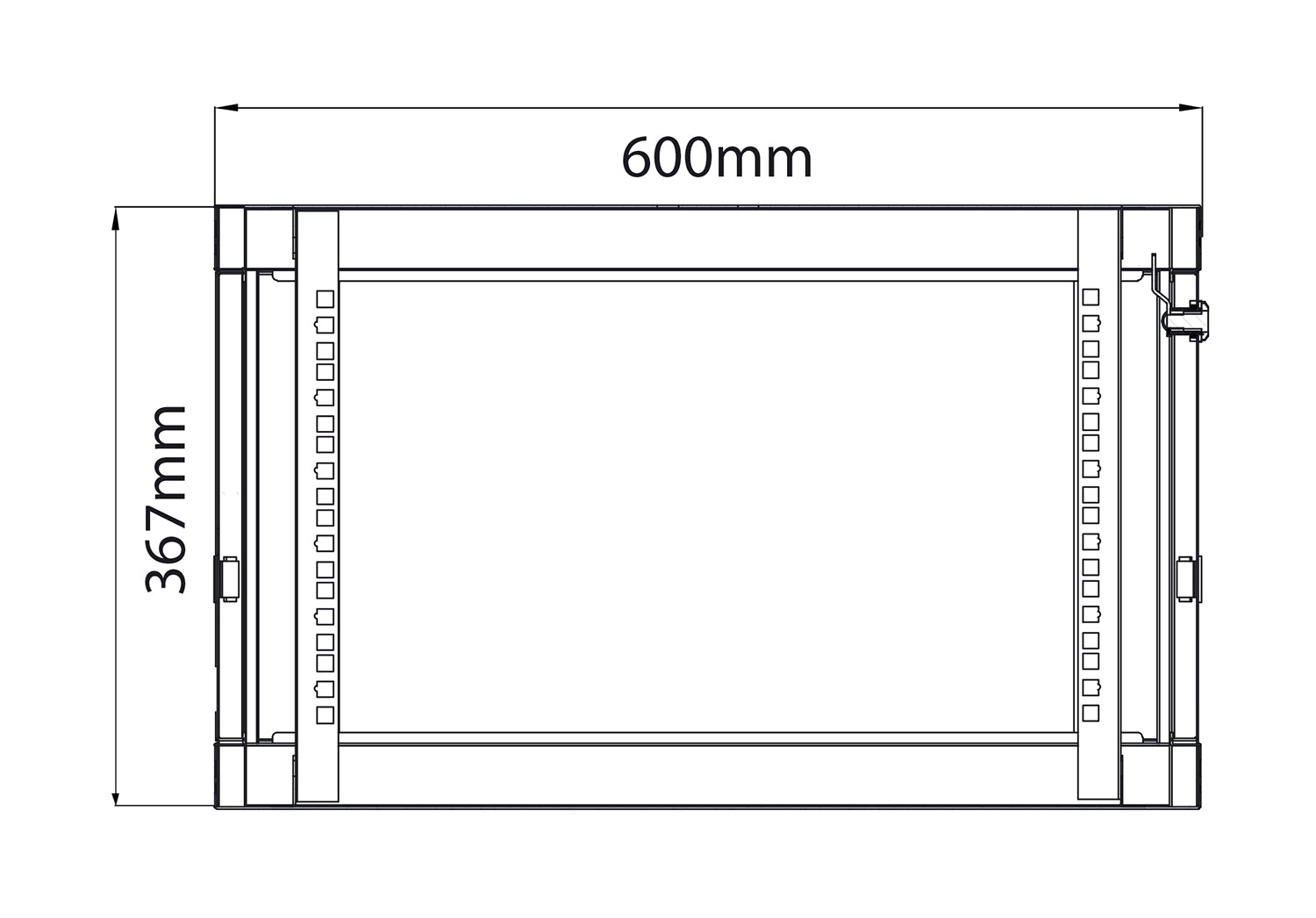

Width | 600 mm |
Finish | Epoxy powder coated RAL9004 |
Height | 367 mm |
Material | 1.2 mm cold rolled steel & 5 mm tempered glass |
Standard | ANS/EIA RS-310-D, IEC297-2, DIN41491, PART1, DIN41491, PART7, ETSI compliant |
Rack height | 267 mm (6U) |
Maximum load | 100 kg static (total) |
Mounting depth | 370 mm |
