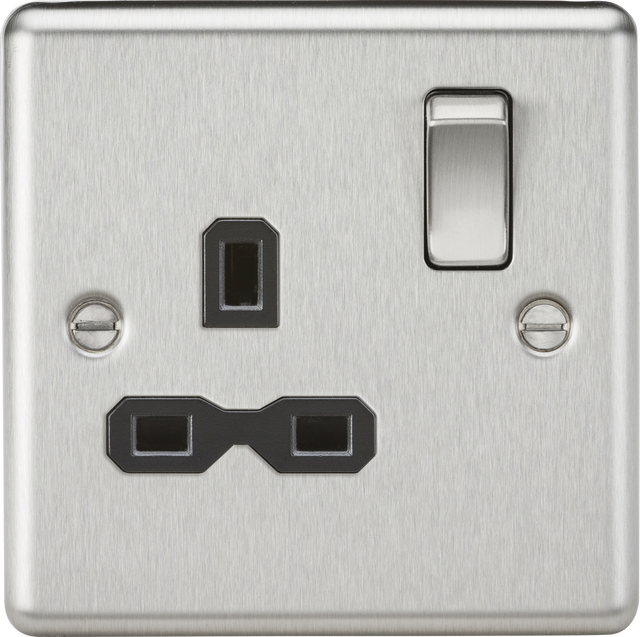

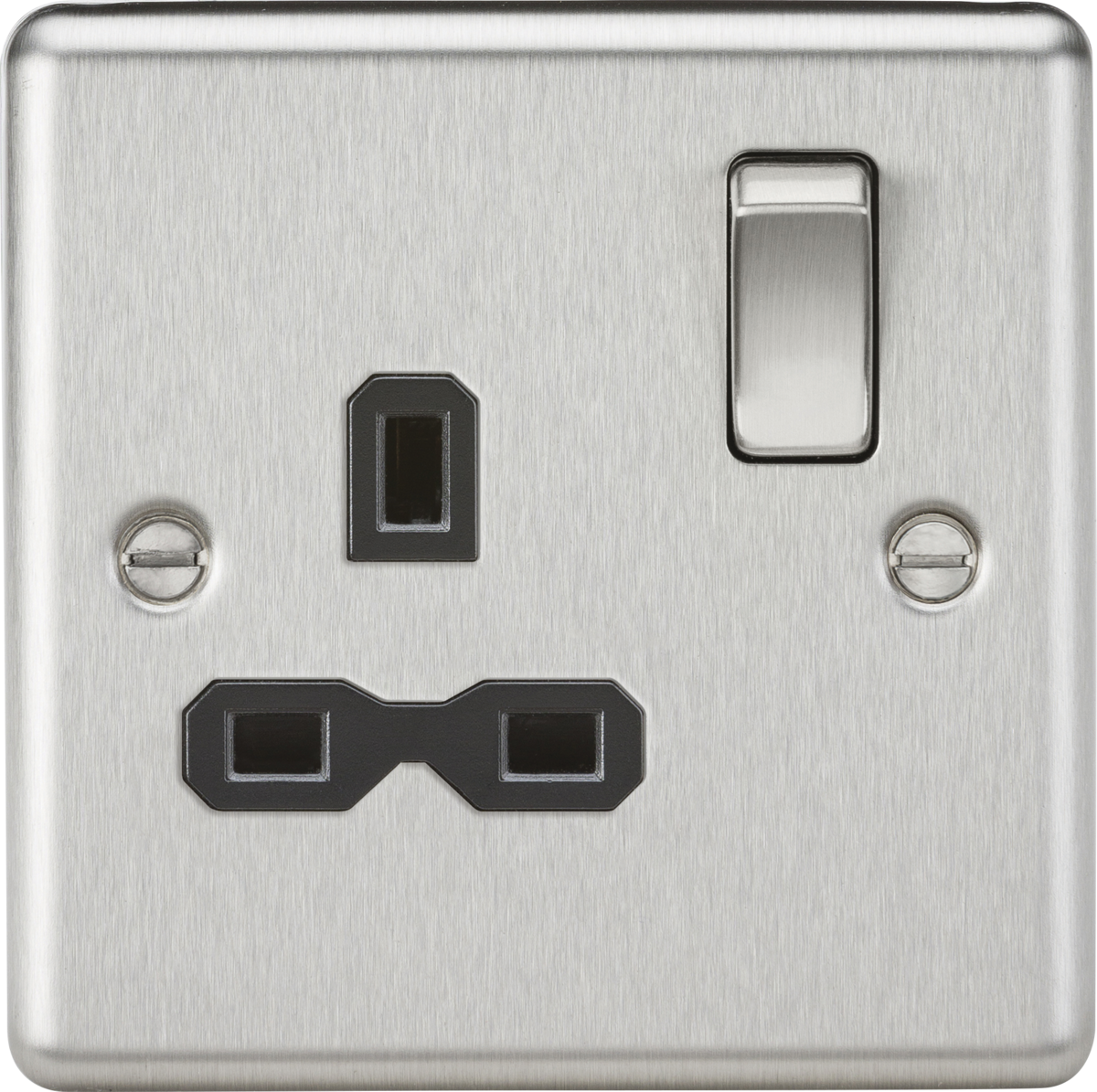

Knightsbridge: CL7BC, 13A DP Switched Socket, 1G, Double Pole, Rounded Edge, Brushed Chrome with Black Insert, 230V, 10A
About this product
The 13A 1G DP Switched Socket in Brushed Chrome with Black Insert is designed to add a modern touch to any home. This rounded edge socket not only provides elegance but also ensures safety and functionality.
- 13A Switched Socket for reliable performance
- Double Pole Switch for enhanced safety
- Rounded Edge design with built-in gasket
- Certified to BS 1363:2 compliance standards
- Minimum mounting box depth of 25mm
Installation should adhere to local wiring regulations for optimal safety and efficiency.
Specifications
Dimensions
Wiring-accessories
Specifications
Class | I |
---|---|
Finish | Brushed Chrome |
IP Rating | IP20 |
Construction | 304 Stainless steel |
Primary Voltage | 230V 50Hz |

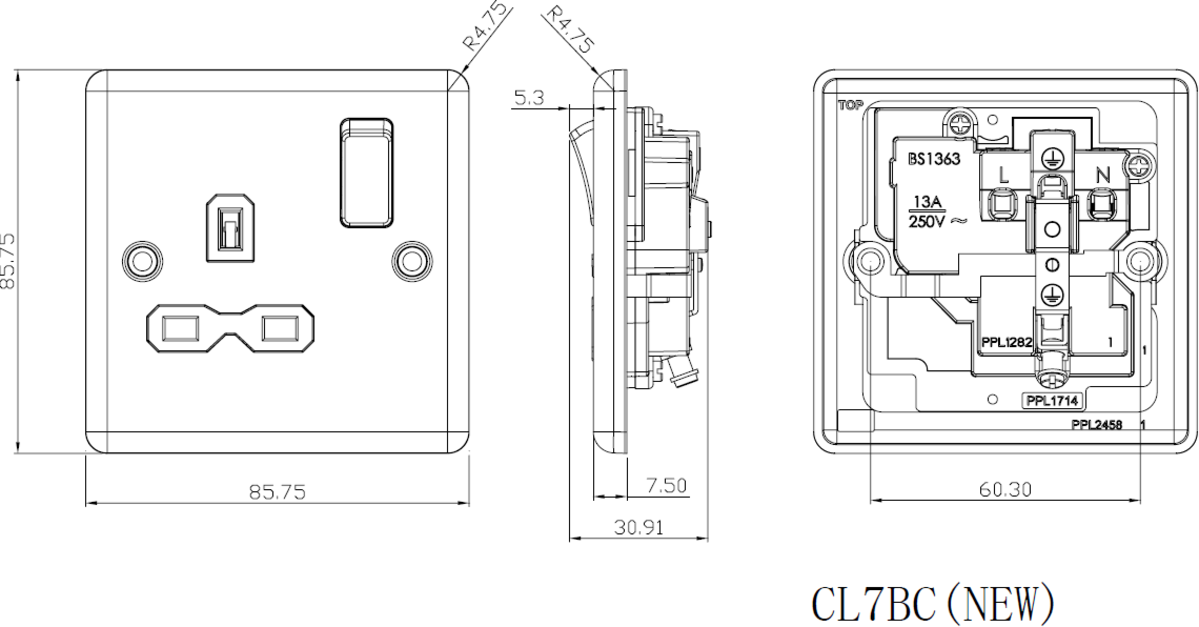

Dimensions
Depth | 30.91 mm |
---|---|
Width | 85.75 mm |
Height | 85.75 mm |
Projection | 12.8 mm |
Plate Depth | 7.5 mm |
Min. Mounting Box Depth | 25mm |
Wiring-accessories
Earth Terminal | Yes |
---|
13A 1G DP Switched Socket - Brushed Chrome features
