Knightsbridge: OSPCR, 230V 5A IP65 Photocell Sensor, Automatic Outdoor Lighting Control, 500W Load

Visit Knightsbridge Electrical – Lighting, Wiring Accessories & More | WME
Automated Lighting
£ 7 01
(Incl. VAT) RRP: £8.06
2 Years Warranty
230V 5A Photocell Switch
About this product

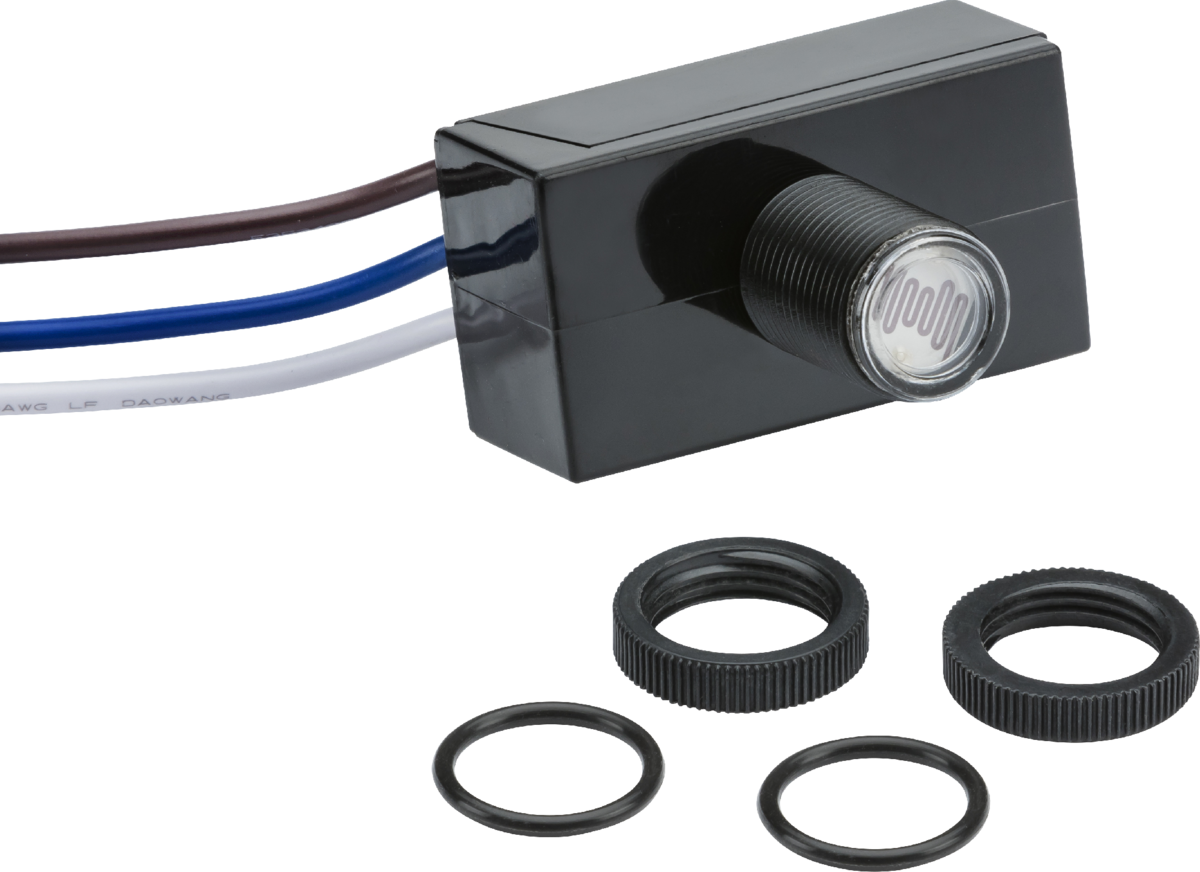

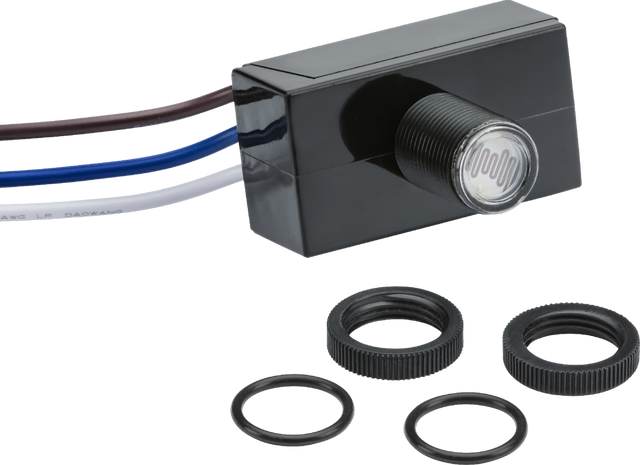

The 230V 5A IP65 Photocell Switch is your ideal solution for automatically controlling outdoor lighting based on ambient light levels. A perfect choice for both residential and commercial settings, this photocell sensor features:

  • Direct wire-in thermal photodiode design
  • IP65 rated once installed, ensuring durability and protection against the elements
  • Max load handling of 500W incandescent or 850VA inductive
  • Operating range from 10-20 lux for activation and 30-60 lux for deactivation
  • Adjustable time delay between 20-120 seconds
  • Operates in extreme temperatures from -40°C to 70°C
  • Complete with pre-wired 300mm cable and included seals and locknuts for easy installation

Ensure compliance with electrical standards and consider safety precautions when installing.

£ 7 01
FAST delivery by Order within
Ships from United Kingdom
14 days returns or replacements
Secure payment transactions
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Info about this product
Technical Details
Specifications
Class
II
Finish
Black
IP Rating
IP65
Cable Length
0.3 m
Construction
Polycarbonate
Primary Voltage
230V 50Hz

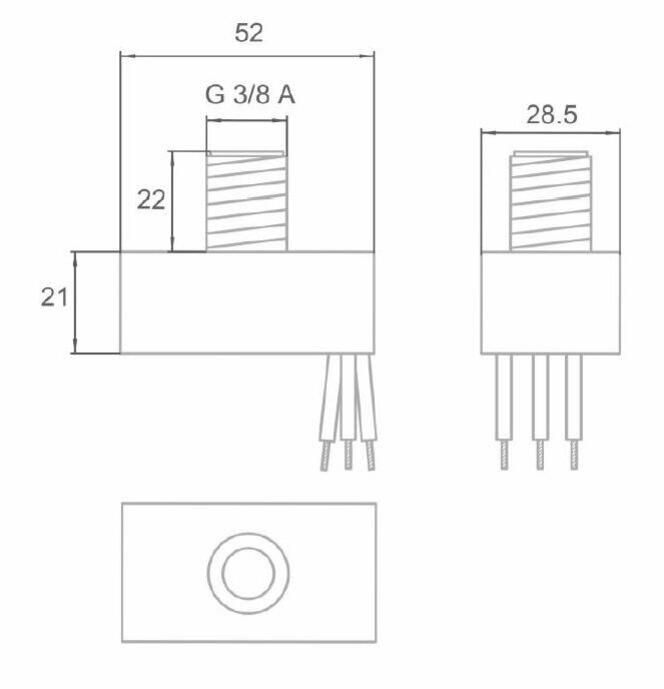

Dimensions
Width
29 mm
Length
52.5 mm
Projection
21 mm
Cut-out Diameter
17 mm
Min. Mounting Box Depth
25mm
Specifications
Dimensions

Specifications

Class II
Finish Black
IP Rating IP65
Cable Length 0.3 m
Construction Polycarbonate
Primary Voltage 230V 50Hz

Dimensions

Width 29 mm
Length 52.5 mm
Projection 21 mm
Cut-out Diameter 17 mm
Min. Mounting Box Depth 25mm

230V 5A Photocell Switch features

230V 5A IP65 Photocell Switch

Knightsbridge: OSPCR, 230V 5A IP65 Photocell Sensor, Automatic Outdoor Lighting Control, 500W Load

Product Overview & Key Benefits

The230V 5A IP65 Photocell Switchis designed to automatically manage outdoor lighting based on ambient light levels, making it a remarkable choice for both residential and commercial environments. This innovative photocell sensor enhances convenience by activating lighting as dusk falls and deactivating when dawn approaches, ensuring energy efficiency and safety.

Technical Specifications & Product Details

  • Voltage:230V, 50Hz
  • Current Rating:5A
  • Load Capacity:500W (incandescent) / 850VA (inductive)
  • IP Rating:IP65 (providing protection against dust and water)
  • Temperature Range:-40°C to 70°C
  • Dimensions:Width 29mm, Length 52.5mm, Projection 21mm, Cut-out Diameter 17mm, Minimum Mounting Box Depth 25mm
  • Cable Length:0.3m (comes with pre-wired cable)
  • Time Delay:Adjustable from 20 to 120 seconds

Ideal Uses & Applications

This photocell switch is suitable for diverse applications, including:

  • Residential outdoor lighting, providing automation for garden lights and pathways
  • Commercial outdoor areas such as parking lots, ensuring lights operate only when necessary
  • Hospitality venues, like restaurants with patios, enhancing guest safety and experience

Energy Efficiency & Cost Savings

With the230V 5A Photocell Switch, you can achieve significant energy savings by ensuring lights are only on when needed. This not only reduces electricity consumption but also contributes to lower utility bills and a greener environment. By utilising this automated solution, you can save up to 50% on electricity costs associated with outdoor lighting.

Installation Tips

For optimal safety and performance, ensure compliance with electrical standards during installation. The unit comes with seals and locknuts for straightforward setup, allowing for seamless installation in various outdoor settings.

Warranty Information

The 230V 5A IP65 Photocell Switch is backed by a 2-year warranty, providing assurance of its durability and reliability.
