QTX: 172.025UK, QA Series Power Amplifier, 1000W, Dual Channel, Rack Mountable
About this product
QA Series Power Amplifiers
Professional dual channel power amplifiers delivering high quality, dependable performance at an accessible price. Design of these workhorse amplifiers has been focused upon high power delivery without over-complicated features adding excessive costs. Yet still, these units are furnished with multiple connection possibilities and self protection circuitry to ensure that they will deliver, whatever the application.
- High power delivery
- Overheat/overload protection
- Multiple input and output connection types
- Balanced and unbalanced inputs
- 2U 19" rack mountable
Specifications
Specifications
SNR | 90dB |
---|---|
THD | 0.25% |
Inputs | Combo (6.3mm jack + XLR) and RCA |

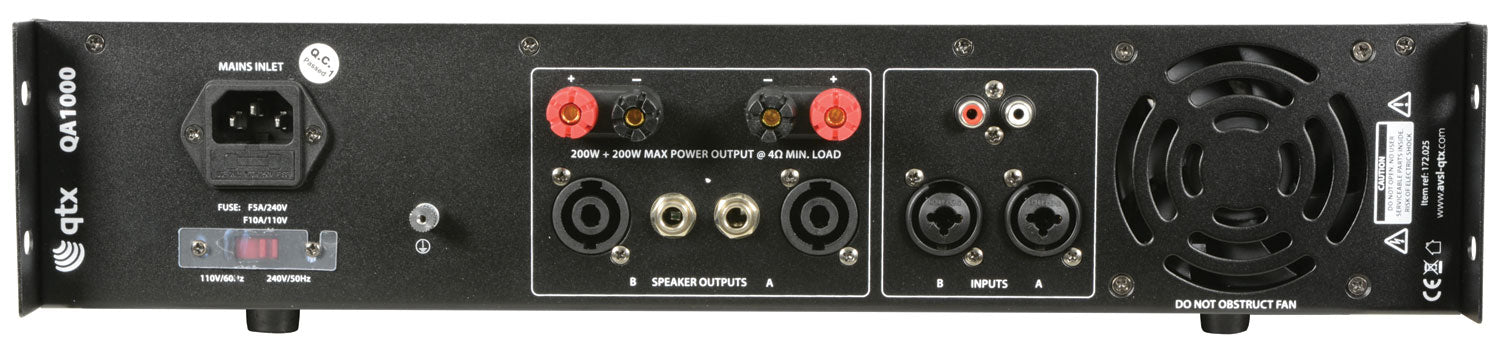

Outputs | SPK, 6.3mm jack and 4mm binding posts |
Power rms @ 4 Ohms | 2 x 250W |
Power rms @ 8 Ohms | 2 x 170W |
Power max. @ 4 Ohms | 2 x 500W |
Fuse rating | T5A (240V) / T10A (110V) |
Power supply | 110/240Vac, 50/60Hz (IEC) |
QA Series 1000W Power Amplifier features
