Adastra: 953.173UK, UM Series Ultra Compact Mixer-Amplifier, 30W, 100V, USB/BT, Bluetooth 5.0, 1U Rack Mount

Visit Adastra Amplifiers | High-Performance Sound Solutions for Home & Commercial Use
Compact Size
£ 122 96
(Incl. VAT) RRP: £144.65

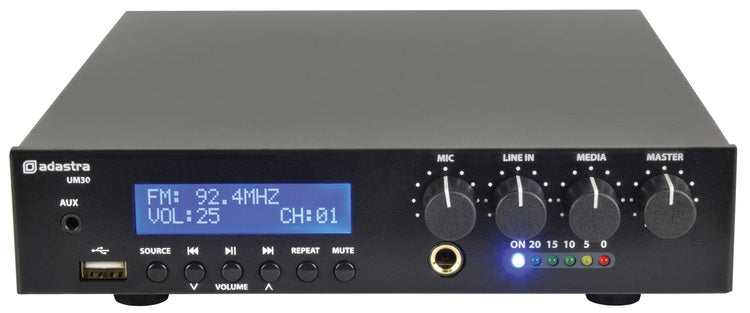

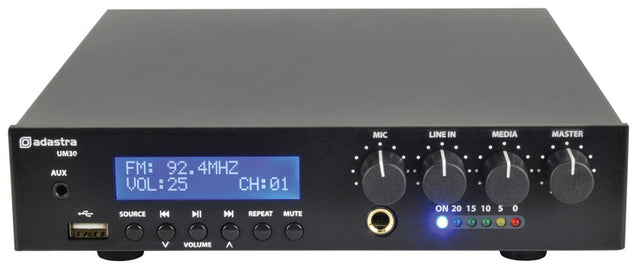

Ultra Compact Mixer-Amplifier (30W, 100V, BT)
About this product

UM Series Ultra Compact Mixer-Amplifiers 100V

Introducing the UM Series Ultra Compact Mixer-Amplifiers, engineered for seamless PA installations. With a compact form factor, these 100V mixer-amplifiers integrate a USB audio player, FM tuner, and Bluetooth wireless receiver, all within a single housing.

  • Ultra compact design for space-saving installations
  • Efficient Class D amplification for superior performance
  • Integrated USB/FM/Bluetooth audio player for versatile playback options
  • Supports both 100V line and 8 Ohms speaker operation
  • Bluetooth functionality with programmable ID for easy connectivity

Perfect for small to medium PA systems, these mixer-amplifiers feature a microphone input and line input governed by intuitive front panel controls, accommodating various audio requirements.

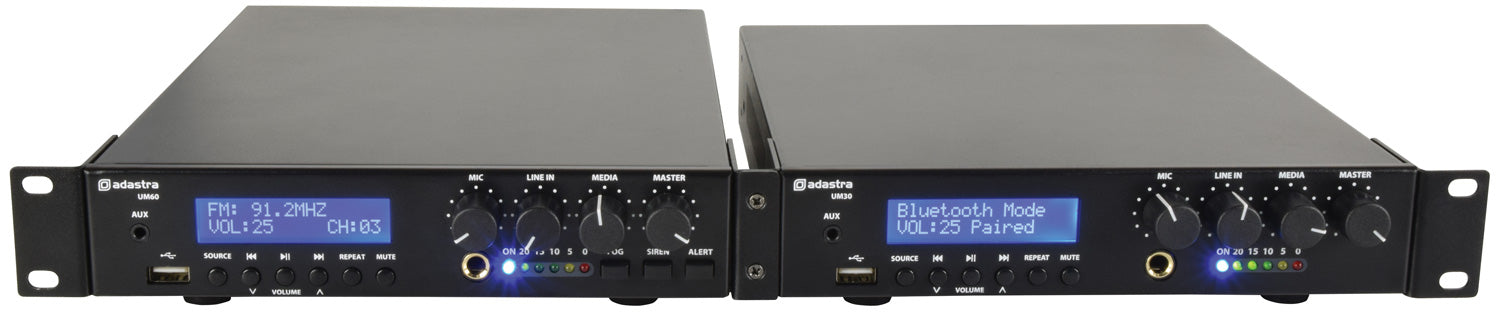

The output options include mono to a 100V line or direct to an 8 Ohm speaker load, ensuring flexibility and compatibility with existing installations. Mounting hardware is provided for easy installation in standard 1U 19" rack spaces.

Designed with installer-friendly features, including a reliable power supply and comprehensive control inputs, the UM Series is the ideal solution for modern audio applications.

£ 122 96
FAST delivery by Order within
Ships from United Kingdom
14 days returns or replacements
Secure payment transactions
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Output Power
30 W
Frequency Response
100 Hz - 18 kHz
Total Harmonic Distortion (THD)
<0.4% @ 1kHz
Signal-to-Noise Ratio (SNR)
80 dB (line), 75 dB (mic)
Input Sensitivity
-10 dB (line), -45 dB (mic)
Inputs
1 x mic (6.3mm), 1 x line (2 x RCA), 1 x aux (3.5mm)
Bluetooth Version
5.0
Speaker Outputs
Screw terminals - 100V / 8 Ohms / Com
DC Power
24 Vdc screw terminals
Power Supply
170-264 Vac, 50 Hz (IEC) or 24 Vdc
Specifications

Specifications

Output Power 30 W
Frequency Response 100 Hz - 18 kHz
Total Harmonic Distortion (THD) <0.4% @ 1kHz
Signal-to-Noise Ratio (SNR) 80 dB (line), 75 dB (mic)
Input Sensitivity -10 dB (line), -45 dB (mic)
Inputs 1 x mic (6.3mm), 1 x line (2 x RCA), 1 x aux (3.5mm)
Bluetooth Version 5.0
Speaker Outputs Screw terminals - 100V / 8 Ohms / Com
DC Power 24 Vdc screw terminals
Power Supply 170-264 Vac, 50 Hz (IEC) or 24 Vdc

Ultra Compact Mixer-Amplifier (30W, 100V, BT) features


Adastra: 953.173UK, UM Series Ultra Compact Mixer-Amplifier, 30W, 100V, USB/BT, Bluetooth 5.0, 1U Rack Mount

Product Overview & Key Benefits

The UM Series Ultra Compact Mixer-Amplifiers 100V is the perfect solution for small to medium public address (PA) installations. Engineered to deliver exceptional audio performance in a space-saving design, this unit includes a USB audio player, FM tuner, and a Bluetooth wireless receiver, making it incredibly versatile for various audio needs. Its ultra-compact housing ensures that it fits seamlessly into any environment, from domestic settings to commercial spaces.

  • Compact and efficient design perfect for tight spaces.
  • Integrated audio playback options including USB, FM, and Bluetooth.
  • Easy control with front panel volume adjustments.

Technical Specifications & Product Details

  • Model:UM Series Ultra Compact Mixer-Amplifiers 100V
  • Variant:30W
  • Power Output (RMS):30W
  • Signal-to-Noise Ratio (SNR):80dB (line), 75dB (mic)
  • Total Harmonic Distortion (THD):<0.4% @ 1kHz
  • Inputs:1 x mic (6.3mm), 1 x line (2 x RCA), 1 x aux (3.5mm)
  • Weight:2.35kg

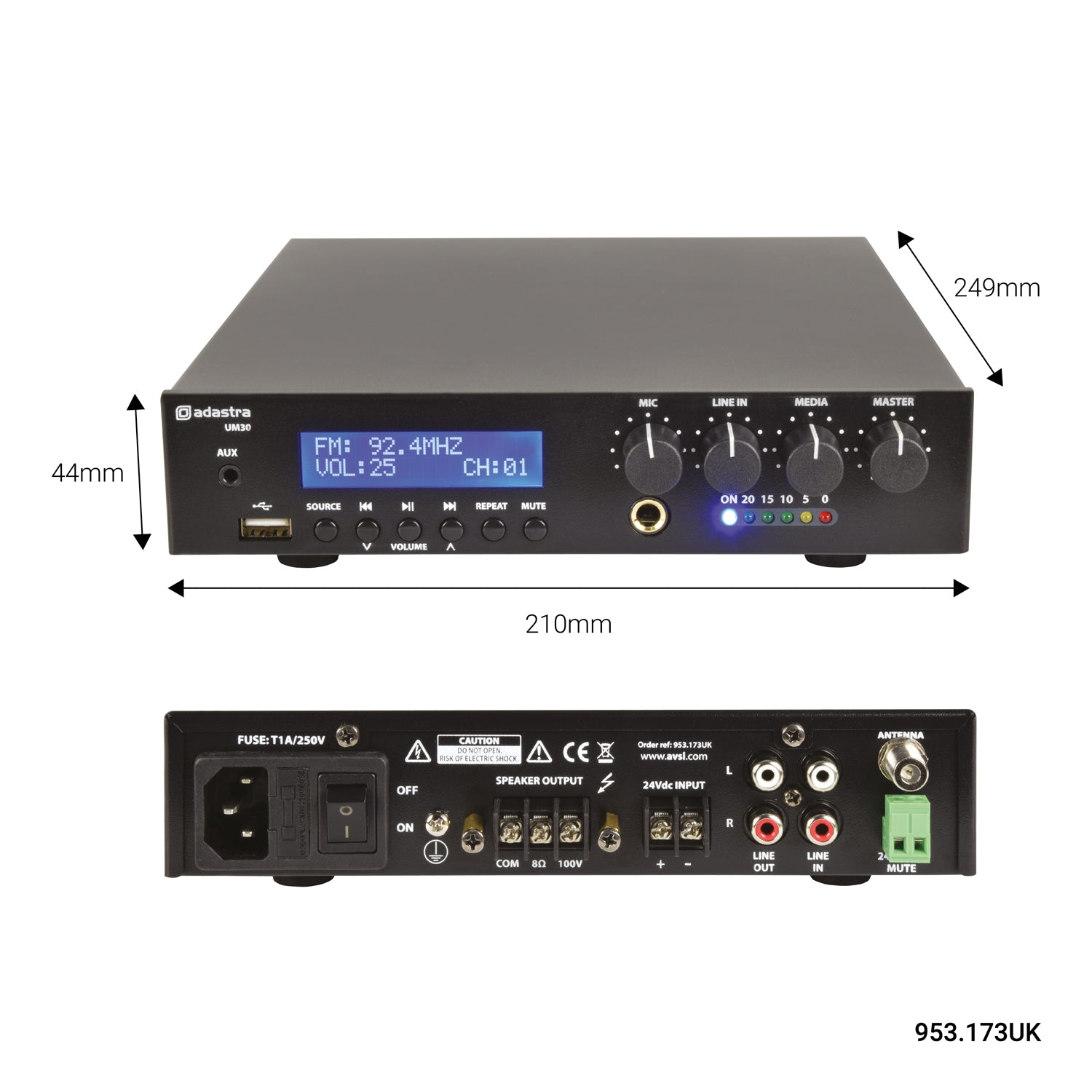

  • Dimensions:249 x 210 x 44mm
  • Power Supply:170-264Vac, 50Hz (IEC) or 24Vdc
  • Bluetooth Version:5.0
  • Speaker Outputs:Screw terminals - 100V / 8 Ohms / Com

Ideal Uses & Applications

The UM Series Ultra Compact Mixer-Amplifier is ideal for a wide range of applications. Suitable for:

  • Domestic DIY Projects:Whether you're setting up a home theatre system or simply wish to amplify audio in your living space, this mixer-amplifier offers an effortless solution.
  • Commercial Installations:Great for retail spaces, restaurants, and hotels requiring background music and announcements. The compact design ensures that it can be easily integrated into various building layouts.
  • Corporate Events:Its powerful performance and multiple input options make it an excellent choice for conferences, meetings, and events.

Energy Efficiency & Cost Savings

The UM Series Ultra Compact Mixer-Amplifier is built with energy efficiency in mind. Utilising a Class D amplifier design, it produces high-quality audio without excessive power consumption. This efficiency translates to lower running costs, allowing you to save on electricity bills while enjoying clear sound. For users concerned about their environmental footprint, choosing this mixer-amplifier represents a responsible branding decision, positioning your business as eco-conscious.
