Adastra: 953.224UK, RM-series 100V Mixer-Amplifier, DAB+, BT, 120W, 5-Channel, Rack-Mountable

Product Overview & Key Benefits

The RM-series 100V Mixer-Amplifier with DAB+, BT, USB/SD is a powerful and versatile 5-channel mixer-amplifier designed specifically for commercial sound installations. This professional-grade audio solution is perfect for venues needing to power 100V line speakers as well as standard speakers with a minimum impedance of 4 Ohms. Its multifaceted input options and robust features, including Bluetooth connectivity and an inbuilt DAB+/FM radio tuner, make it an optimal choice for businesses that require reliable sound distribution across various environments.

Technical Specifications & Product Details

• Model:RM-series 100V Mixer-Amplifier
• Music Output Power:120W RMS
• Total Harmonic Distortion (THD):<1.0%
• Fuse:T3.15A
• Weight:6.36kg (total product weight: 8.6265kg)
• Dimensions:433 x 320 x 88mm (Width x Depth x Height)
• Input Options:Mic XLR (with +20V phantom power), 2 x mic/line jack, 2 x RCA line

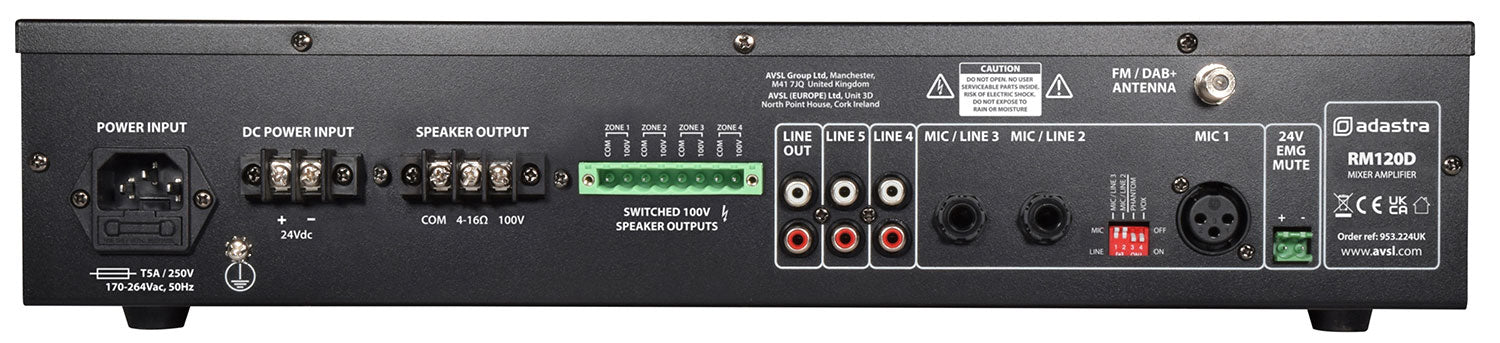

• Speaker Outputs:4 switched outputs for 100V / 4-16 Ohms, plus 1 non-switched output
• Power Supply:170-264Vac, 50Hz (IEC) or 24Vdc
• Bluetooth Version:5.0
• Equalizer:Bass: 100Hz ±10dB, Treble: 10kHz ±10dB
• Emergency Control:24V contacts for mute functionality
• Rear Panel Controls:Phantom, Vox, Mic/Line (2 + 3)
• Audio Sources:DAB+/FM tuner, USB/SD player, Bluetooth receiver

Ideal Uses & Applications

The RM-series 100V Mixer-Amplifier is an excellent choice for various applications found across both commercial and hospitality sectors. Its 5-channel capacity makes it ideal for use in:

• Domestic DIY Projects:Fit for home audio systems where balanced sound distribution is needed.
• Offices:Ensure clear sound during meetings, presentations, or in common areas with background music.
• Commercial Buildings:Efficiently manage sound across multiple zones in retail stores or shopping centres.
• Hospitality Settings:Perfect for restaurants, cafes, or bars, bringing ambiance through versatile audio options.
• School and Educational Institutions:Excellent for auditoriums or classrooms requiring amplified sound for clear communication.

Energy Efficiency & Cost Savings

The RM-series Mixer-Amplifier not only delivers exceptional audio quality, but it is also designed with energy efficiency in mind. With its highly effective power management features, users can expect tosave up to 50 percent on energy costscompared to traditional amplifiers. By utilizing a power supply of 170-264Vac or the option for 24Vdc, this mixer-amplifier not only reduces electricity usage but also contributes to a greener environment.

In addition to cost savings on energy, the durability and reliability of the RM-series ensure low maintenance costs over time, making it a prudent investment for businesses investing in high-quality audio solutions.
