Mercury: 808.127UK, Economy Twin RG6 Coaxial Cable, 75 Ohms, Black, 100m

Product Overview & Key Benefits

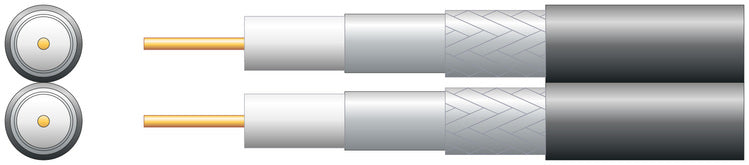

The Economy Twin RG6 75 Ohms Foam Filled Coaxial Cable - Aluminium Braid is a high-quality, durable coaxial cable designed for optimal signal transmission in various applications. This cable is perfect for those requiring an efficient solution for satellite dish installations, particularly where dual or quad LNBs are involved. Offering reduced noise penetration and enhanced performance, this coaxial cable is ideal for both domestic and professional settings.

Technical Specifications & Product Details

• Model:Economy Twin RG6
• Supplier SKU:808.127UK
• Colour:Black
• Length:100m
• Weight:7.7kg
• Diameter:2 x 6.6mm Ø
• Conductor Material:Solid Copper Clad Steel (CCS)
• Dielectric:4.6mm Ø foam PE
• Braid Material:Aluminium
• Screen:Aluminium / PET foil
• Capacitance:54pF/m
• Impedance:75 Ohms
• Velocity Factor:83%
• CSA:2 x 0.79mm²
• Braid:2 x 64/0.12mm Ø
• Dimensions:150mm (width) x 300mm (height) x 300mm (length)
• Attenuation @ 5MHz:2.8dB max./100m
• Attenuation @ 50MHz:5.1dB max./100m
• Attenuation @ 100MHz:6.9dB max./100m
• Attenuation @ 200MHz:10.1dB max./100m
• Attenuation @ 400MHz:14.9dB max./100m
• Attenuation @ 860MHz:20.1dB max./100m
• Attenuation @ 1000MHz:22.2dB max./100m
• Attenuation @ 1750MHz:29.6dB max./100m
• Attenuation @ 2150MHz:33.3dB max./100m
• Return Loss 5-400MHz:24dB min./100m
• Return Loss 450-1000MHz:20dB min./100m
• Return Loss 1000-2150MHz:16dB min./100m

Ideal Uses & Applications

This Economy Twin RG6 coaxial cable is versatile and serves a myriad of applications. It is most commonly used for satellite dish installations, ensuring reliable connectivity and optimal signal quality. Additionally, with its robust construction, it is suitable for domestic DIY projects, commercial buildings, as well as hospitality settings where high-quality broadcasting is essential. The cable can also be employed in low loss installations where competitive signal transmission is crucial.

Energy Efficiency & Cost Savings

By utilizing the Economy Twin RG6 coaxial cable, users can experience enhanced energy efficiency due to its superior quality materials, which minimise signal loss and enhance performance. This not only results in better connectivity but can also lead to potential savings on energy costs, as efficient signal transmission reduces the need for additional amplification equipment. Users can expect more streamlined operations with lower overall energy consumption, contributing to both environmental sustainability and reduced operational costs.
