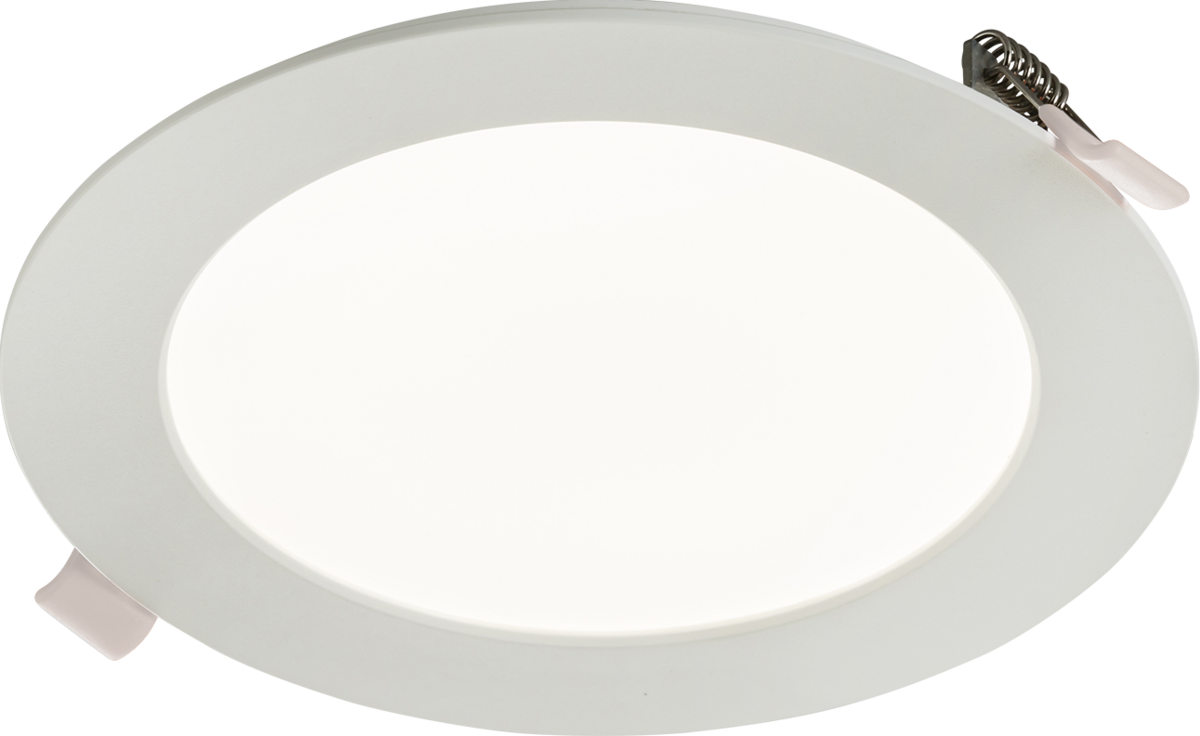

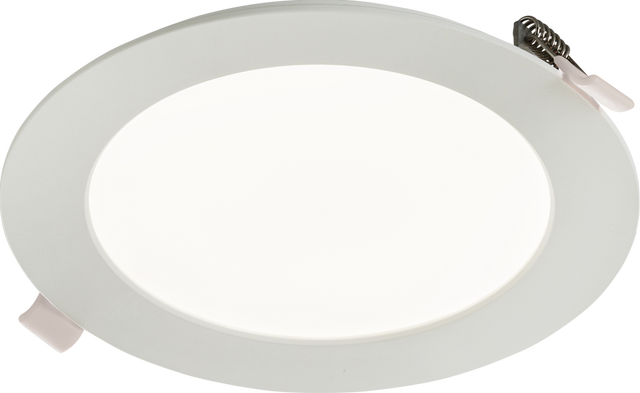

Knightsbridge: KA12CW, 12W LED Recessed Panel Light, Cool White 4000K, Slim Edge-Lit, Polycarbonate, 230V
About this product
The Knightsbridge KARA LED Recessed Panel is an excellent lighting solution designed for commercial spaces such as offices and corridors, providing efficient and uniform illumination.
- Powerful 12W LED output with 4000K Cool White light.
- Edge-lit technology ensures even light distribution without dark spots or glare.
- Install easily in shallow ceilings with a slim profile design, needing only a 155mm cut-out diameter.
- Durable polycarbonate construction with a white finish, offering excellent longevity.
- IP20 rating making it suitable for indoor use.
For easy installations, a compatible emergency kit (EMKIT2L) is available.
Units are supplied with a guarantee of 3 years against manufacturing defects.
Disclaimer: Ensure compliance with UK and EU regulations during installation.
Specifications
Dimensions
Lamp
Driver
Luminaire
Photometric
Specifications
Class | II |
---|---|
Finish | White |
IP Rating | IP20 |
Construction | Polycarbonate |
Primary Voltage | 230V 50Hz |
Dimensions
Diameter | 169 mm |
---|---|
Minimum Void | 75 mm |
Recessed Depth | 24 mm |
Cut-out Diameter | 155 mm |
Lamp
L70B50 | 30,000 |
---|---|
Dimmable | No |
Beam Angle | 110 |
Lamp Included | Yes |
Lamp Technology | SMD LED |
Energy Rating (Class) post 2021 SLR | E |
Driver
Driver Type | Constant Current |
---|
Luminaire
Diffuser | Opal |
---|
Photometric
CCT | 4000 K |
---|---|
CRI | >80 |
Lumens | 1080 lm |
Wattage | 12 |
Light Colour | Cool White |
Efficacy (Light source) | 130 lm/W |
Lumens (Light source only) | 1570 lm |
KARA 12W Cool White LED Recessed Panel features
