Knightsbridge: SF6GBN, 6G Modular Faceplate, 2G + 4G, Screwless Design, Black Nickel, IP20, 235mm x 87.5mm
About this product

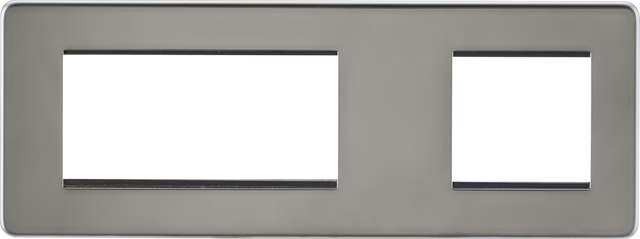

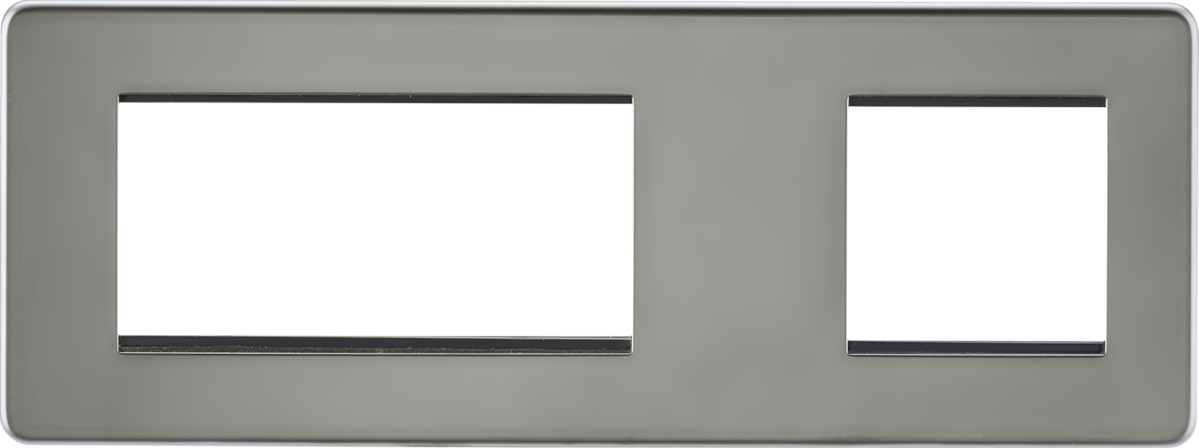

This 6G Modular Faceplate (2G + 4G) in Black Nickel is perfect for custom installations of TV, DATA, HDMI, USB, and TEL systems. The sleek screwless design ensures a flawless look while its compatibility with euro module inserts allows for flexibility in setup.
- Accepts two 25 x 50mm, or a single 50 x 50mm euro module (2G position)
- Accepts four 25 x 50mm, or two 50 x 50mm euro module or a combination of both (4G position)
- Screwless low profile design with built-in gasket
- Minimum mounting box depth: dependent on euro module used
Specifications
Dimensions
Specifications
Finish | Black Nickel |
---|---|
IP Rating | IP20 |
Construction | 201 Stainless steel |

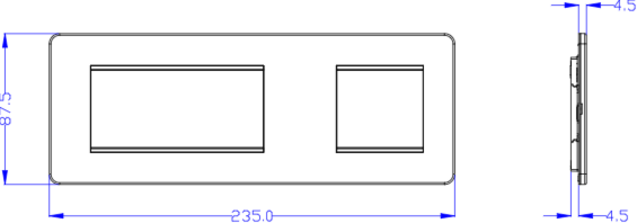

Dimensions
Depth | 12.3 mm |
---|---|
Width | 235 mm |
Height | 87.5 mm |
Projection | 4.5 mm |
Plate Depth | 4.3 mm |
6G Modular Faceplate (2G + 4G) - Black Nickel features
