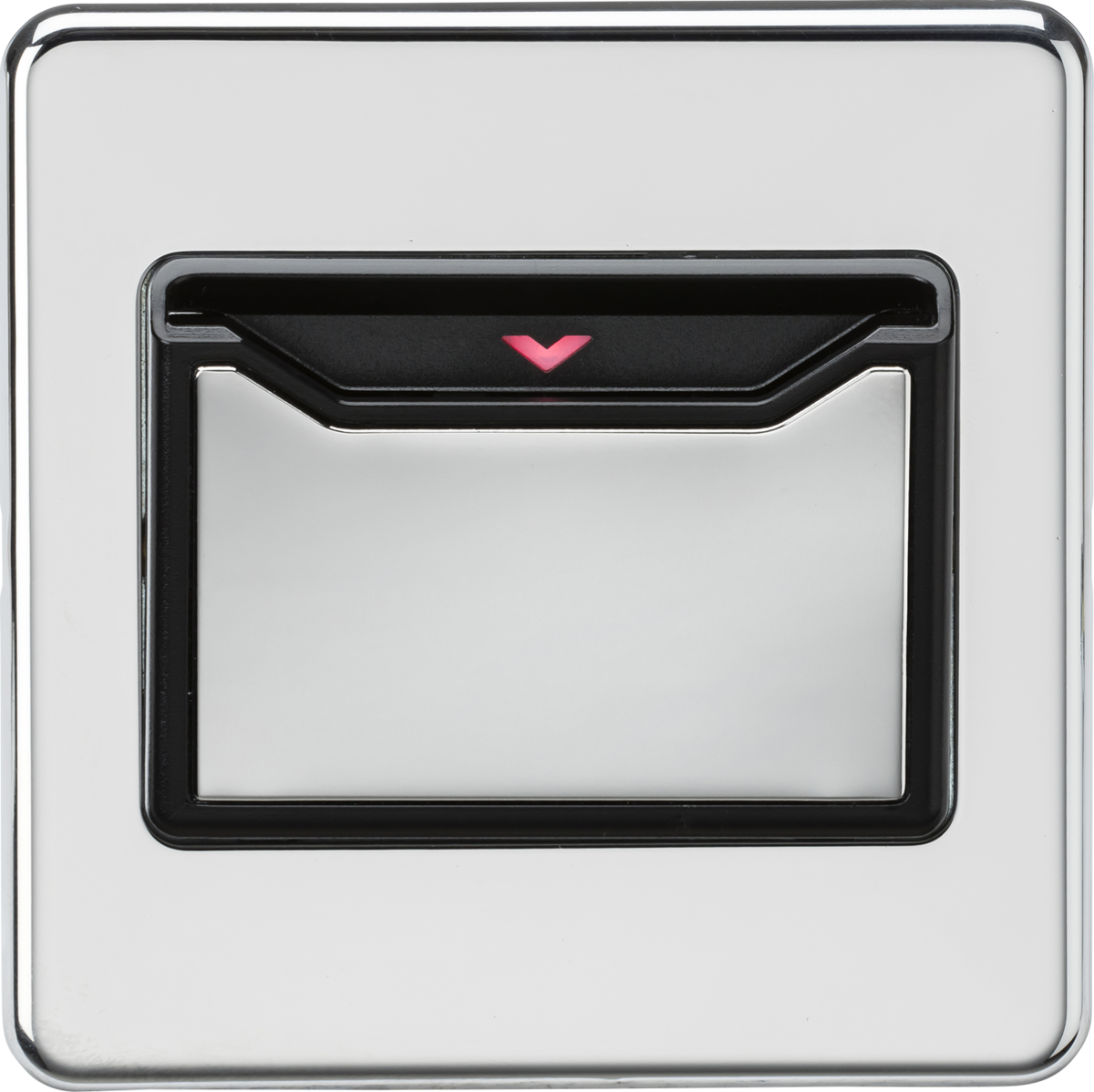

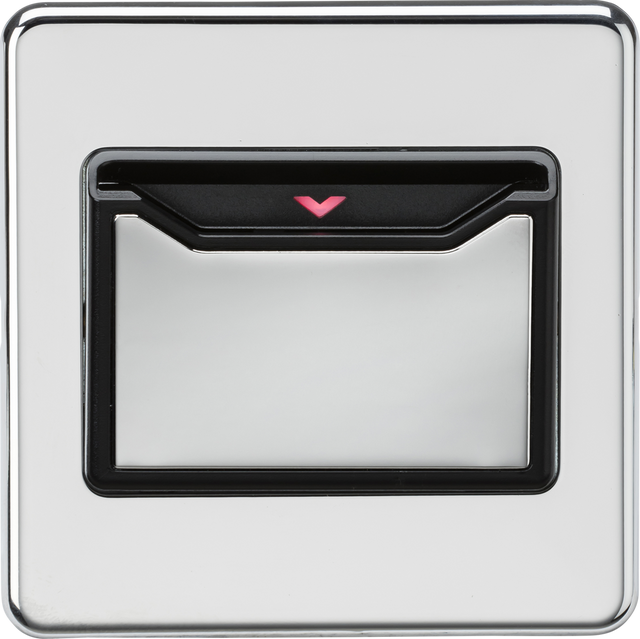

Knightsbridge: SFCARDPC, 32A Key Card Switch, 1 Gang, Screwless Design, Polished Chrome, Low Profile, IP20, 230V
About this product
The 32A 1G Key Card Switch is ideal for hotel rooms, featuring a flawless screwless low profile metal design. It activates power and lighting in hotel rooms via the room's key card. Power is cut to the room 30 seconds after the withdrawal of the key card.
- 32A rated
- Backlight arrow to aid activation in dark rooms
- Screwless low profile design with built-in gasket
- Certified to EN 60669-1
- Minimum mounting box 47mm
Specifications
Dimensions
Wiring-accessories
Specifications
Class | I |
---|---|
Finish | Polished Chrome |
IP Rating | IP20 |
Construction | 201 Stainless steel |
Construction 2 | & ABS |
Primary Voltage | 230V 50Hz |

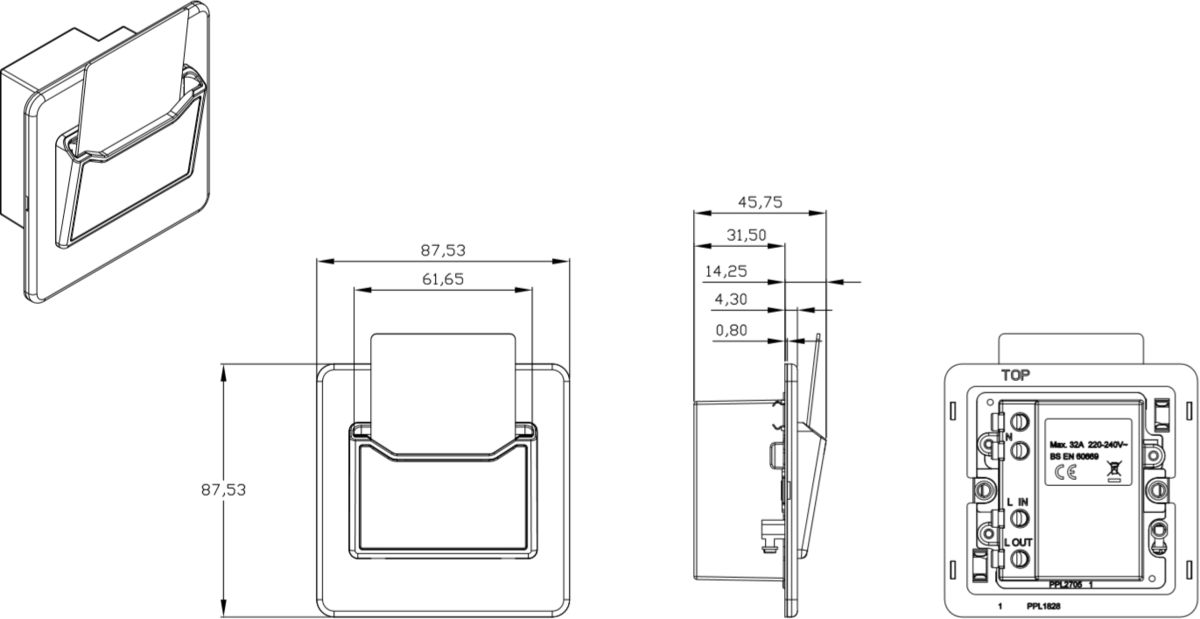

Dimensions
Depth | 45.75 mm |
---|---|
Width | 87.5 mm |
Height | 87.5 mm |
Projection | 14.25 mm |
Plate Depth | 4.3 mm |
Recessed Depth | 31.5 mm |
Min. Mounting Box Depth | 47mm |
Wiring-accessories
Earth Terminal | Yes |
---|---|
Neon Indicator | Yes |
32A 1G Key Card Switch - Polished Chrome features
