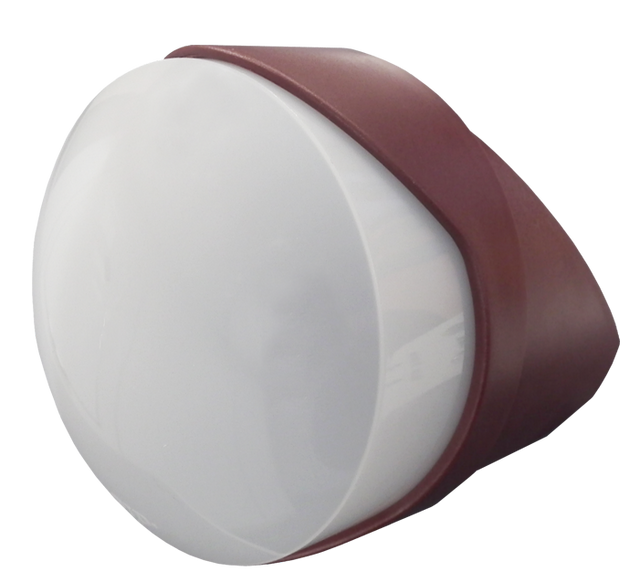

GJD: GJD022 - ELITE, External PIR Detector, IP55, Programmable Detection up to 35m
Weatherproof
35m Range
£
72
58
(Incl. VAT)
RRP: £85.35
External PIR Detector, 35m Range
About this product
About this product
The External PIR Detector is a highly adaptable device suitable for various applications. It features an IP55 rating, ensuring it is weatherproof and durable for outdoor use. Here are some key features:
- Range: Programmable detection up to 35 metres.
- Coverage: 90° detection angle with a maximum coverage area of 35m x 30m.
- Adjustment: Provides 180° panning and 90° tilting for tailored coverage.
- Lux Level: Adjustable from dusk (2 lux) to 24-hour operation.
- Operating Temperature: Resistant to extreme temperatures from -20°C to +55°C.
- Housing: Made of high impact ABS for durability.
- Conformally coated electronics enhance reliability.
-
Download
- GJD-ELITE manual
- GJD-ELITE spec
£
72
58
FAST delivery by Order within
Technical Details
Specifications
Manufacturer
GJD
Current Consumption
10 mA (12V nominal)
Power Input
9 to 15 VDC
Operating Temperature
-20 °C to +55 °C
Protection Rating
IP55
Weight
0.145 kg
Dimensions
Size
104 x 100 x 100 mm
Specifications
| Manufacturer | GJD |
|---|---|
| Current Consumption | 10 mA (12V nominal) |
| Power Input | 9 to 15 VDC |
| Operating Temperature | -20 °C to +55 °C |
| Protection Rating | IP55 |
| Weight | 0.145 kg |
Dimensions
| Size | 104 x 100 x 100 mm |
|---|
