Mercury: 808.003UK, Cat5e F/UTP Network Cable, Grey, 305m, OFC

Visit Ethernet Cables | High-Speed & Reliable Network Connections
High Speed
£ 107 05
(Incl. VAT) RRP: £123.90
Cat5e F/UTP Network Cable (305m, Grey)
About this product

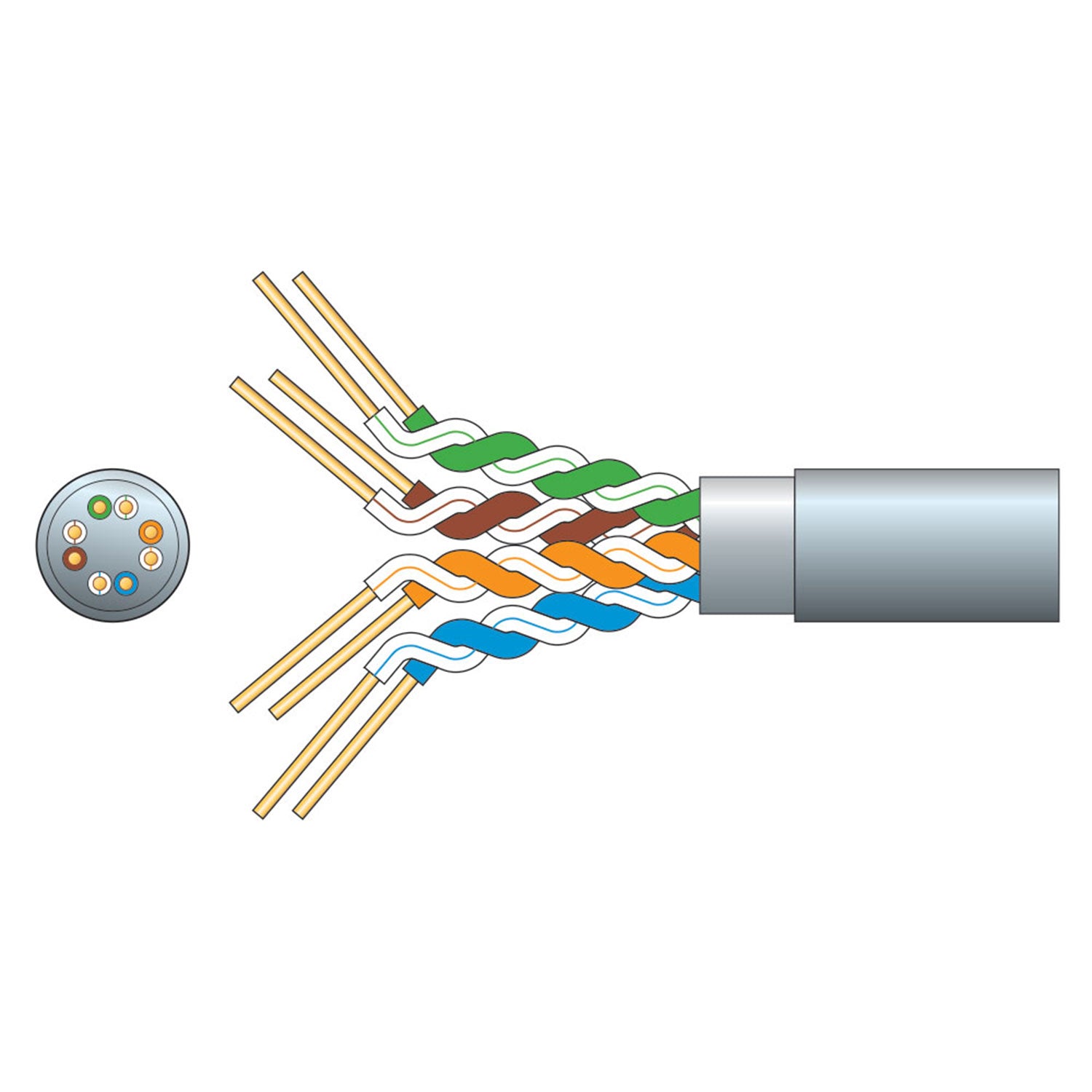

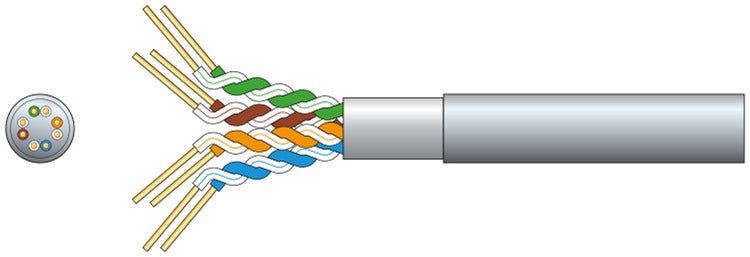

Cat5e F/UTP Network Cable designed for high-speed data transmission, ideal for Gigabit Ethernet applications. This cable is constructed from oxygen-free copper twisted pairs with an overall aluminium foil screen for reliable performance.

  • AWG 24 solid copper conductor ensures optimal conductivity.
  • Supplied in an easy-pull dispensing box for convenience.
  • Passes Cat5e fluke test for 100m at 100MHz, guaranteeing high performance.
  • Complies with TIA/EIA-568 Cat5e standards for reliable data transmission.
£ 107 05
FAST delivery by Order within
Ships from United Kingdom
14 days returns or replacements
Secure payment transactions
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
NEXT
>35.3dB
Colour
Grey
ELFEXT
>23.8dB
Length
305m
PSNEXT
>32.3dB
Sheath
PVC 0.55mm thickness
Weight
11.8kg
Strands
8 x 1/0.5mmØ ±2%
PSELFEXT
>20.8dB
Conductor
Solid OFC
Insulation
HDPE 0.225mm thickness
Attenuation
<22dB @100m
Capacitance
5.0nF/100m
Phase delay
<570ns
Return loss
>20dB @100m
Conductor CSA
8 x 0.196mm²
Screen material
Mylar + Aluminium/Mylar + Drain wire
Cable Diameter
5.8mmØ
DC resistance @ 20°C
<9.5 ohms/100m
Impedance (1 to 100MHz)
100±15 ohms
Specifications

Specifications

NEXT >35.3dB
Colour Grey
ELFEXT >23.8dB
Length 305m
PSNEXT >32.3dB
Sheath PVC 0.55mm thickness
Weight 11.8kg
Strands 8 x 1/0.5mmØ ±2%
PSELFEXT >20.8dB
Conductor Solid OFC
Insulation HDPE 0.225mm thickness
Attenuation <22dB @100m
Capacitance 5.0nF/100m
Phase delay <570ns
Return loss >20dB @100m
Conductor CSA 8 x 0.196mm²
Screen material Mylar + Aluminium/Mylar + Drain wire
Cable Diameter 5.8mmØ
DC resistance @ 20°C <9.5 ohms/100m
Impedance (1 to 100MHz) 100±15 ohms

Cat5e F/UTP Network Cable (305m, Grey) features


Mercury: 808.003UK, Cat5e F/UTP Network Cable, Grey, 305m, OFC

Product Overview & Key Benefits

TheCat5e F/UTP Network Cableis an advanced networking solution engineered for high-speed data transmission, notably supporting Gigabit Ethernet applications. With its oxygen-free copper construction and comprehensive shielding, this cable is perfect for both residential and commercial setups where reliable data transfer is essential. It is designed for users seeking performance without compromising on durability or ease of installation.

Technical Specifications & Product Details

  • Model:Not applicable
  • Variant:Grey 305m
  • Weight:11.8kg
  • Dimensions:210mm (Width) x 405mm (Height) x 405mm (Length)
  • Conductor:Solid Oxygen Free Copper (OFC)
  • AWG:24
  • Length:305mSheath Material:PVC with a thickness of 0.55mmInsulation:HDPE with a thickness of 0.225mmCable Diameter:5.8mmImpedance:100±15 ohms (1 to 100MHz)Attenuation:<22dB @100mCapacitance:5.0nF/100mReturn Loss:>20dB @100mDC Resistance @ 20°C:<9.5 ohms/100mScreen Material:Mylar + Aluminium/Mylar + Drain wireNEXT:>35.3dBELFEXT:>23.8dBPSNEXT:>32.3dBPSELFEXT:>20.8dBPhase Delay:<570ns
