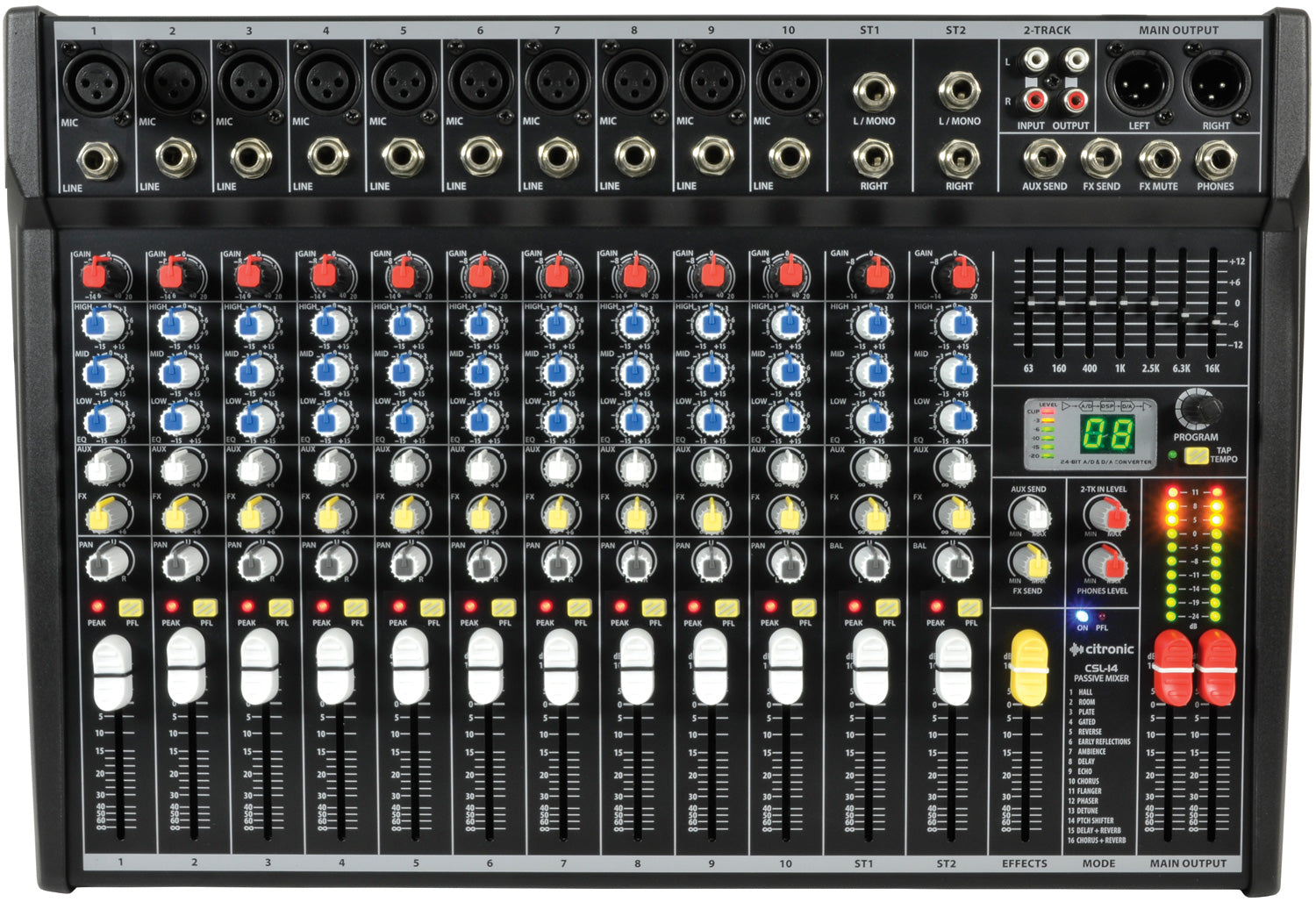

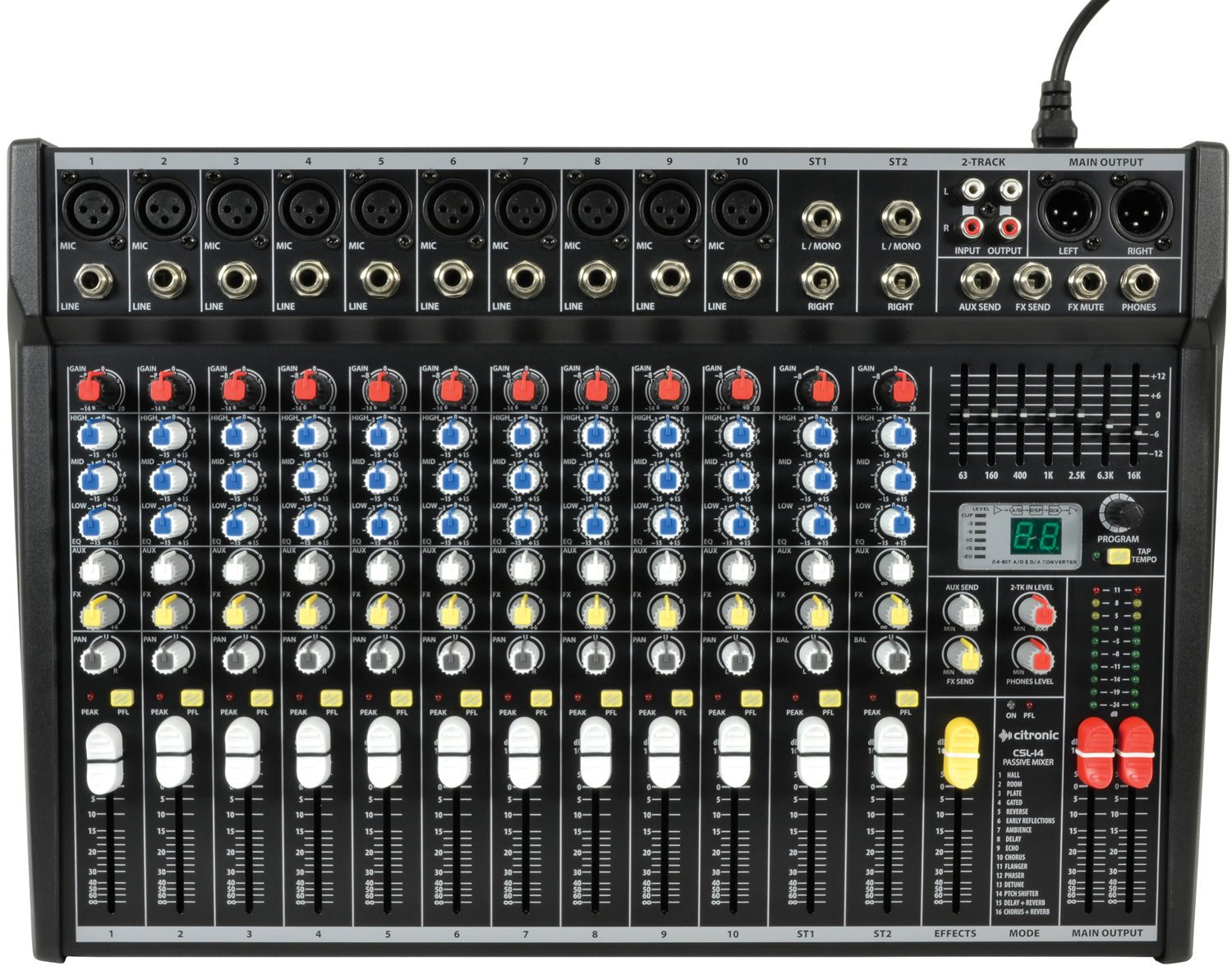

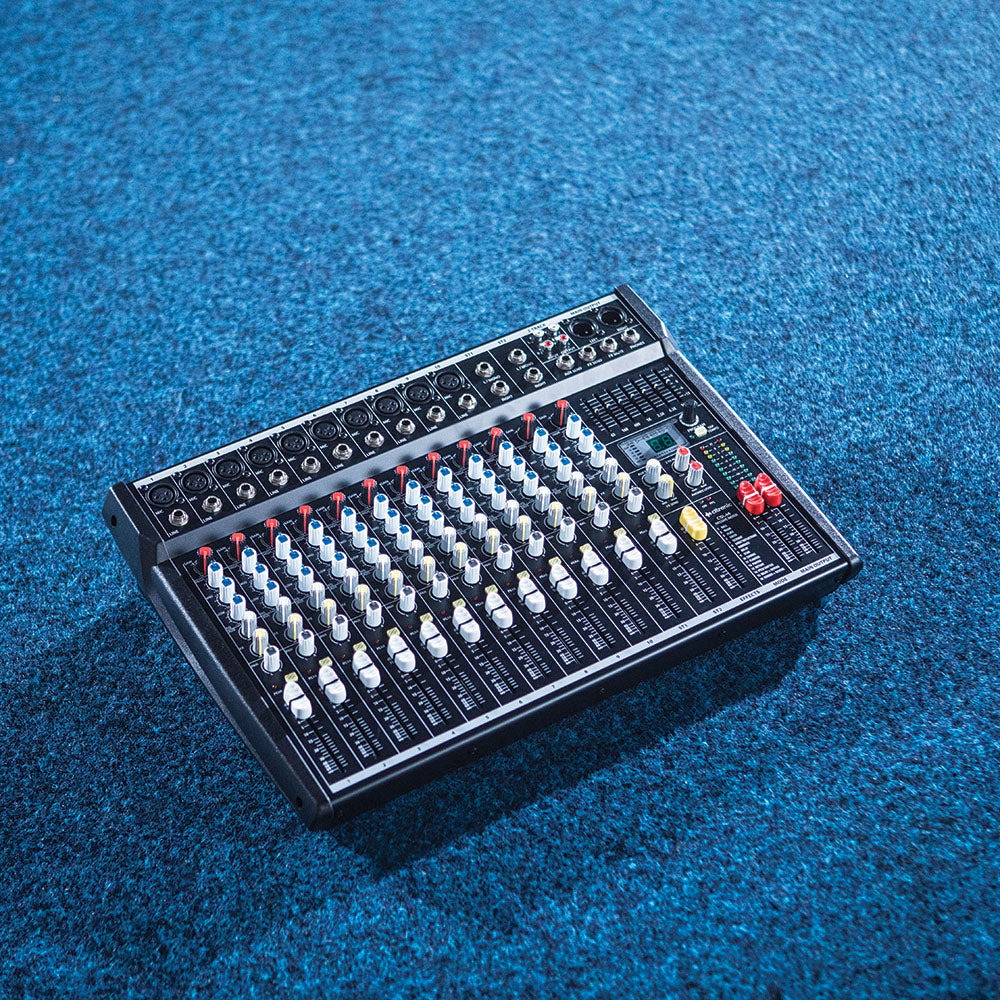

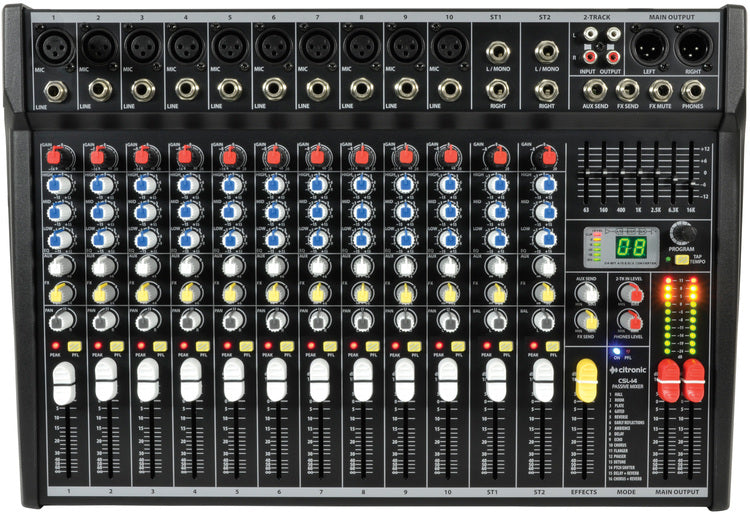

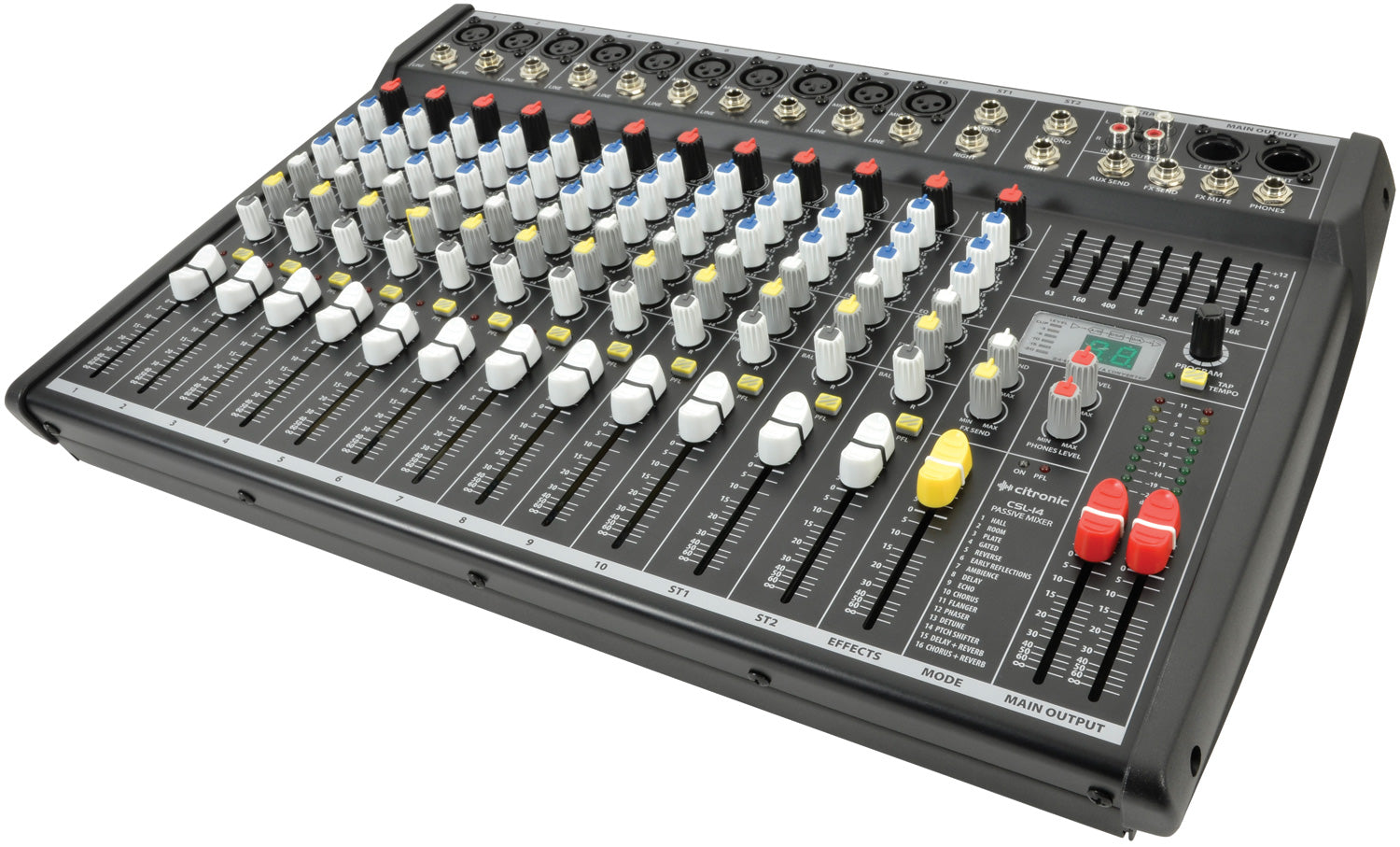

Citronic: 170.855UK, Compact Mixing Console, 14 Input, DSP, 24-bit Effects, Phantom Power, 3-Band EQ

Product Overview & Key Benefits

The CSL Series Compact Mixing Consoles with DSP are designed for professionals seeking high-quality sound management in a compact format. Featuring balanced mic/line inputs and a total of 14 inputs that enhance audio mixing capabilities, these consoles are ideally suited for mobile PA systems, bars, and special event applications. The central benefit is their portability without sacrificing sound quality, making them perfect for venues and stage applications.

Technical Specifications & Product Details

• CMRR:>74dB (mic 1kHz)
• Fuse:T1AL
• THD + N:<0.01% (channel to main out)
• Weight:4.5kg
• 2-track:2 x RCA in & out (-2dBu)
• EQ: low:80Hz ±15dB shelving
• EQ: mid:2.5kHz ±15dB band pass
• Effects:16 program DSP (24-bit sigma-delta, 40kHz)
• EQ: high:12kHz ±15dB shelving
• Crosstalk:>85dB (fader mute), >82dB (channel)
• Dimensions:475 x 320 x 107mm
• Input level:+24dBu
• Power supply:230Vac, 50Hz (IEC)
• Phantom power:+48V (XLR inputs)
• Headphone output:6.3mm jack, 30-600 Ohms
• Output impedance:<75 Ohms
• Inputs: Mic/Line:10 x balanced XLRF/TRS jack
• Power consumption:25W
• Sensitivity: mic:-60 to +14dBu
• Frequency response:20Hz-30kHz (0.5dB)
• Output connections:Main L+R balanced XLR
• Sensitivity: line:-40 to +14dBu
• Output level: line:+26dBu
• Noise rms: 22Hz-22kHz:-122dBu (EIN), -82dBu (mix)
• Input impedance: mic (balanced):2k Ohms
• Input impedance: line (balanced):10k Ohms

Ideal Uses & Applications

The CSL Series Compact Mixing Consoles are exceptionally versatile and are ideal for a range of applications including:

• Domestic DIY:Perfect for home recording or personal music projects where compactness is an advantage.
• Commercial Buildings:Suited for corporate events, conferences, and presentations needing robust audio solutions.
• Hospitality Settings:Great for restaurants and bars looking to enhance their live music offerings.
• Event Management:An excellent choice for sound engineers and event coordinators handling various stages and venues.

Energy Efficiency & Cost Savings

Incorporating modern technology, these compact mixing consoles are designed with energy efficiency in mind. With a power consumption of just 25W, the CSL Series reduces energy usage compared to larger, traditional models. This translates into lower electricity costs when used over extended periods, making them a financially sound choice for both temporary and permanent installations.

Moreover, by adopting a DSP-driven approach, the consoles not only provide exceptional sound quality but also minimise the need for additional outboard gear, contributing to further savings in both equipment costs and energy consumption.
