Knightsbridge: BATSCWMEM5, 5ft LED Batten, CCT Adjustable 3000K/4000K/5700K, 22/41W, IP20
About this product

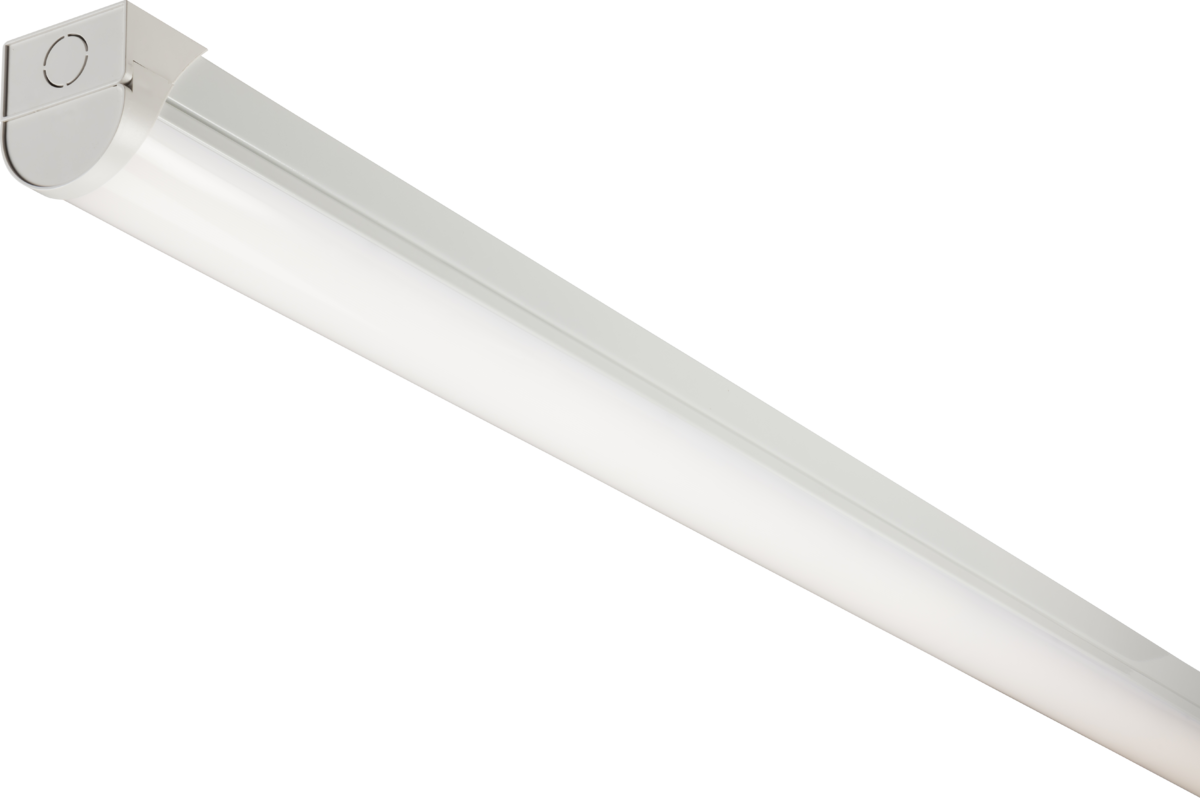

The 230V 5ft 22/41W CCT Adjustable Batten provides durable and efficient lighting for commercial environments. Features include:
- CCT adjustable (3000K, 4000K, 5700K)
- Wattage adjustable (22/41W)
- High efficacy technology with standard configurations for easy installation
- Integrated microwave presence detection for energy savings
- Robust construction from steel and polycarbonate for long-lasting use
- Emergency operation of a minimum of 3 hours using lithium battery
Ideal for replacing conventional fluorescent fixtures while offering modern LED benefits.
Specifications
Dimensions
Lamp
Driver
Luminaire
Photometric
Specifications
Class | I |
---|---|
Finish | White |
IP Rating | IP20 |
Construction | Pressed steel |
Construction 2 | & polycarbonate |
Primary Voltage | 230V 50Hz |

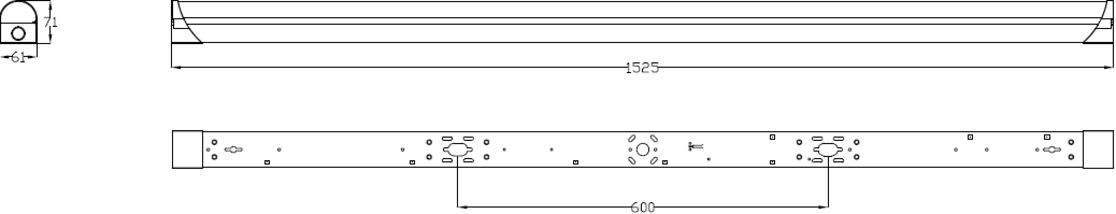

Dimensions
Width | 61 mm |
---|---|
Length | 1525 mm |
Projection | 71 mm |
Lamp
L70B50 | 60,000 |
---|---|
Dimmable | No |
Beam Angle | 145 |
Lamp Technology | LED |
Energy Rating (Class) post 2021 SLR | D |
Driver
Driver Type | Constant Current |
---|
Luminaire
Diffuser | Opal |
---|---|
Emergency | Maintained / Non-maintained / Switched |
Photometric
CCT | 3000/4000/5700 K |
---|---|
CRI | >85 |
Lumens | 2970/3300/3210, 5170/6040/5630 lm |
Wattage | 22/41 |
Light Colour | CCT |
Lumens (Em. mode) | 360 lm |
Efficacy (Light source) | 160.58 lm/W |
Lumens (Light source only) | 6520 lm |
CCT Adjustable LED Batten with Microwave features
