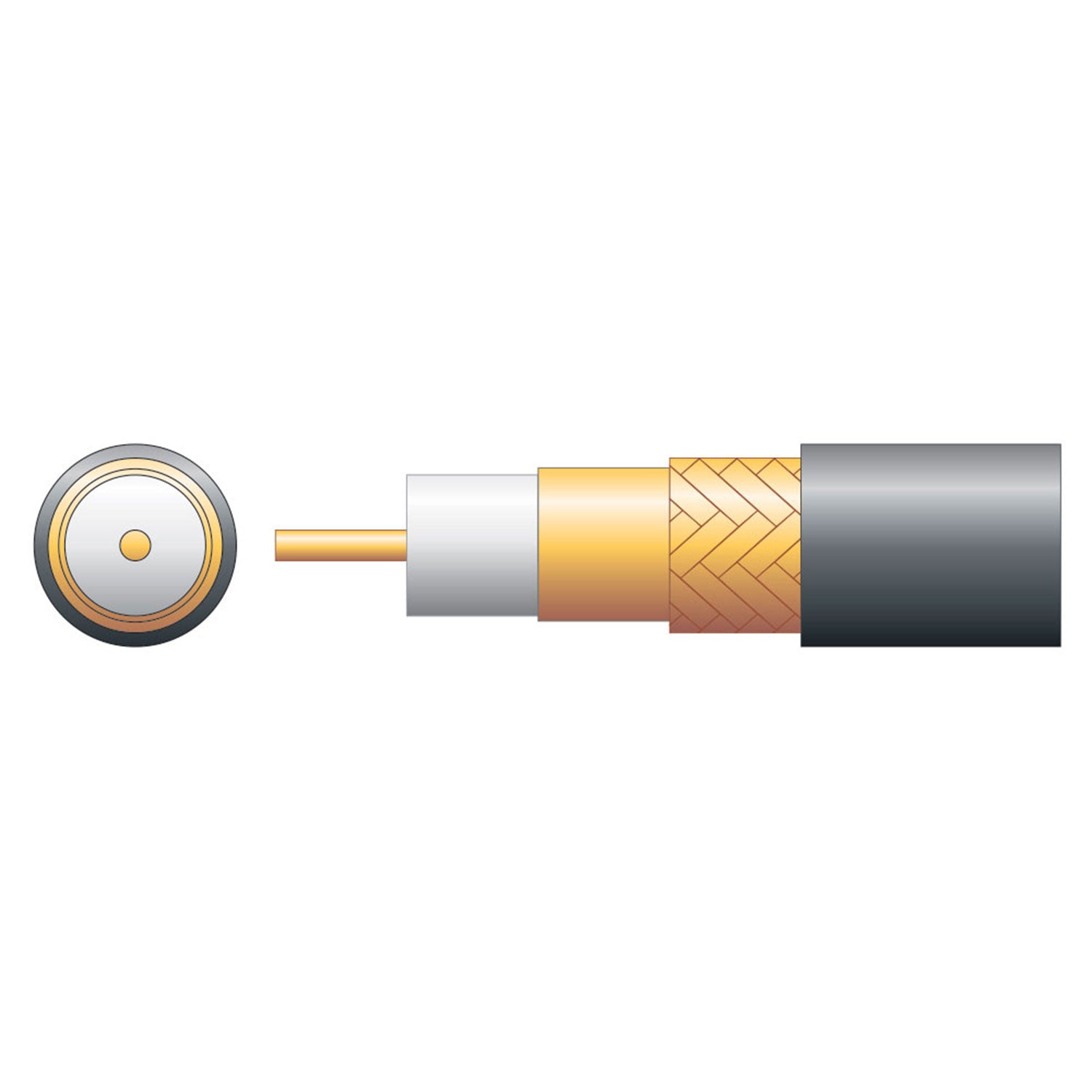

Mercury: 808.153UK, 100U 75 Ohms Foam Filled Coaxial Cable, CCA Braid, Black, 100m

Product Overview & Key Benefits

The 100U 75 Ohms Foam Filled Coaxial Cable - CCA Braid is an exceptional product specifically designed for high-quality signal transmission in various applications. This cable is perfect for domestic and commercial use and is particularly suited for digital, satellite, and cable television signal transmission. Its robust construction ensures minimal noise interference, providing a reliable connection that meets the demands of modern broadcasting.

Technical Specifications & Product Details

• Model:100U 75 Ohms Foam Filled Coaxial Cable
• Supplier SKU:808.153UK
• Impedance:75 Ohms
• Length:100m
• Diameter:6.6mm
• Dielectric:4.6mm Ø foam PE
• Conductor Material:Solid OFC (Oxygen Free Copper)
• Conductor Diameter:1mm Ø
• Braid Material:CCA (Copper Clad Aluminium)
• Braid Configuration:64 x 0.12mm Ø
• Screen:Copper foil
• Capacitance:54pF/m
• Velocity Factor:83%
• Attenuation:1.8dB max./100m @ 5MHz4.7dB max./100m @ 50MHz6.6dB max./100m @ 100MHz9.7dB max./100m @ 200MHz14.6dB max./100m @ 400MHz19.6dB max./100m @ 860MHz21.6dB max./100m @ 1000MHz29.1dB max./100m @ 1750MHz32.7dB max./100m @ 2150MHz
• Return Loss:28dB min./100m @ 5-400MHz24dB min./100m @ 450-1000MHz18dB min./100m @ 1000-2150MHz
• Weight:4kg
• Colour:Black
• Supplied In:100m or 250m reel with metric cut markers
• Dimensions:Width - 80mm, Height - 280mm, Length - 280mm

Ideal Uses & Applications

The versatility of the 100U 75 Ohms Foam Filled Coaxial Cable makes it suitable for a variety of applications. It is particularly well-suited for:

• Domestic DIY:Ideal for home theatre setups, terrestrial and satellite television installations, ensuring high-quality signal reception.
• Commercial Installations:Perfect for commercial buildings that require reliable cable for internet and cable TV services.
• Hospitality Settings:Used in hotels and restaurants to deliver quality broadcasting service to guests.
• Office Environments:Provides connectivity for shared networking applications, ensuring seamless and reliable communication.

Energy Efficiency & Cost Savings

Utilising the 100U 75 Ohms Foam Filled Coaxial Cable can lead to significant cost savings in the long run. Its excellent signal clarity reduces the need for frequent replacements or upgrades associated with lower quality cables. Additionally, by enhancing signal transmission, users can expect better performance from their existing systems, potentially saving on energy costs related to the amplification and signal boosting equipment. With high levels of efficiencies in signal transmission, enjoy peace of mind knowing that your investment is protected against the typical wear and tear that less effective cables often succumb to.
