Citronic: 171.972UK, Tuneable UHF Handheld Microphone System, 863-865MHz, PLL Tunable, 60m Range, Licence Free Operation
PLL Tunable
£
92
04
(Incl. VAT)
RRP: £106.53
Single Channel UHF Microphone System
About this product
About this product

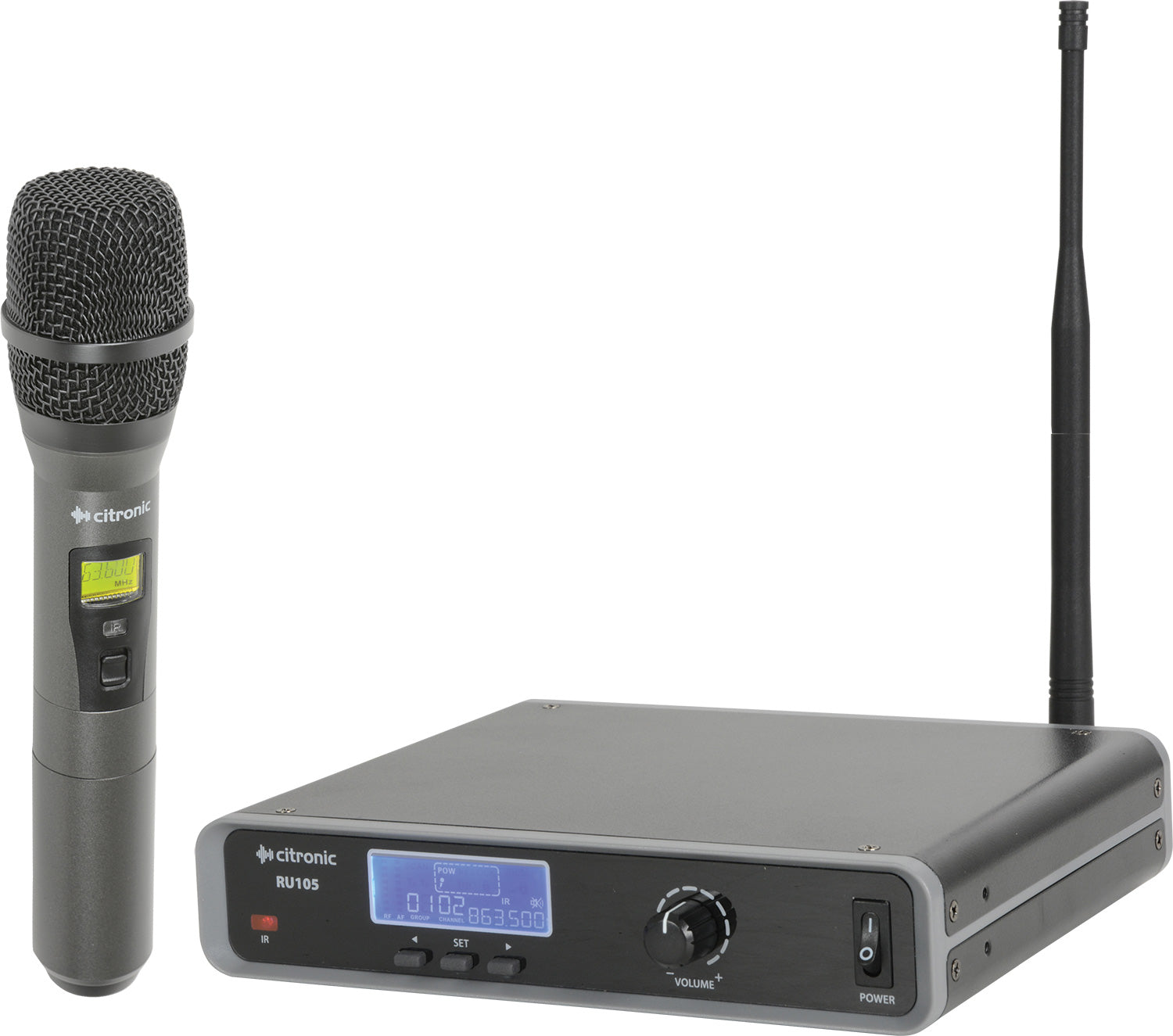

Tuneable UHF Handheld Microphone System
Experience clear sound with our single channel PLL tuneable UHF wireless system featuring a handheld transmitter. Key features include:
- Up to 4 RU105 systems can operate together on the EU licence-free band.
- PLL tunable with 81 UHF frequencies for optimal performance.
- Licence free operation in UK & EU for easy use.
- Stable signal due to the pilot tone & mute circuit.

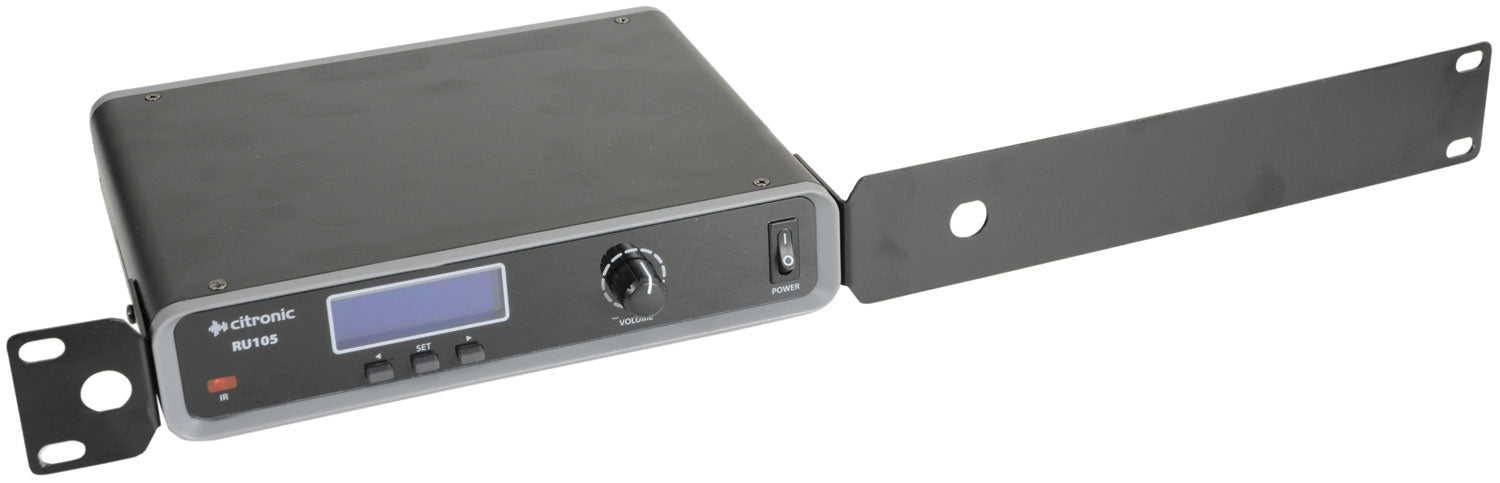

- Comes with rack-mounting accessories for convenience.

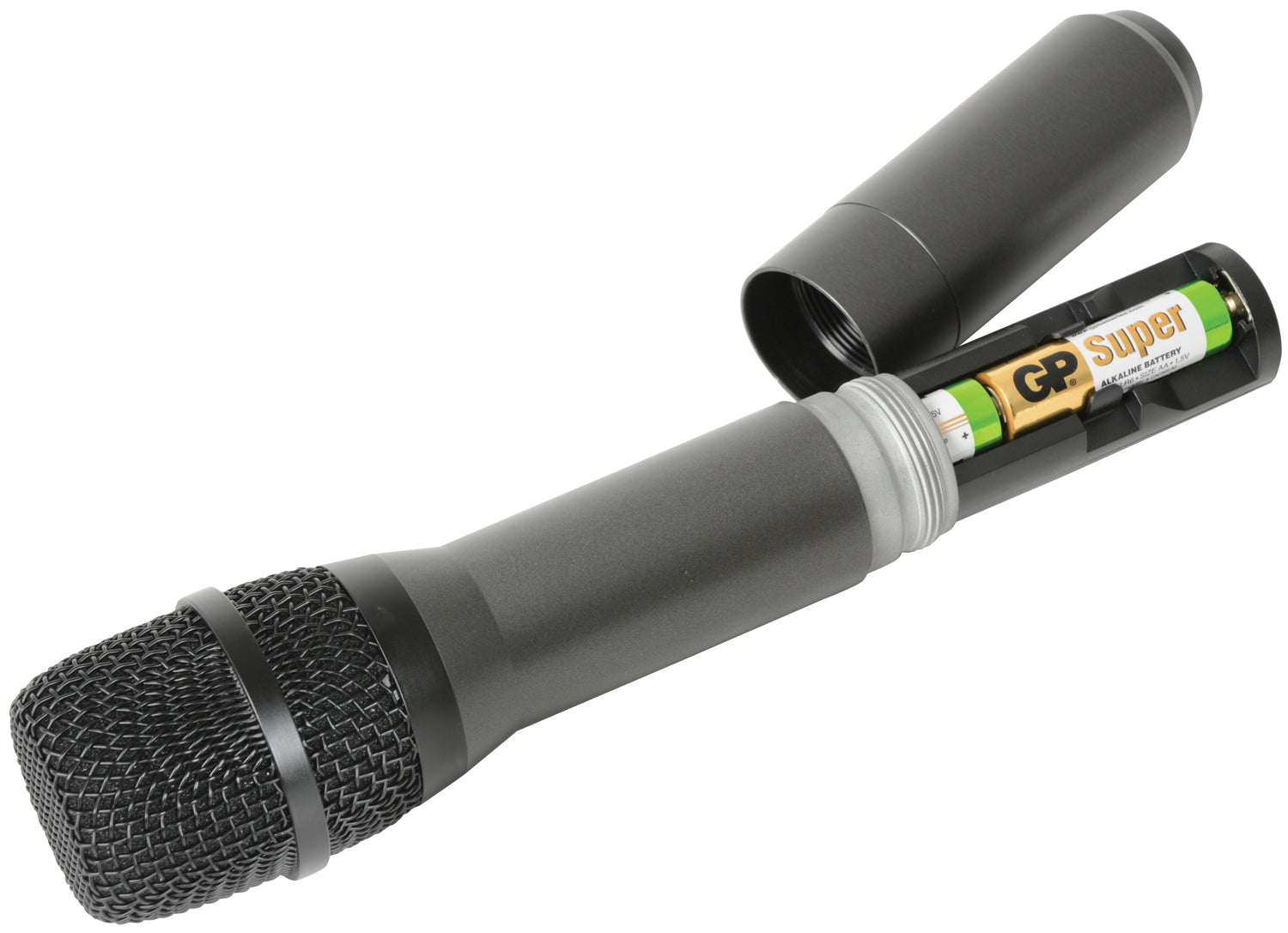

- Included mains adaptor and 2 x AA batteries for immediate use.
£
92
04
FAST delivery by Order within
Technical Details
Specifications
THD
<0.5% @ 1KHz
Range
60m
Batteries
2 x AA (for transmitter - included)
Output Level
400mV (balanced), 200mV (unbalanced)
Power Supply
12-18Vdc, 350mA (mains adaptor included)
Image Rejection
>85dB
Output Impedance
2.2k Ohms
Carrier Frequency
863 - 865MHz (81 selectable frequencies)
Weight of Receiver
710g
Frequency Response
50Hz-18KHz ±1 dB
Weight of Transmitter
330g (no battery)
Signal to Noise Ratio
>105dB
Specifications
THD | <0.5% @ 1KHz |
---|---|
Range | 60m |
Batteries | 2 x AA (for transmitter - included) |
Output Level | 400mV (balanced), 200mV (unbalanced) |
Power Supply | 12-18Vdc, 350mA (mains adaptor included) |
Image Rejection | >85dB |
Output Impedance | 2.2k Ohms |
Carrier Frequency | 863 - 865MHz (81 selectable frequencies) |
Weight of Receiver | 710g |
Frequency Response | 50Hz-18KHz ±1 dB |
Weight of Transmitter | 330g (no battery) |
Signal to Noise Ratio | >105dB |
Single Channel UHF Microphone System features
