Chord: 171.981UK, UHF Wireless Handheld Microphone System, 863.1MHz, Fixed Transmitter, 60m Range

Product Overview & Key Benefits

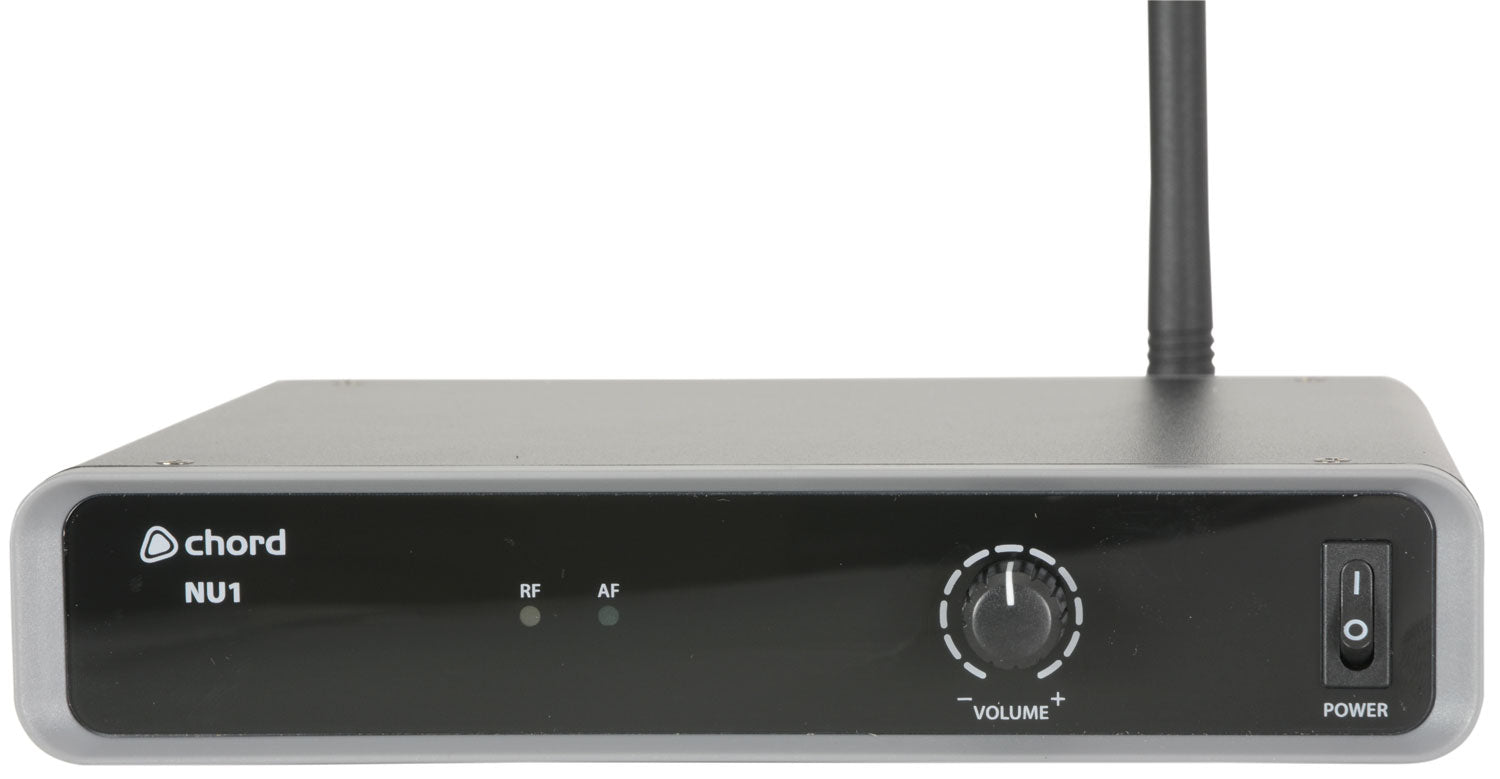

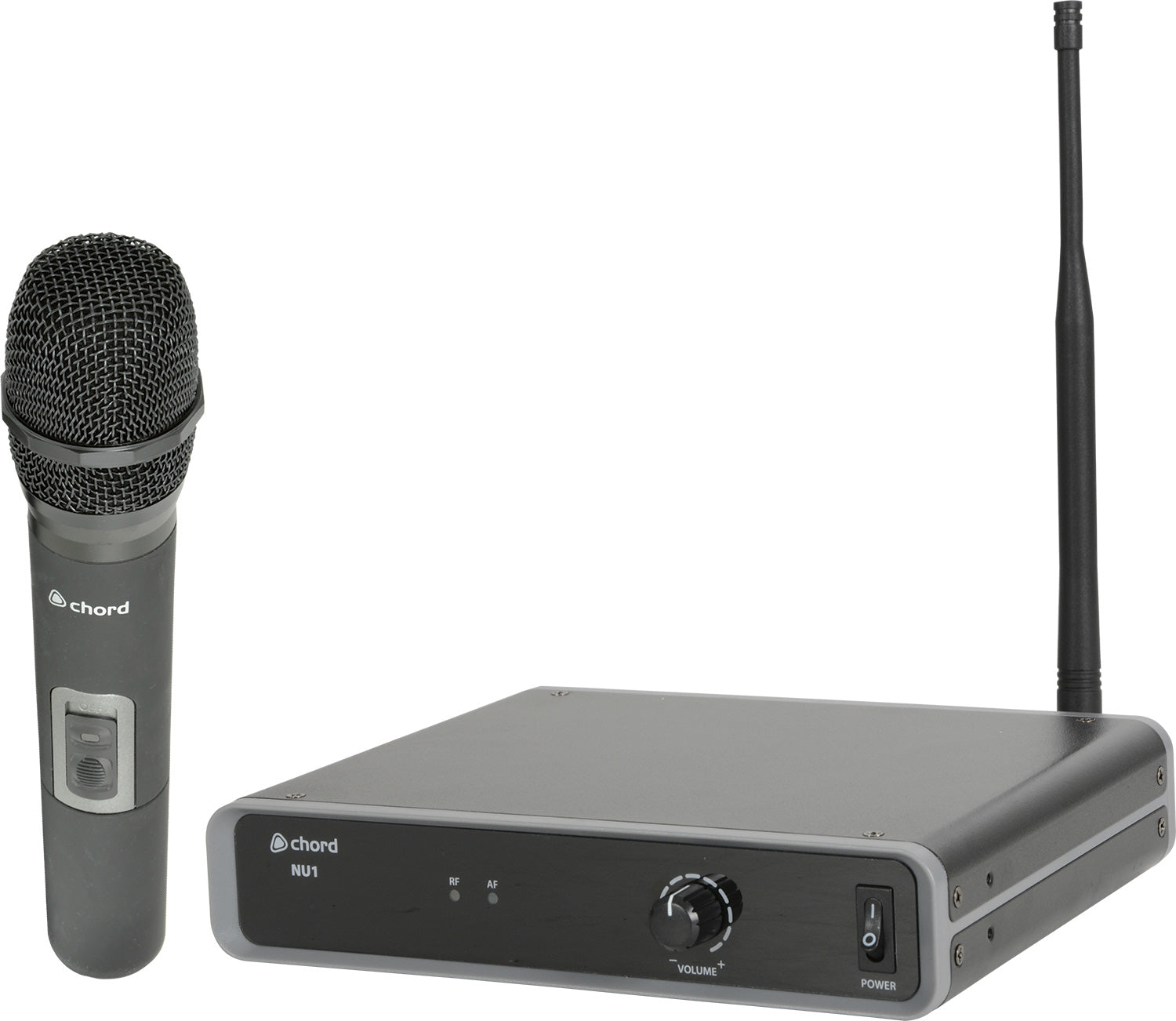

TheUHF Wireless Handheld Microphone Systemis designed to deliver exceptional audio performance for various applications, including live performances, public speaking engagements, and presentations. This system combines a fixed UHF handheld transmitter with a compact half rack-width receiver, ensuring stability and clear signal transmission over significant distances. Ideal for both amateur and professional users, it offers the flexibility of a wireless system without compromising on sound quality.

Technical Specifications & Product Details

• Carrier Frequency:863.1MHz
• Transmission Range:60m
• Total Harmonic Distortion (THD):<0.5% @ 1kHz
• Frequency Response:50Hz-18KHz ±1 dB
• Signal to Noise Ratio:>105dB
• Image Rejection:>85dB

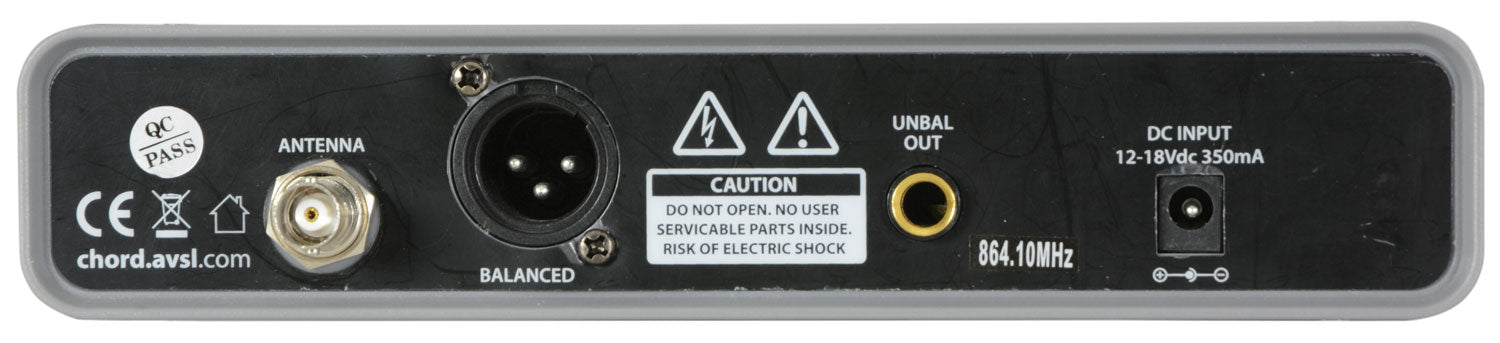

• Output Levels:400mV (balanced), 200mV (unbalanced)
• Output Impedance:2.2k Ohms
• Power Supply:12-18Vdc, 350mA (mains adaptor included)
• Weight:Receiver 710g, Transmitter 238g (without battery)
• Dimensions:Receiver – 44 x 198 x 190mm; Transmitter – 243 x 48mm (diameter)
• Batteries:2 x AA (included for transmitter)

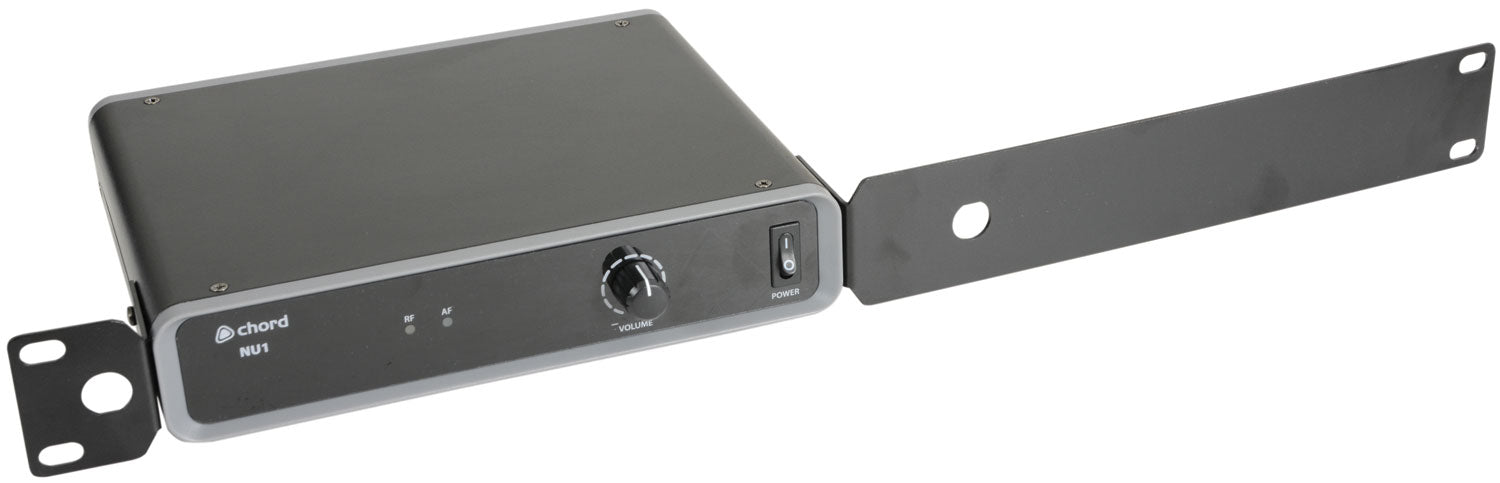

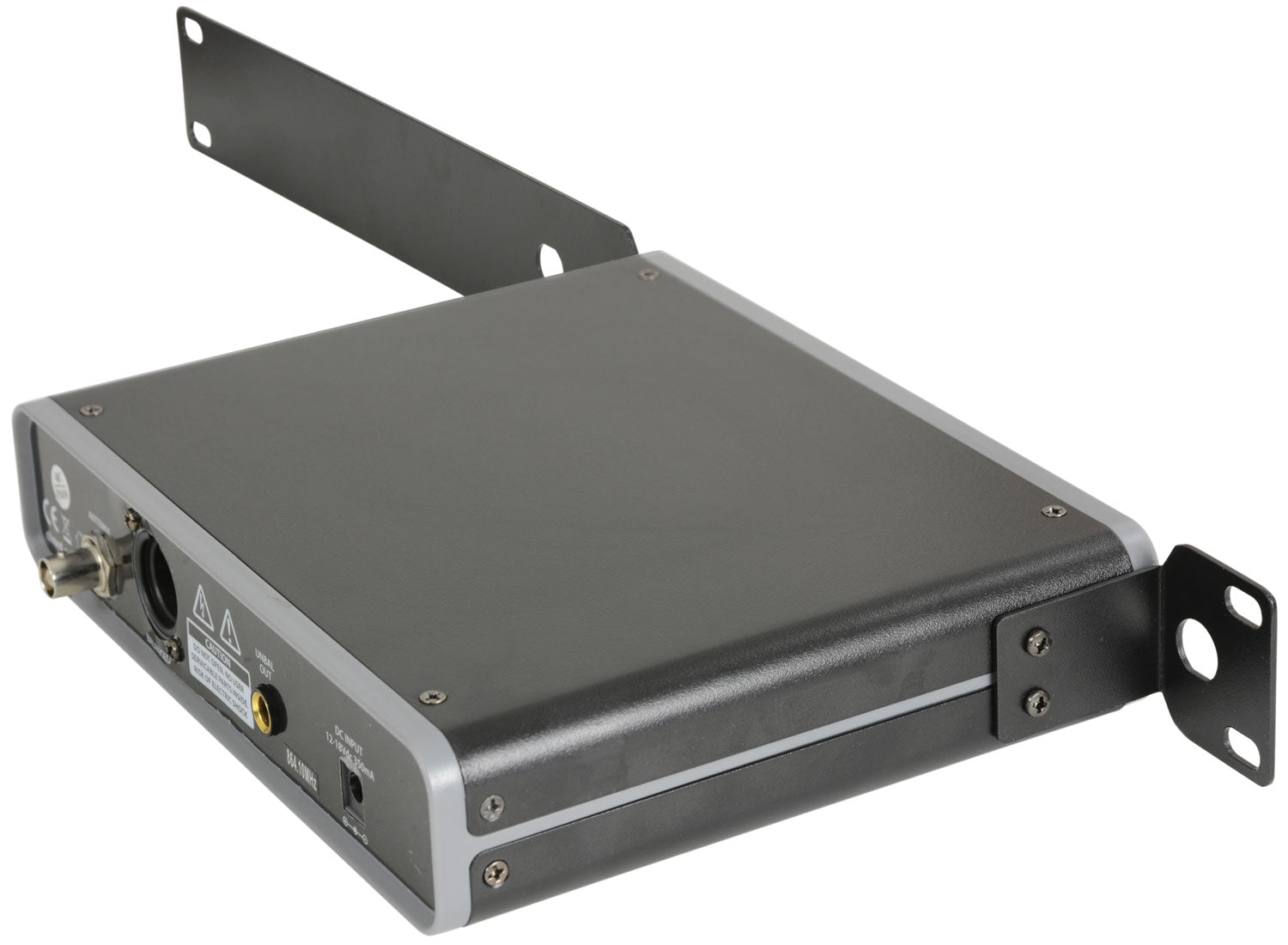

• Rack-Mounting:Accessories included for standard 19" racks
• Licence:Licence-free operation in the UK & EU

Ideal Uses & Applications

The UHF Wireless Handheld Microphone System is versatile enough for various settings:

• Live Performances:Suitable for musicians and performers needing reliable sound reinforcement without the hassle of cables.
• Public Speaking:Perfect for conferences, seminars, and events where the speaker requires freedom of movement.
• Corporate Settings:Ideal for meetings and presentations in offices, ensuring clear communication with the audience.
• Worship Services:Great for places of worship where dynamic speaking or singing is prevalent.

Energy Efficiency & Cost Savings

Utilising modern technology, the UHF Wireless Handheld Microphone System is designed with energy efficiency in mind. The system operates on standard AA batteries, allowing users to conserve energy and reduce waste as they own compatible rechargeable options. Effective design coupled with a robust performance means users can save on replacement costs, and the consistent performance can lead to potential savings on technician support, thanks to fewer interruptions during events.

This microphone system not only elevates sound quality but also offers reliability, making it an essential tool for anyone in need of high-quality audio equipment.
