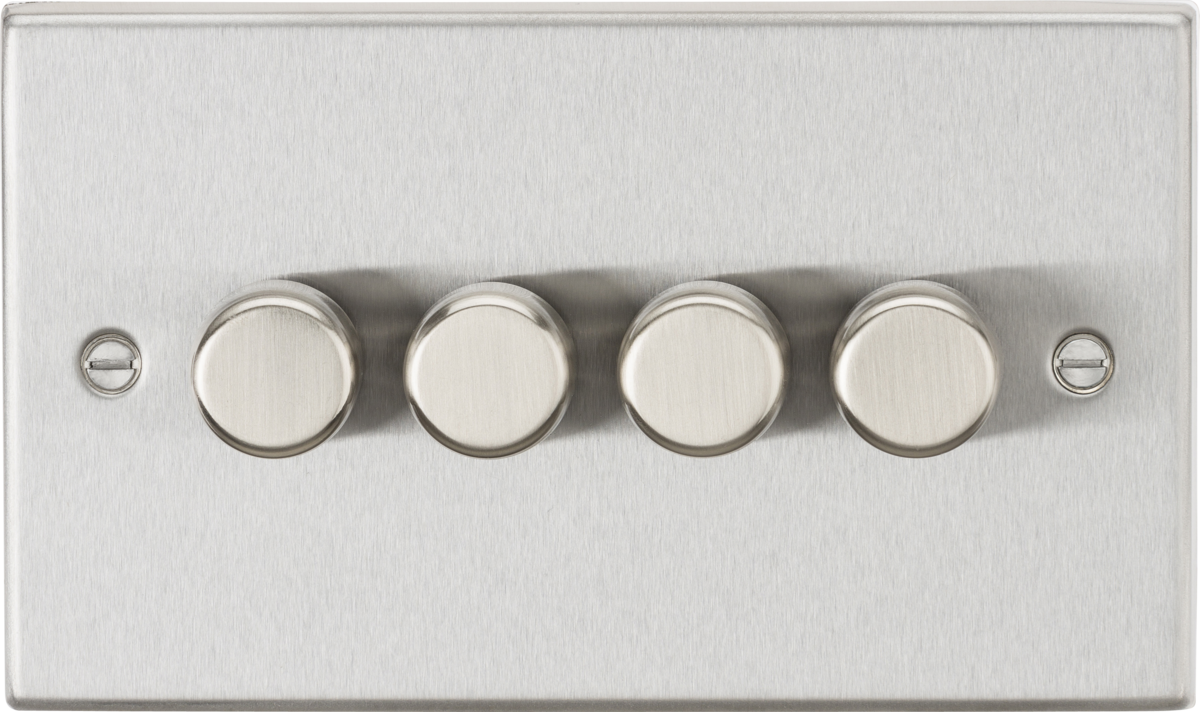

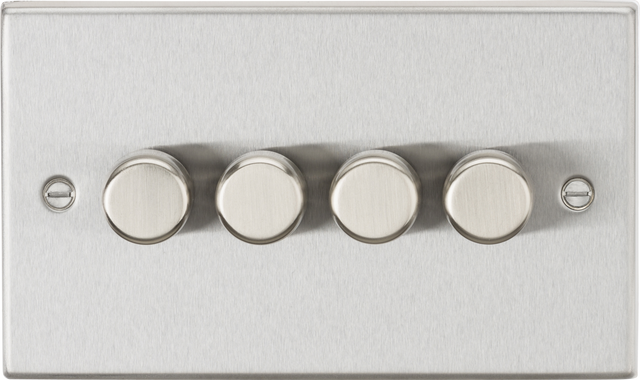

Knightsbridge: CS2194BC, 4G 2-Way Intelligent Dimmer Switch, Push On/Off, Trailing/Leading Edge, Brushed Chrome, 10-200W (5-150W LED)
About this product
The 4G 2-way Intelligent Dimmer in Brushed Chrome is the perfect finishing touch to any modern home. With a square edge metal design and matching metal cap, this dimmer not only delivers aesthetic appeal but also outstanding functionality.
- Switch between Trailing-edge and Leading-edge modes, making this a highly compatible dimmer solution.
- Trim, switch modes, and reset the dimmer all from the front of the plate via the control knob, future-proofing your installation.
- Push On/Off with a rotary dimming action for easier control.
- Rated for 10-200W (5-150W LED), suitable only for dimmable lamps.
- Includes overload and overheat protection for safety.
- Fitted with Inrush Current Limiter (ICL).
Important Notice: Do not use in a mixed environment with different brands or wattages of lamps in the same fitting.
Specifications
Dimensions
Wiring-accessories
Specifications
Class | I |
---|---|
Finish | Brushed Chrome |
IP Rating | IP20 |
Construction | 430 Stainless Steel |
Primary Voltage | 230V 50Hz |

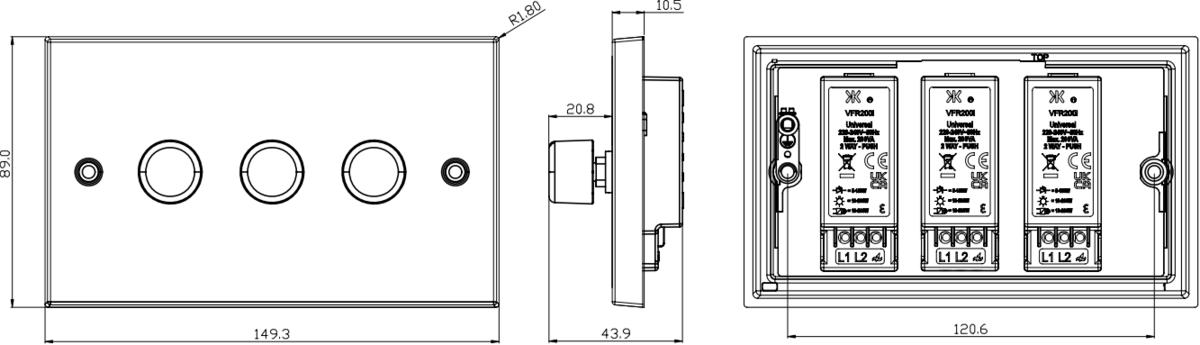

Dimensions
Depth | 43.9 mm |
---|---|
Width | 149.3 mm |
Height | 89 mm |
Projection | 31.3 mm |
Plate Depth | 10.5 mm |
Min. Mounting Box Depth | 25mm |
Wiring-accessories
Terminal | Screw |
---|---|
Earth Terminal | Yes |
4G 2-Way Intelligent Dimmer - Brushed Chrome features

Knightsbridge: CS2194BC, 4G 2-Way Intelligent Dimmer Switch, Push On/Off, Trailing/Leading Edge, Brushed Chrome, 10-200W (5-150W LED)
