Adastra: 952.282UK, Premium KV-T Series 100V Ceiling Speakers, 8 Inch, 40W, ABS, 105 dB
About this product
Premium KV-T series 100V Ceiling Speakers

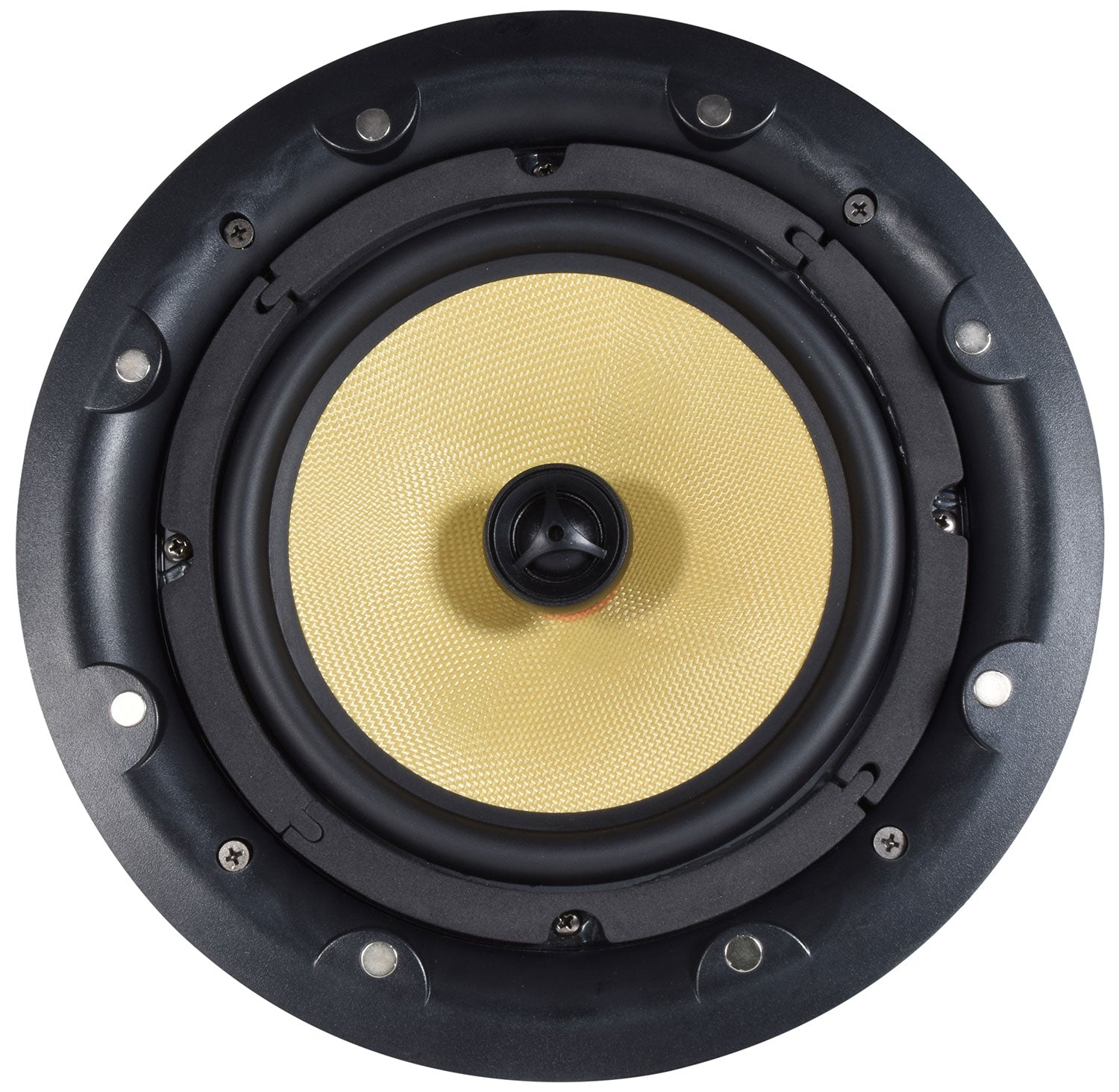

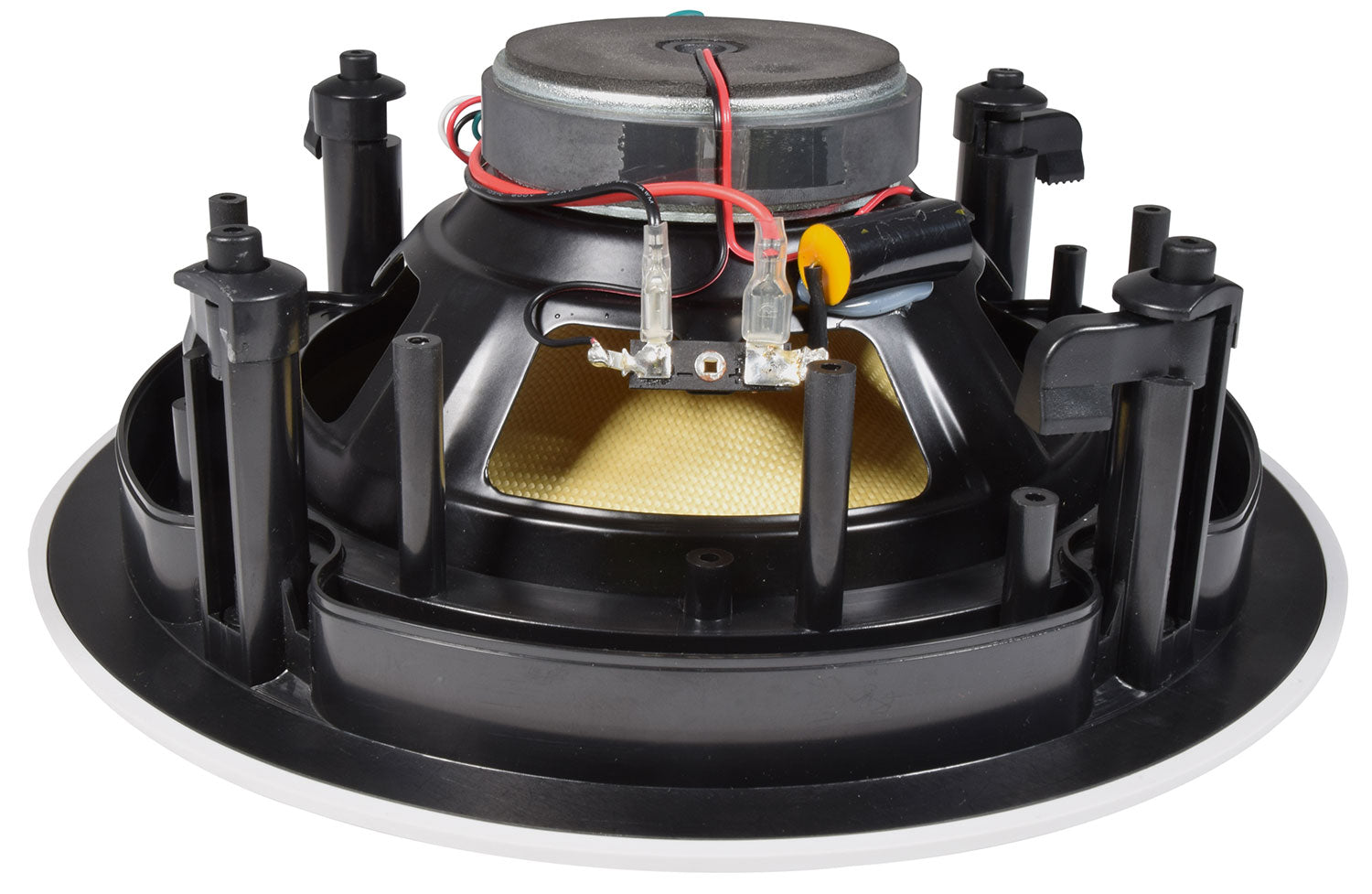

Premium quality ABS 2-way ceiling speakers with a magnetic frameless grille for high-quality music reproduction in a sleek design. High energy glass-aramid main drivers are combined with a coaxial dome tweeter and coupled to a wave guide baffle for optimum sound dispersion. Each KV-T speaker is fitted with a 100V transformer with selectable volume tappings. High performance ceiling speakers that integrate with 100V voice and background music systems.
- 3 x 100V volume tappings via 4-core cable
- 8 Ohm optional (bypass transformer)

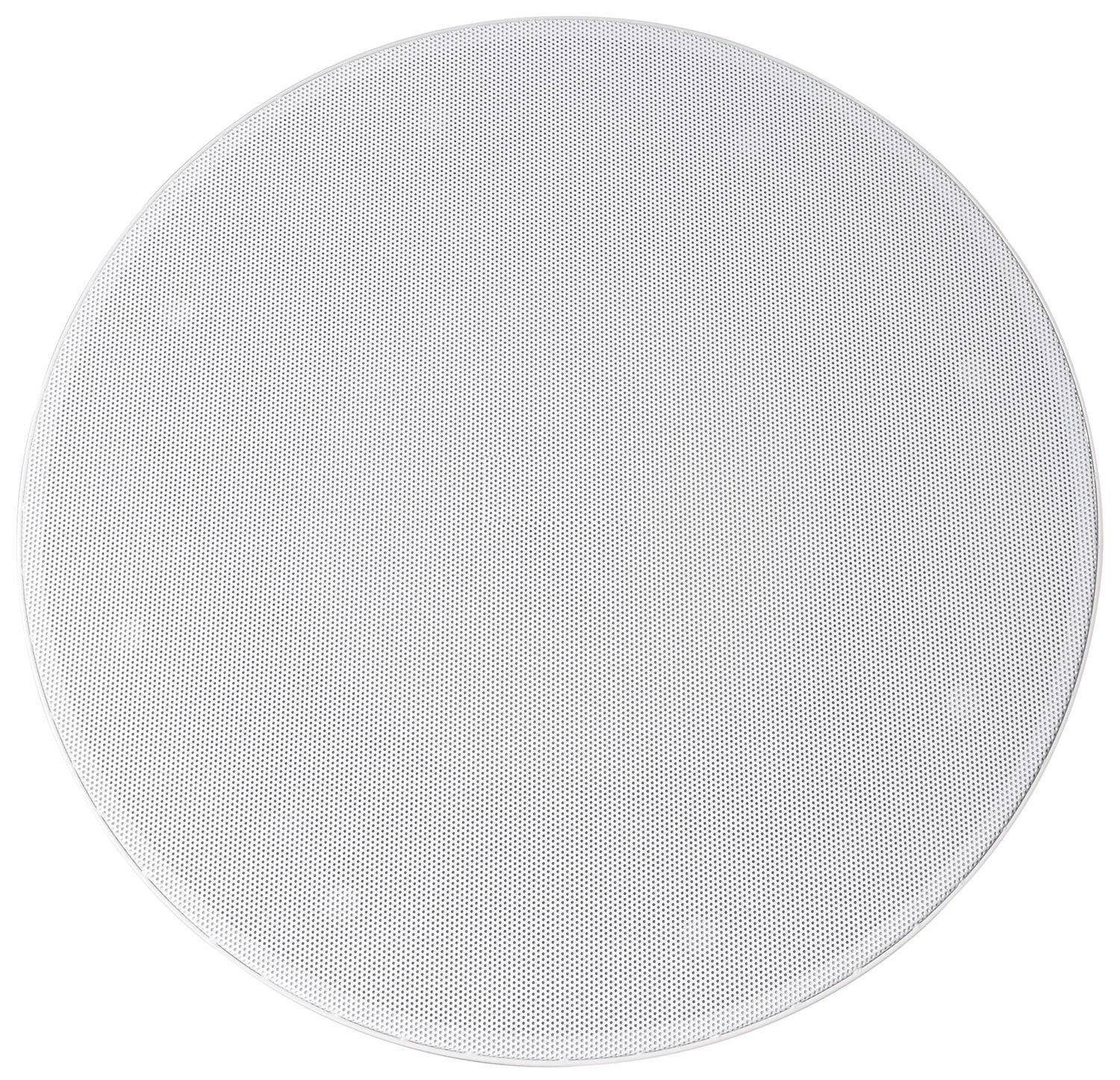

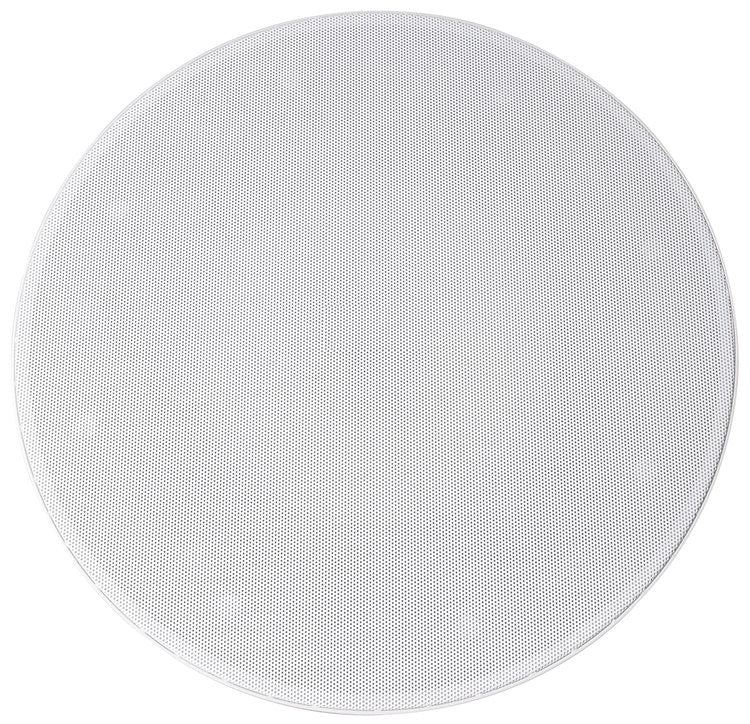

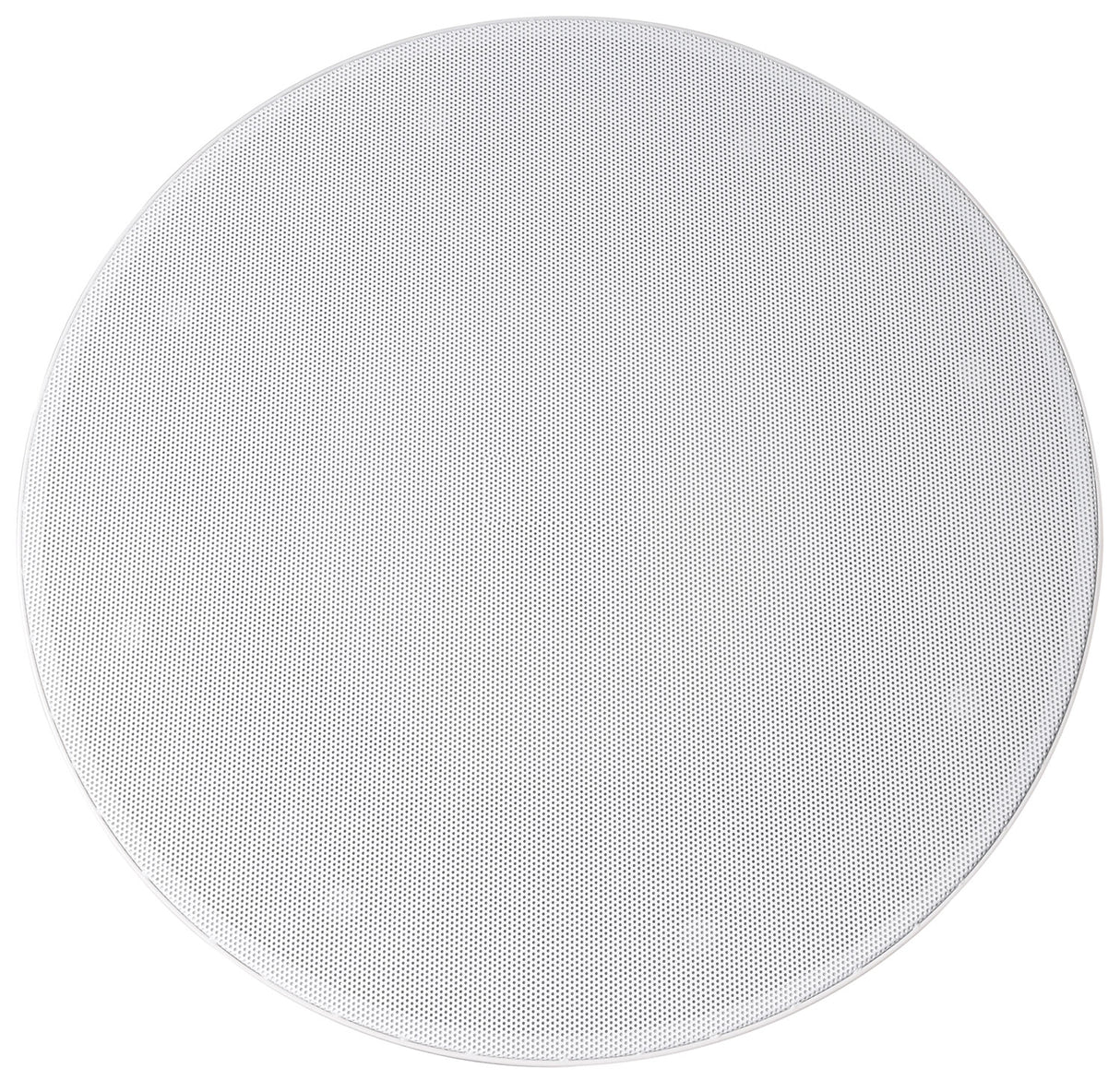

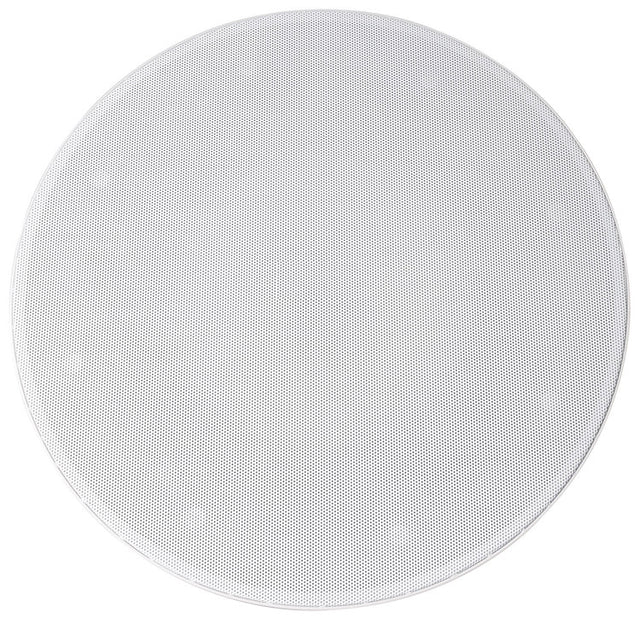

- Magnetic low profile steel grille
- Heavy duty glass-aramid cone
- Supplied individually
Specifications
Specifications
Cutout | 255 mm |
---|---|
Max SPL | 105 dB |
Tappings | 10W, 20W, 40W & 8 Ohms (80W) |
HF Driver | 25 mm (1 inch) ASV diaphragm |
Impedance | 250, 500, 1.3 k Ohms or 8 Ohms |
SPL @ 1W/1m | 90 dB |
Construction | ABS basket & powder coated steel grille |
Magnet Weight | 465 g |
Mounting Depth | 110 mm |
Dispersion Angle | 120° |
Frequency Response | 50 Hz - 20 kHz |
KV-T Series 100V 8" Ceiling Speaker features
