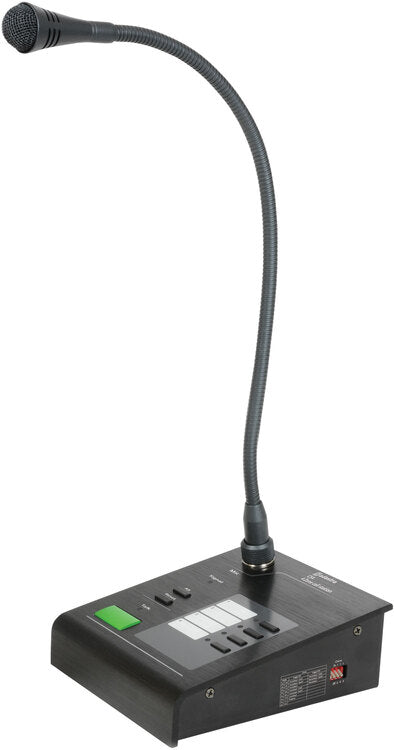

Adastra: 953.146UK, Call Station for RM244V Mixer Amplifier, 4-Zone Paging, 8 Selectable Chimes, RJ45 Connection, 0.67 kg

Product Overview & Key Benefits

The Call Station for the RM244V Mixer Amplifier is an essential component designed for seamless audio communication in various environments. This paging microphone not only integrates effortlessly with RM244V or RM4460 mixer-amps, but it also simplifies cabling with its RJ45 connector for both power and signal. Ideal for settings that require efficient zone communication, it offers significant benefits such as the ability to communicate with one or all zones, 8 selectable chimes for engagement, and an easy-to-use interface that enhances operational efficiency. Whether you are in a school, hospital, retail space, or a large office, this device makes paging simple and effective.

Technical Specifications & Product Details

• Weight:670g
• Capsule:Back electret condenser

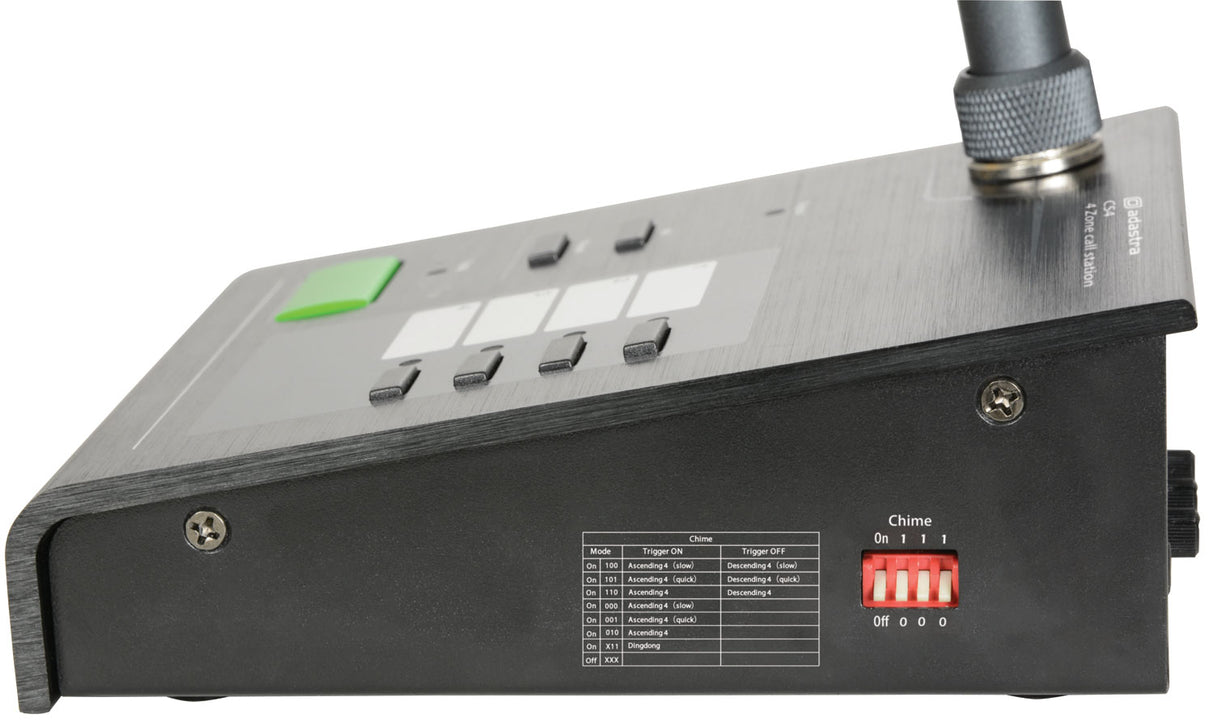

• Controls:Aux/Mic/Chime levels, chime DIP switches, zone/page buttons
• Interface:RS-485 control
• S/N Ratio:-60dB (all channels selected)
• Connectors:RJ45 to amplifier, 24Vdc power jack, 3.5mm aux in
• Dimensions:460 x 140 x 115mm
• Input Level:Mic: -46dBV, Aux: -10dBV
• Zone Assign:4 zones or all selectable
• Output Level:10dBV
• Power Supply:24Vdc, 500mA from RJ45 or optional adaptor
• Polar Pattern:Cardioid
• Input Impedance:Mic: 600 Ohms, Aux: 50k Ohms
• Max. Connection Length:100m (CAT5 cable) or 1km with optional 24Vdc adaptor
• Frequency Response: -3dB:150Hz - 22kHz
• Output Impedance: Balanced:600 Ohms

Ideal Uses & Applications

This Call Station is perfect for various environments where clear and effective communication is key. Common applications include:

• Schools:For public address systems to inform students and staff.
• Hospitals:Used for paging within different departments, aiding in quick communication.
• Retail Spaces:Facilitating announcements for customers and staff.
• Large Offices:Enhancing communication in broader workspaces, ensuring everyone is kept in the loop.
• Events:Appropriate for conferences and gatherings where information dissemination is critical.

Energy Efficiency & Cost Savings

This Call Station for the RM244V Mixer Amplifier not only aids in efficient communication but also promotes energy efficiency. By enabling seamless communication across multiple zones without the need for additional equipment, it reduces potential energy expenditure related to complex audio setups. Utilising a 24Vdc power supply, it is designed to operate efficiently, ensuring lower operating costs and contributing to an eco-friendly environment. This translates to potential savings, as streamlined systems inherently consume less power and reduce overall electricity bills.
