Adastra: 953.201UK, RS Series 100V Line Slave Amplifier, 120W Class-D, Rack-Mountable

Product Overview & Key Benefits

TheRS Series 100V Line Slave Amplifiersare high-performance, class-D amplifiers designed for efficient audio amplification in medium to large installations. These amplifiers are ideal for both commercial and domestic settings, serving as slave units to extend your existing audio systems seamlessly. With their robust build and high power output, they cater to diverse applications where quality sound and reliability are paramount.

Technical Specifications & Product Details

• Power Output: 120W RMS
• Total Harmonic Distortion (THD): <1.0%
• Weight: 4.8kg
• Dimensions: 433 x 267 x 44mm (1U)

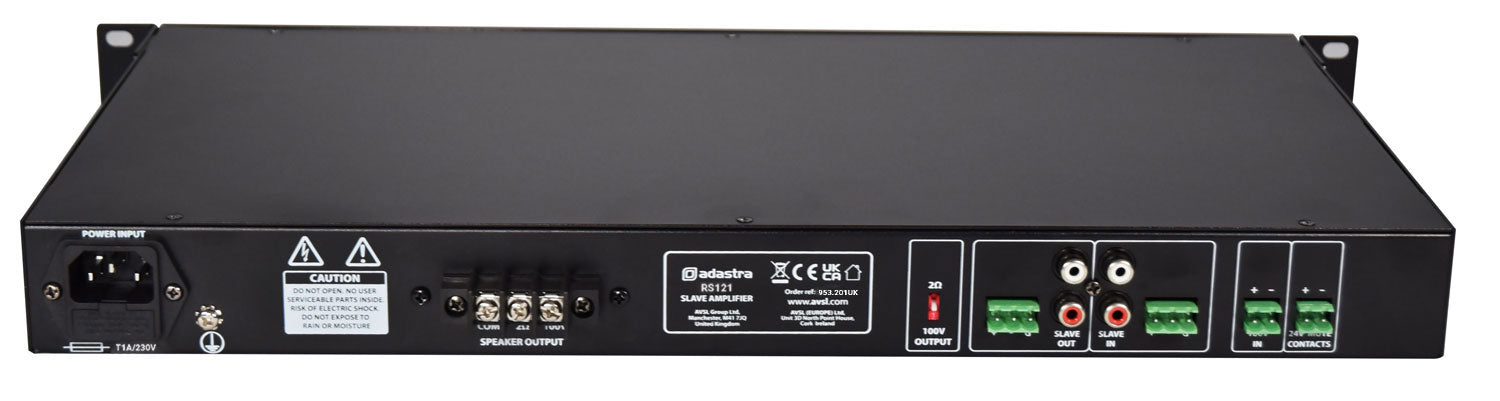

• Input Signal: Slave line in (RCA or screw terminal), 100V in (screw terminal)
• Output Signal: Slave line out (RCA or screw terminal)
• Speaker Outputs: 100V or stable down to 2 Ohms (screw terminals)
• Frequency Response: 90Hz-20kHz (100V), 17Hz-90kHz (2Ω)
• Power Supply: 175-264Vac 50Hz (IEC)
• Controls: Master volume
• Fuse Rating: T1A
• Mute Functionality: 24V alarm contacts (screw terminal)
• Design: Rack-mountable 19” format, compact size

Ideal Uses & Applications

TheRS Series 100V Line Slave Amplifiersare exceptionally versatile and can be employed in various environments, including:

• Commercial Buildings: Perfect for retail spaces, restaurants, and conference centres requiring background music or public address systems.
• Hospitality Settings: Ideal for hotels and event venues looking to enhance audio experience during functions and events.
• Office Environments: Helps create an effective auditory environment for announcements or presentations.
• Domestic DIY Projects: A suitable choice for home audio systems, allowing for a professional sound setup without the need for extensive wiring.

Energy Efficiency & Cost Savings

Designed with energy efficiency in mind, theRS Series 100V Line Slave Amplifiersnot only deliver superior performance, but they also contribute to significant cost savings. Users can expect to reduce their electricity consumption by utilising class-D technology, which is known for its high efficiency when compared to traditional amplification methods. This means you can enjoy high-quality audio while potentially saving up to 50% on electricity bills compared to older systems.

In conclusion, the RS Series 100V Line Slave Amplifiers combine powerful audio capabilities with energy-efficient design, making them an excellent choice for a variety of installations. They are built to deliver clear sound while remaining accommodating to user needs, whether for commercial or personal use.
